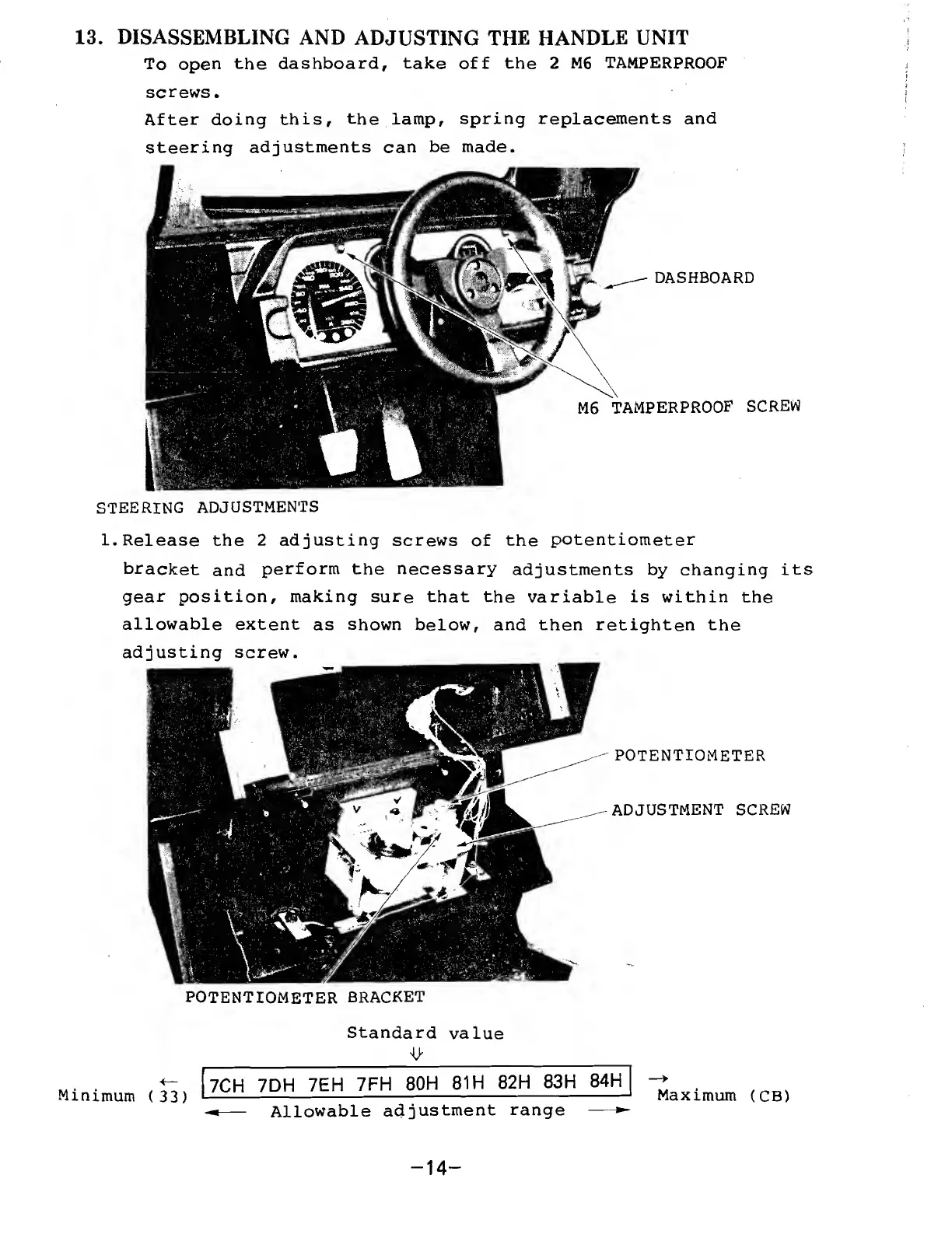

13. DISASSEMBLING
AND
ADJUSTING THE HANDLE
UNIT
To open
the
dashboard, take off the 2
M6 TAMPERPROOF
screws.
After
doing this,
the lamp,
spring replacements and
steering
adjustments can
be made.
DASHBOARD
M6
TAMPERPROOF
SCREW
STEERING
ADJUSTMENTS
1
.Release
the
2 adjusting screws
of the
potentiometer
bracket
and
perform
the
necessary
adjustments by changing
its
gear position, making
sure
that
the variable is within
the
allowable extent
as shown below, and
then retighten the
adjusting screw.
POTENTIOMETER
ADJUSTMENT
SCREW
POTENTIOMETER
BRACKET
Standard
value
it'
Minimum
(
33
)
7CH
7DH
7EH
7FH
80H
81 H
82H
83H
84H
Allowable
adjustment
range
Maximum
(CB)
-
14
-
