Sega OutRun User Manual

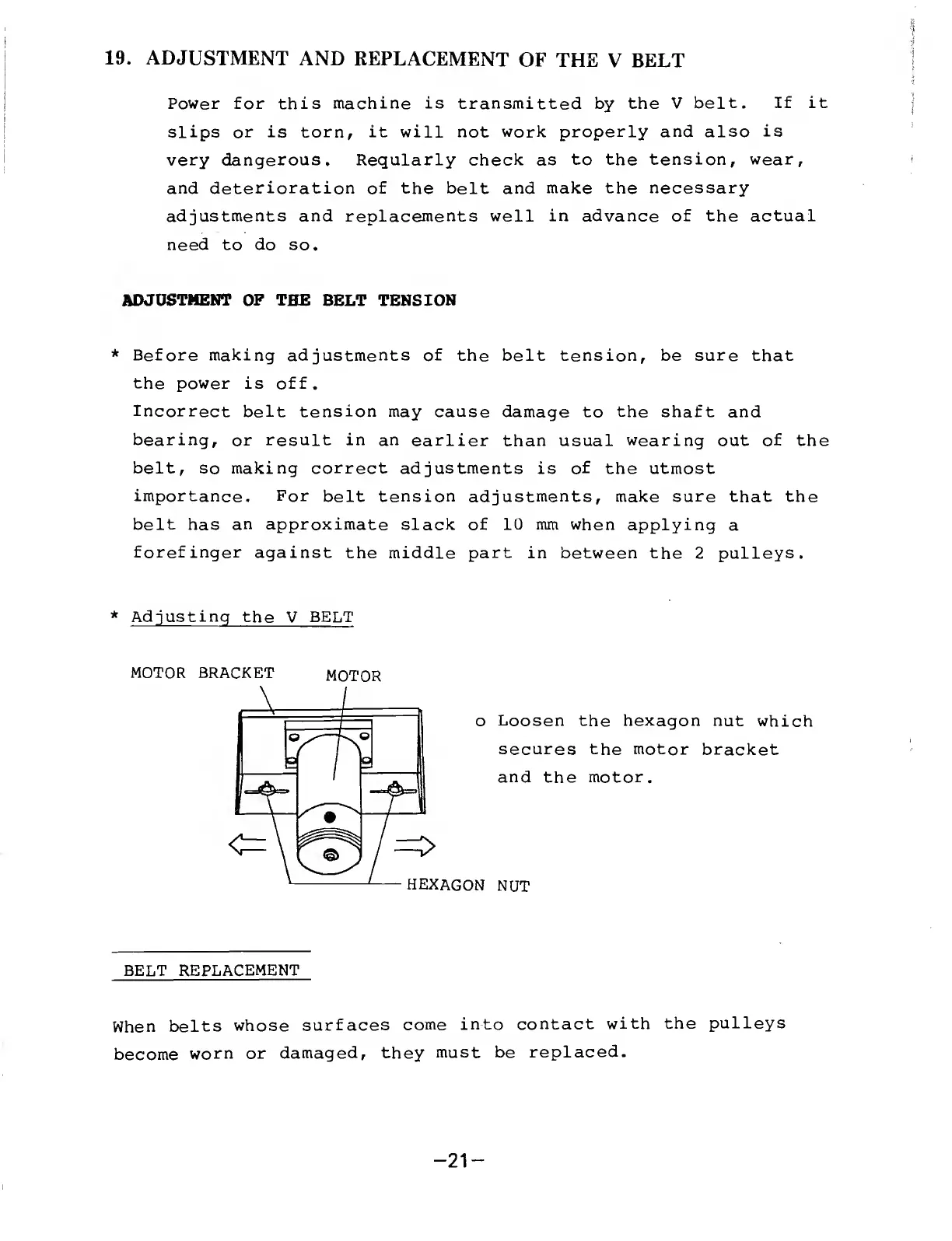

19.
ADJUSTMENT
AND
REPLACEMENT
OF THE
V BELT
Power for this machine
is
transmitted by
the V
belt. If it
slips or is torn, it
will
not work
properly
and also
is
very dangerous. Reqularly check as
to the tension, wear,
and deterioration
of
the
belt
and make
the necessary
adjustments and
replacements
well
in
advance of the actual
need to do so.
ADJUSTMENT
OP
THE
BELT
TENSION
*
Before making
adjustments of the belt tension, be sure that
the power is off.
Incorrect
belt
tension may
cause damage to the shaft and
bearing,
or
result in an
earlier
than
usual wearing out of the
belt,
so
making correct adjustments
is
of the
utmost
importance.
For
belt tension adjustments, make sure that the
belt has
an approximate
slack of
10 mm
when applying
a
forefinger
against
the middle
part
in between
the
2
pulleys.
*
Adjusting
the V
BELT
MOTOR BRACKET
MOTOR
Loosen
the
hexagon nut
which
secures the motor
bracket
and
the
motor.
NUT
BELT
REPLACEMENT
When
belts
whose
surfaces
come
into contact
with the
pulleys
become
worn
or
damaged,
they
must be
replaced.
-
