Sega OutRun User Manual

16.

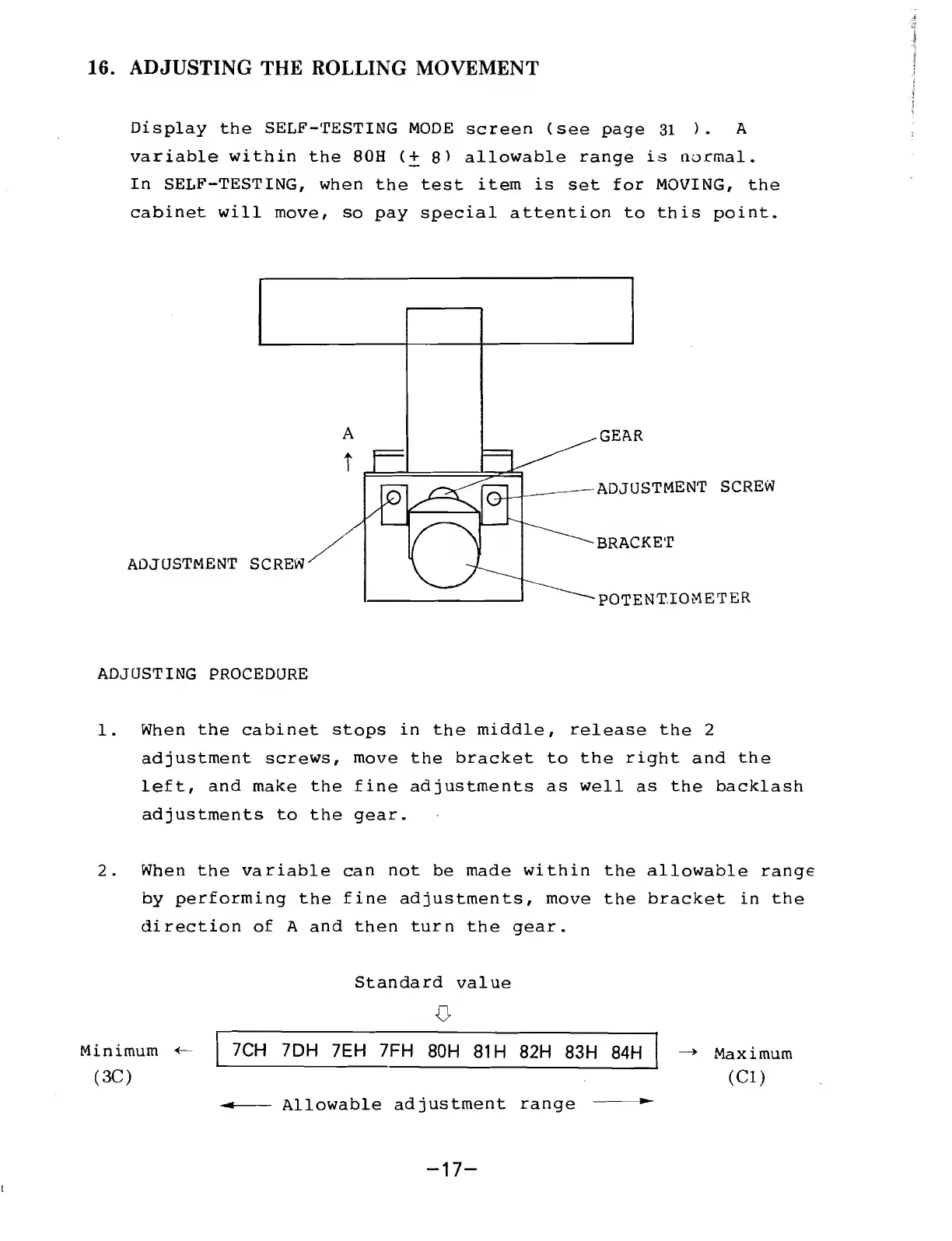

ADJUSTING THE
ROLLING MOVEMENT
1
r
f
.1
i
|
Display
the
SELF-TESTING MODE
screen (see
page
31
) .
A
variable
within
the 80H
(+
8)
allowable range
is normal.
In
SELF-TESTING,
when
the test item is
set
for MOVING,
the
cabinet will
move, so
pay
special attention to this point.
ADJUSTING
PROCEDURE
1.
When
the cabinet stops in
the
middle, release
the 2
adjustment screws, move the bracket to the
right
and
the
left, and make the fine
adjustments
as
well
as the backlash
adjustments to
the gear.
2.
When the variable can not
be
made
within
the allowable range
by
performing
the fine adjustments, move
the
bracket
in
the
direction of A and then
turn
the gear.
Standard
value
Minimum
(3C)
o
7CH
7DH 7EH 7FH
80H
81 H 82H
83H
84H
Allowable
adjustment
range
Maximum
(Cl)
t
-
17
-
