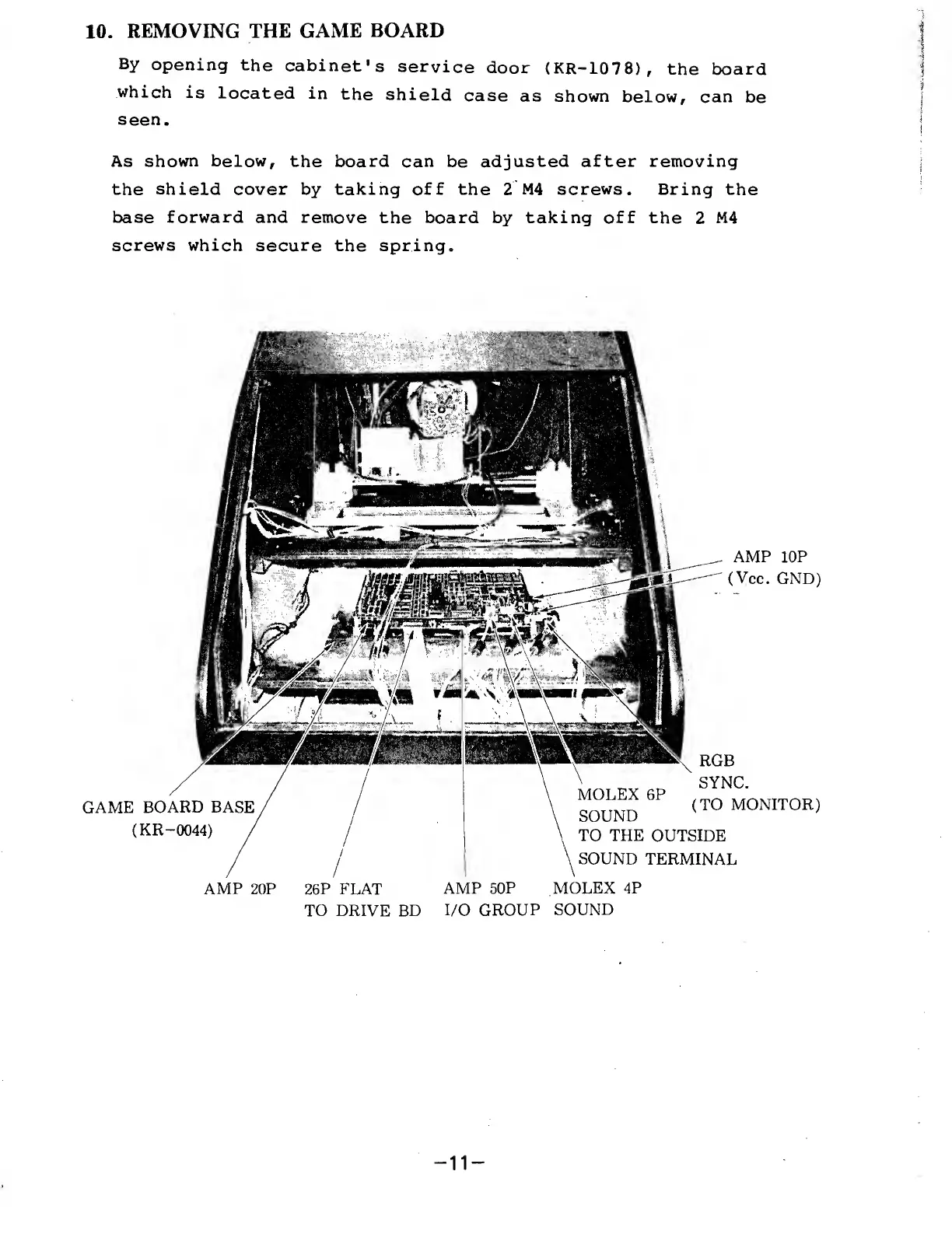

10.
REMOVING
THE GAME
BOARD
By
opening
the
cabinet's
service
door
(KR-1078),
the board
which
is
located in
the
shield
case
as
shown
below,
can be
seen.
As shown below, the board
can be
adjusted after removing
the shield cover by taking off the
2
M4 screws. Bring the
base forward and
remove the board by taking off the
2
M4
screws which
secure the spring.
AMP 10P
(Vcc.
GND)
GAME
BOARD BASE
(KR-0044)
AMP 20P
MOLEX 6P
SOUND
TO THE
OUTSIDE
SOUND
TERMINAL
RGB
SYNC.
(TO
MONITOR)
26P FLAT
AMP
50P MOLEX 4P
TO DRIVE BD
I/O GROUP
SOUND
-
11
-
