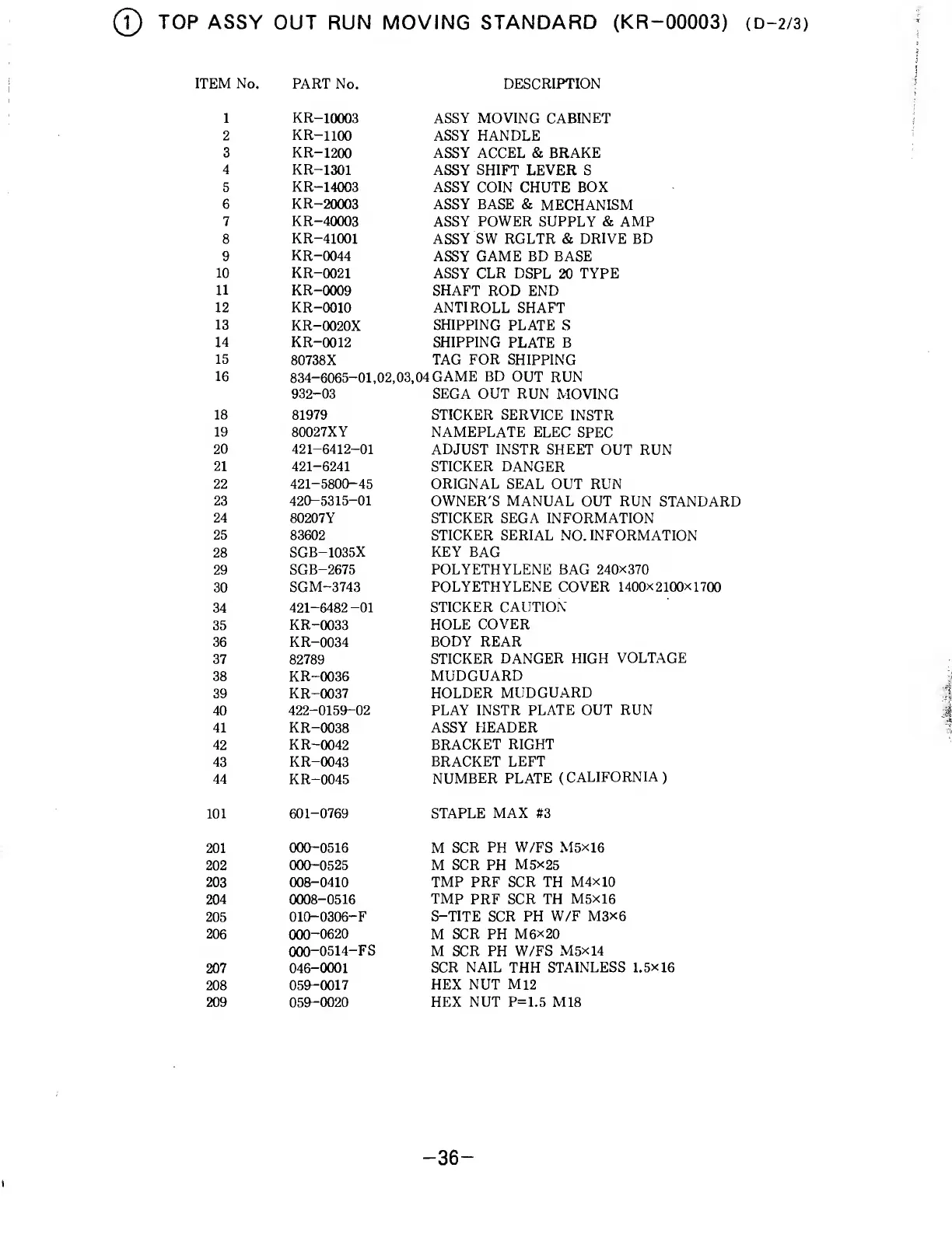

Sega OutRun User Manual

®
TOP
ASSY
OUT
RUN MOVING STANDARD
(KR-00003) (D-2/3)
ITEM No.
PART No. DESCRIPTION
1
KR-10003
ASSY MOVING
CABINET
2
KR-1100
ASSY HANDLE
3 KR-1200
ASSY ACCEL & BRAKE
4
KR-1301
ASSY SHIFT LEVER
S
5
KR-14003
ASSY COIN CHUTE BOX
6
KR-20003
ASSY BASE
&
MECHANISM
7
KR-40003
ASSY POWER SUPPLY &
AMP
8 KR-41001
ASSY SW RGLTR &
DRIVE BD
9
KR—0044
ASSY GAME BD BASE
10 KR—
0021 ASSY CLR DSPL
20
TYPE
11
KR-0009
SHAFT
ROD END
12
KR-0010
ANTI
ROLL SHAFT
13
KR-0020X
SHIPPING
PLATE
S
14 KR—
0012 SHIPPING
PLATE B
15
80738X
TAG
FOR
SHIPPING
16
834-6065-01,02, 03,04
GAME BD
OUT RUN
932-03
SEGA
OUT
RUN
MOVING
18 81979
STICKER SERVICE
INSTR
19 80027XY
NAMEPLATE ELEC
SPEC
20
421-6412-01
ADJUST INSTR SHEET
OUT RUN
21
421-6241
STICKER
DANGER
22
421-5800-45
ORIGNAL SEAL
OUT RUN
23
420-5315-01
OWNER'S MANUAL
OUT RUN
STANDARD
24
80207
Y
STICKER SEGA INFORMATION
25
83602 STICKER SERIAL
NO. INFORMATION
28
SGB-1035X
KEY BAG
29
SGB-2675 POLYETHYLENE BAG
240x370
30
SGM-3743 POLYETHYLENE COVER
1400x2100x1700
34
421-6482
-01
STICKER
CAUTION
35
KR-0033
HOLE
COVER
36 KR—0034
BODY REAR
37 82789
STICKER
DANGER HIGH
VOLTAGE
38 KR-0036
MUDGUARD
39 KR-0037
HOLDER
MUDGUARD
40
422-0159-02
PLAY INSTR
PLATE OUT RUN
41 KR-0038 ASSY HEADER
42 KR—0042
BRACKET RIGHT
43 KR-0043
BRACKET LEFT
44
KR—0045
NUMBER
PLATE
(CALIFORNIA)
101
601-0769
STAPLE
MAX #3
201
000-0516
M SCR
PH W/FS
M5X16
202
000-0525
M SCR PH
M5X25
203
008-0410
TMP
PRF
SCR TH
M4xl0
204
0008-0516
TMP
PRF
SCR TH
M5xl6
205
010-
0306-
F
S-TITE
SCR
PH
W/F
M3x6
206
000-0620
M
SCR
PH
M6x20
000—
0514—FS
M SCR PH W/FS
M5xl4
207
046-0001
SCR NAIL
THH
STAINLESS
1.5x16
208
059-0017 HEX NUT
M12
209
059-0020
HEX NUT P=1.5
M18
\
-
36
-
