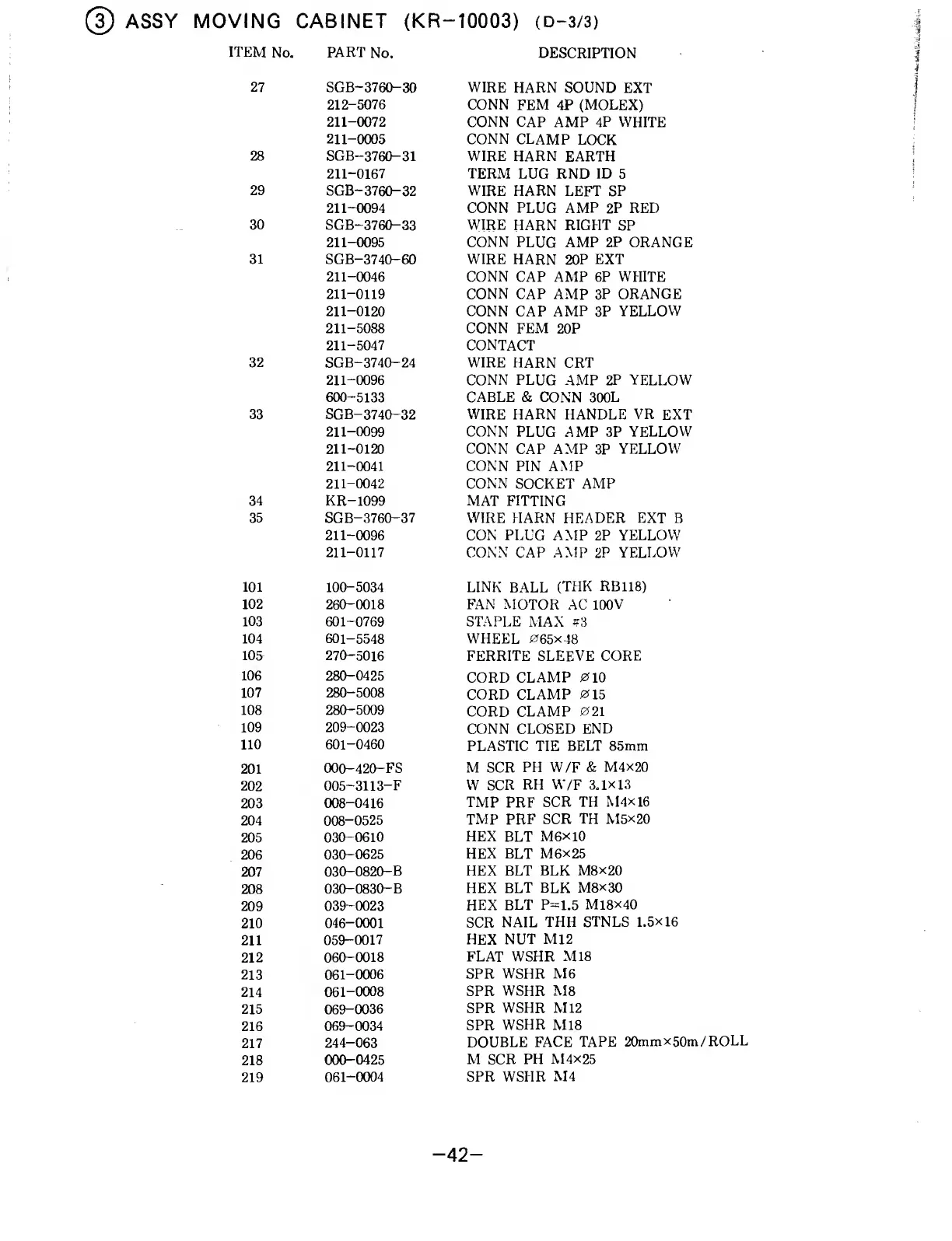

ASSY
MOVING CABINET
(KR-10003) (D-3/3)
ITEM
No.
PART
No. DESCRIPTION
27
SGB-3760-30 WIRE
HARN SOUND
EXT
212-5076
CONN FEM
4P
(MOLEX)
211-0072
CONN CAP
AMP
4P
WHITE
211-0005
CONN
CLAMP
LOCK
28 SGB-3760-31
WIRE HARN
EARTH
211-0167
TERM LUG RND ID
5
29
SGB—
3760-32
WIRE HARN LEFT SP
211-0094
CONN
PLUG AMP
2P RED
30
SGB—
3760-33
WIRE HARN
RIGHT
SP
211-0095
CONN
PLUG AMP
2P
ORANGE
31
SGB—
3740-60
WIRE
HARN 20P
EXT
211-0046
CONN
CAP AMP 6P
WHITE
211-0119
CONN
CAP AMP 3P
ORANGE
211-0120
CONN
CAP
AMP
3P
YELLOW
211-5088
CONN FEM
20P
211-5047
CONTACT
32
SGB-3740-24 WIRE HARN
CRT
211-0096
CONN PLUG
AMP
2P YELLOW
600-5133
CABLE & CONN 300L
33 SGB—
3740-32
WIRE HARN HANDLE VR
EXT
211-0099
CONN PLUG
AMP 3P
YELLOW
211-0120
CONN
CAP AMP
3P
YELLOW
211-0041
CONN
PIN
AMP
211-0042
CONN
SOCKET AMP
34 KR-1099
MAT FITTING
35
SGB-3760-37 WIRE HARN HEADER EXT B
211-0096
CON PLUG AMP
2P
YELLOW
211-0117
CONN CAP AMP 2P YELLOW
101
100-5034
LINK
BALL
(THK RBI
18)
102
260-0018
FAN
MOTOR AC
100V
103
601-0769
STAPLE
MAX
=3
104
601-5548
WHEEL
065x48
105
270-5016
FERRITE SLEEVE CORE
106
280-0425
CORD CLAMP 010
107
280-5008
CORD CLAMP
015
108
280-5009
CORD CLAMP
021
109
209-0023
CONN CLOSED
END
110
601-0460
PLASTIC TIE
BELT 85mm
201
000-420-FS
M SCR
PH W/F &
M4X20
202
005-
311
3-
F
W SCR
RH W/F
3.1x13
203
008-0416 TMP PRF
SCR
Til
M4xl6
204
008-0525
TMP PRF
SCR TH
M5x20
205
030-0610 HEX
BLT
M6X10
206
030-0625 HEX BLT
M6x25
207
030-0820-B HEX BLT
BLK
M8x20
208
030-0830-
B
HEX
BLT BLK
M8x30
209
039-0023
HEX
BLT P=1.5
M18X40
210
046-0001
SCR
NAIL THH
STNLS
1.5x16
211
059-0017
HEX NUT
M12
212
060-0018 FLAT WSHR M18
213
061-0006 SPR
WSHR M6
214
061-0008 SPR
WSHR M8
215
069-0036
SPR
WSHR M12
216
069-0034 SPR
WSHR
M18
217
244-063
DOUBLE
FACE
TAPE
20mmx50m/ROLL
218
000-0425 M SCR PH
M4X25
219
061-0004
SPR WSHR
M4
-
42
-
