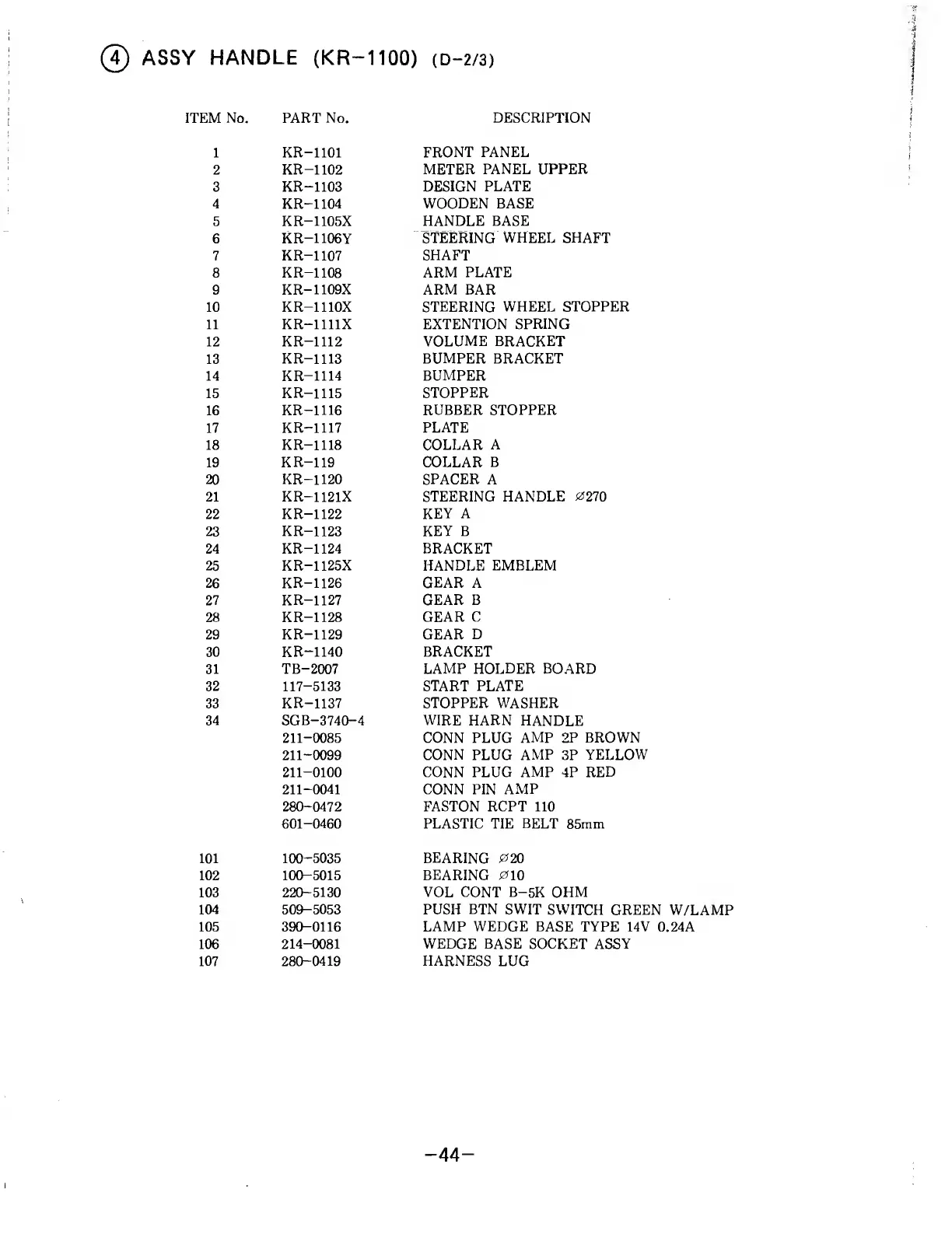

ASSY
HANDLE
(KR-1100)
(D-2/3)
ITEM
No.
PART
No. DESCRIPTION
1 KR-1101
FRONT PANEL
2 KR-1102
METER
PANEL
UPPER
3 KR—1103
DESIGN PLATE
4
KR-1104
WOODEN BASE
5 KR-1105X
HANDLE BASE
6 KR-1106Y
"
STEERING
WHEEL SHAFT
7 KR—1107
SHAFT
8 KR—1108 ARM
PLATE
9
KR-1109X
ARM BAR
10 KR-1110X STEERING
WHEEL STOPPER
11 KR-1111X
EXTENTION SPRING
12 KR-1112
VOLUME BRACKET
13
KR-1113 BUMPER BRACKET
14
KR—
1114
BUMPER
15
KR-1115 STOPPER
16 KR—
1116 RUBBER STOPPER
17 KR-1117
PLATE
18 KR-1118 COLLAR
A
19 KR—119 COLLAR
B
20
KR-1120
SPACER A
21 KR-1121X
STEERING HANDLE
0270
22 KR-1122
KEY A
23 KR—1123
KEY B
24 KR—1124 BRACKET
25
KR-1125X HANDLE
EMBLEM
26
KR-1126 GEAR
A
27 KR-1127 GEAR B
28 KR-1128
GEAR C
29 KR-1129 GEAR
D
30 KR-1140 BRACKET
31 TB—2007 LAMP HOLDER BOARD
32
117-5133
START PLATE
33
KR-1137 STOPPER WASHER
34 SGB-3740-4 WIRE HARN
HANDLE
211-0085
CONN PLUG
AMP
2P
BROWN
211-0099
CONN
PLUG
AMP
3P
YELLOW
211-0100
CONN PLUG
AMP
4P
RED
211-0041
CONN PIN
AMP
280-0472
FASTON RCPT 110
601-0460
PLASTIC TIE
BELT
85rnm
101
100-5035
BEARING
020
102
100-5015
BEARING 010
103
220-5130
VOL CONT B-5K
OHM
104
509-5053
PUSH
BTN SWIT
SWITCH GREEN W/LAMP
105
390-0116
LAMP WEDGE BASE TYPE 14V
0.24A
106
214-0081
WEDGE BASE SOCKET ASSY
107
280-0419
HARNESS
LUG
-
44
-

Sega OutRun Specifications

General

Developer	Sega AM2
Publisher	Sega
Release Year	1986
Platform	Arcade
Genre	Racing
Cabinet	Upright, Sit-down
Sound	Stereo
Sound Chip	Yamaha YM2151, SegaPCM
Resolution	256 x 224 pixels
Orientation	Horizontal
Players	1
Storage	ROM
Display	Raster
Controls	Steering wheel, gear shift, accelerator pedal
CPU	Motorola 68000
