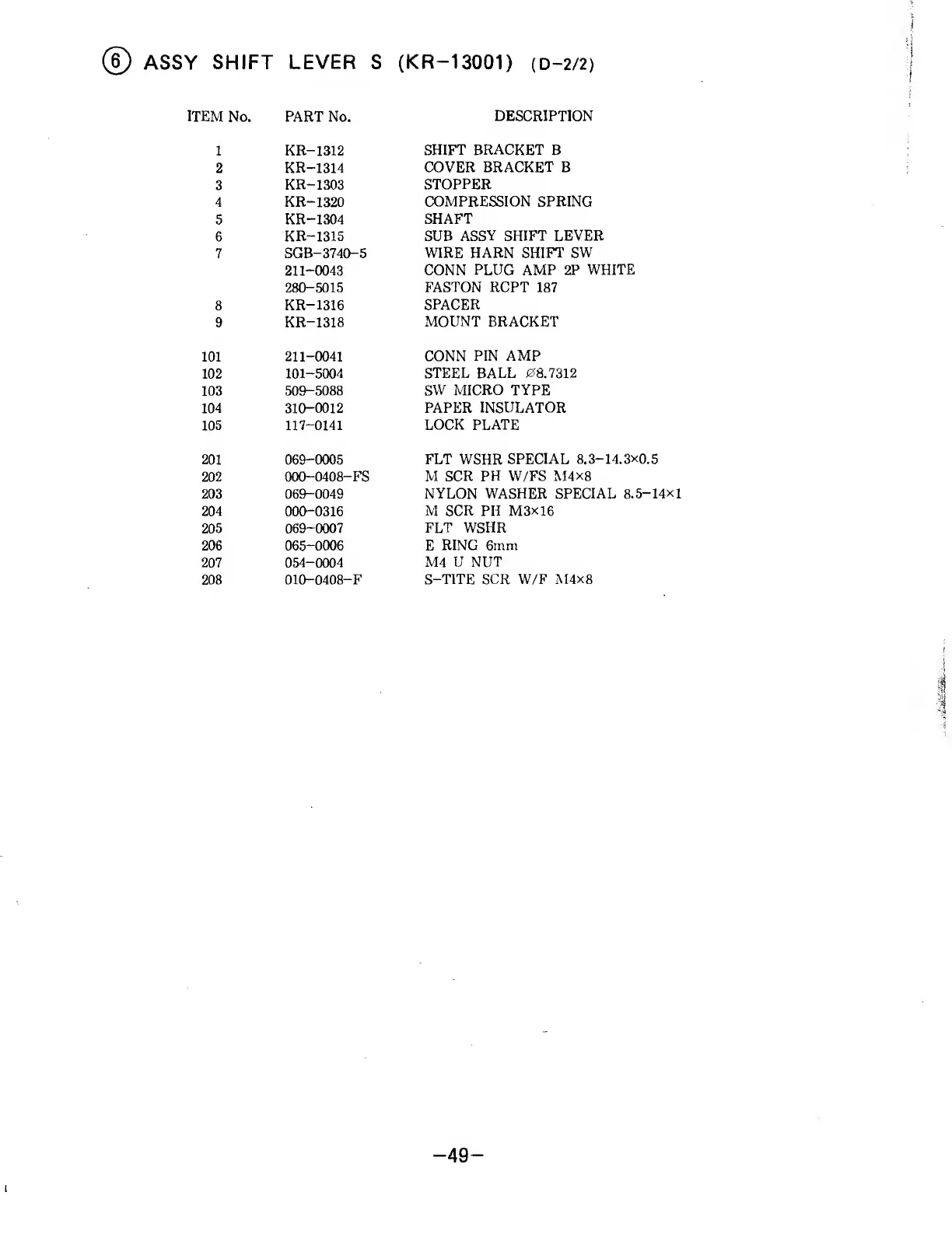

Sega OutRun User Manual

©
ASSY
SHIFT
LEVER
S
(KR-13001)
(D-2/2)
ITEM
No.
PART No.
DESCRIPTION
1 KR—1312
SHIFT BRACKET
B
2
KR-1314
COVER BRACKET B
3
KR-1303
STOPPER
4 KR-1320
COMPRESSION SPRING
5
KR—1304
SHAFT
6
KR-1315 SUB
ASSY SHIFT LEVER
7 SGB-3740-5
WIRE
HARN
SHIFT SW
211-0043
CONN
PLUG AMP 2P
WHITE
280-5015 FASTON
RCPT 187
8 KR—1316
SPACER
9 KR—
1318
MOUNT BRACKET
101
211-0041
CONN
PIN
AMP
102
101-5004 STEEL BALL 08.7312
103
509-5088
SW
MICRO TYPE
104
310-0012
PAPER
INSULATOR
105
117-0141 LOCK PLATE
201
069-0005
FLT WSHR
SPECIAL
8.3-14.3x0.5
202
000—
0408-FS M
SCR PH W/FS
M4X8
203
069-0049
NYLON WASHER
SPECIAL
8.5-14x1
204
000-0316
M SCR PII
M3xl6
205
069-0007 FLT WSHR
206
065-0006
E
RING 6mm
207
054-0004 M4 U NUT
208
010—
0408—
F
S-TITE SCR W/F
M4x8
-
49
-
l
