Sega OutRun User Manual

@

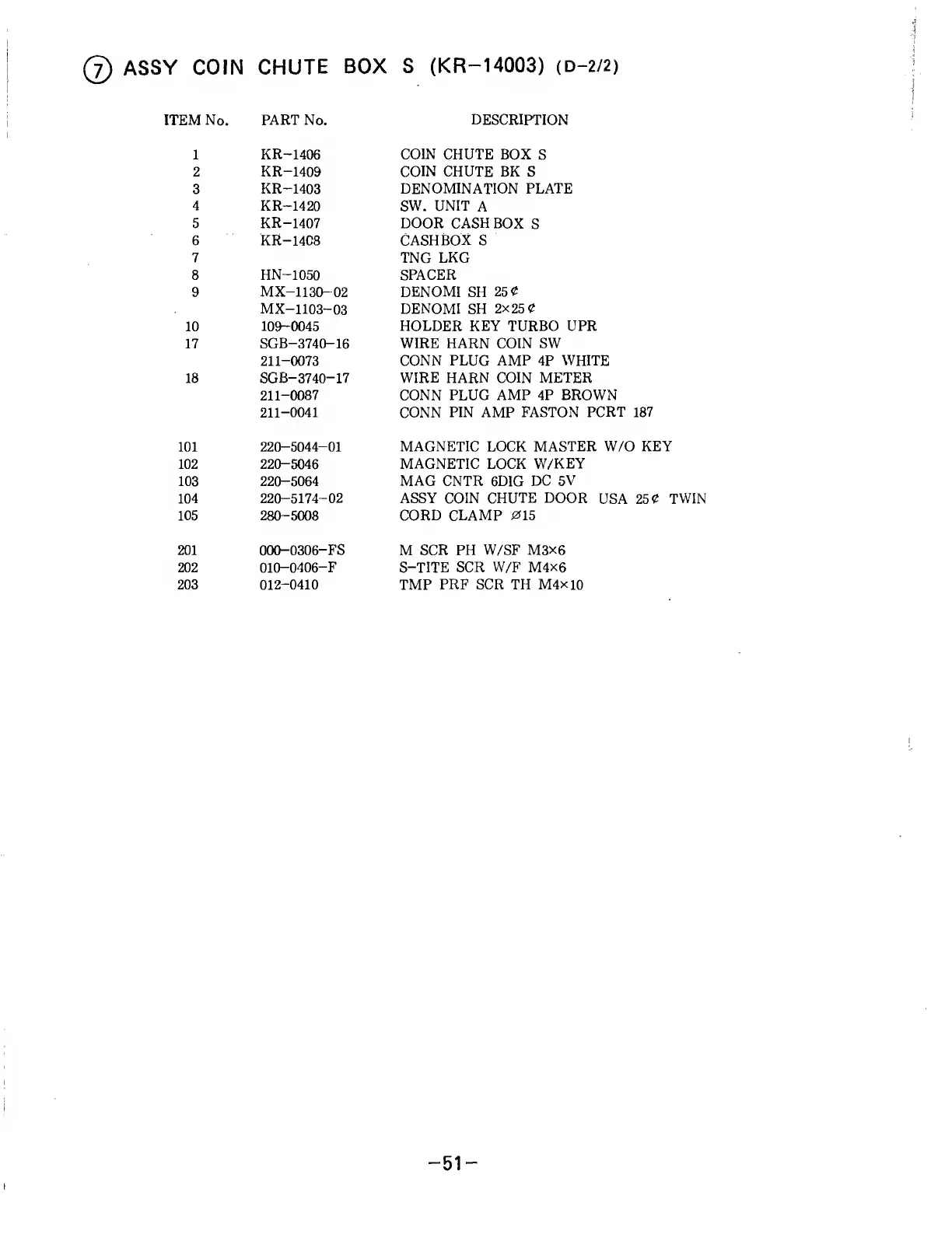

ASSY
COIN
CHUTE
BOX
S
(KR-14003)
(D-2/2)
ITEM No.
PART No. DESCRIPTION
1
KR-1406 COIN
CHUTE BOX
S
2 KR-1409 COIN CHUTE BK
S
3
KR-1403 DENOMINATION PLATE
4
KR—1420 SW. UNIT
A
5 KR-1407 DOOR CASH BOX
S
6 KR-14C8 CASH BOX S
7
TNG
LKG
8
HN-1050
SPACER
9
MX-1130—
02
DENOMI
SH
25
0
MX—
1103—
03
DENOMI SH
2x25
0
10
109-0045
HOLDER KEY TURBO UPR
17
SGB-3740-16 WIRE HARN COIN SW
211-0073
CONN PLUG AMP 4P
WHITE
18 SGB-
3740-17
WIRE HARN COIN METER
211-0087
CONN PLUG AMP 4P BROWN
211-0041
CONN
PIN AMP FASTON
PCRT 187
101
220-5044-01
MAGNETIC
LOCK
MASTER W/O KEY
102
220-5046
MAGNETIC
LOCK
W/KEY
103
220-5064 MAG
CNTR 6DIG
DC
5V
104
220-5174-02
ASSY COIN CHUTE
DOOR
USA 25
0 TWIN
105
280-5008
CORD CLAMP
015
201 000-0306-FS
M SCR
PH
W/SF
M3x6
202 010-0406-F S-TITE SCR
W/F
M4x6
203
012-0410
TMP
PRF SCR TH
M4xl0
-
51
-

Sega OutRun Specifications

General

Developer	Sega AM2
Publisher	Sega
Release Year	1986
Platform	Arcade
Genre	Racing
Cabinet	Upright, Sit-down
Sound	Stereo
Sound Chip	Yamaha YM2151, SegaPCM
Resolution	256 x 224 pixels
Orientation	Horizontal
Players	1
Storage	ROM
Display	Raster
Controls	Steering wheel, gear shift, accelerator pedal
CPU	Motorola 68000
