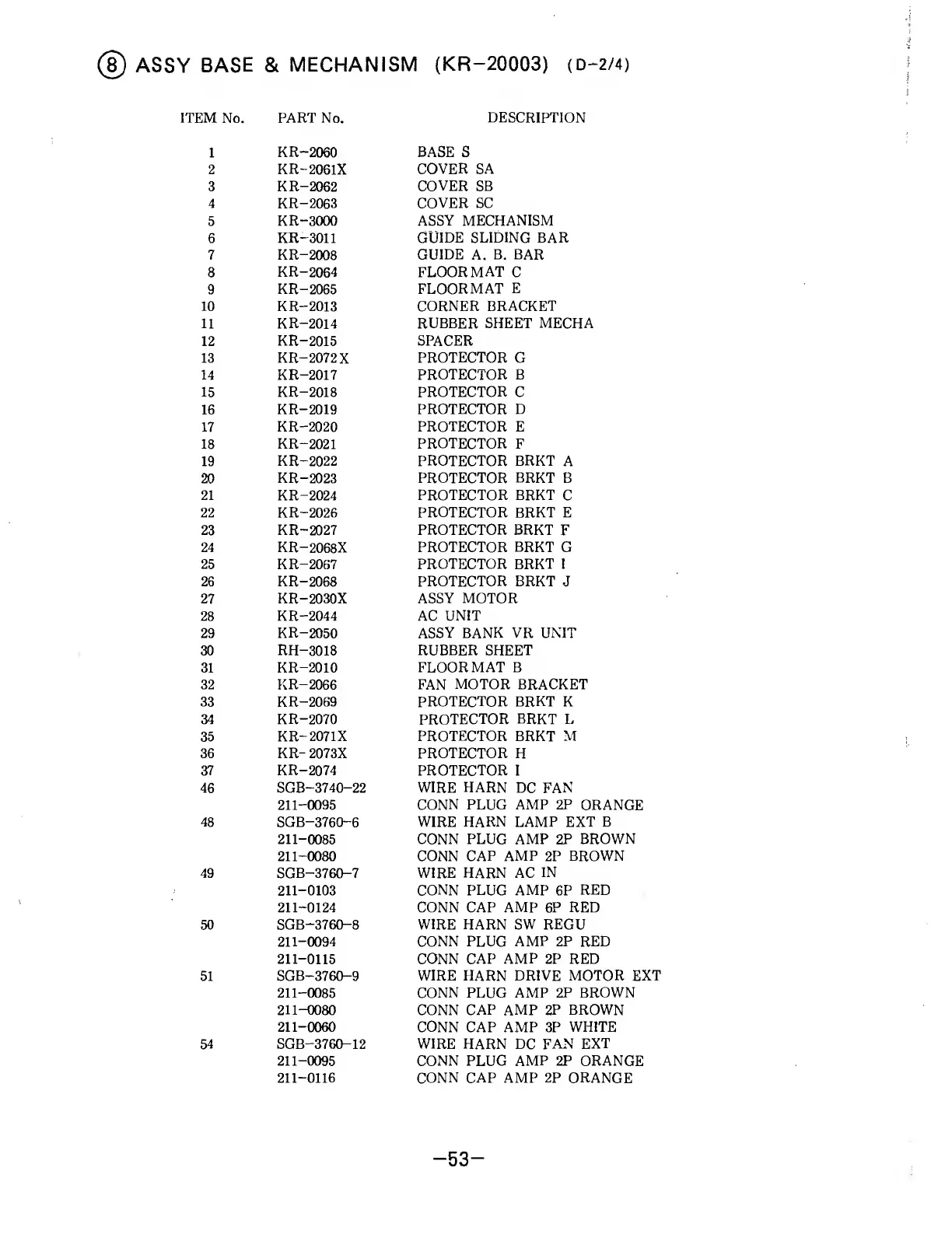

Sega OutRun User Manual

®
ASSY
BASE
&
MECHANISM
(KR-20003)
(D-2/4)
ITEM
No.
PART No.
DESCRIPTION
1
KR—
2060
BASE
S
2 KR-2061X
COVER SA
3 KR-2062
COVER SB
4
KR—2063
COVER SC
5
KR-3000 ASSY
MECHANISM
6 KR—3011
GUIDE SLIDING BAR
7 KR-2008
GUIDE
A.
B. BAR
8
KR-2064
FLOOR
MAT
C
9
KR-2065 FLOOR
MAT
E
10
KR—2013 CORNER
BRACKET
11 KR-2014 RUBBER SHEET MECHA
12
KR-2015 SPACER
13
KR-2072X
PROTECTOR
G
14 KR—2017
PROTECTOR B
15 KR-2018
PROTECTOR
C
16
KR-2019 PROTECTOR
D
17
KR-2020 PROTECTOR E
18 KR-2021
PROTECTOR
F
19
KR—
2022
PROTECTOR BRKT
A
20
KR-2023 PROTECTOR
BRKT
B
21
KR-2024
PROTECTOR BRKT
C
22
KR-2026
PROTECTOR BRKT E
23 KR-2027 PROTECTOR BRKT
F
24 KR-2068X PROTECTOR
BRKT
G
25
KR-2067
PROTECTOR BRKT I
26 KR-2068 PROTECTOR BRKT
J
27 KR-2030X ASSY
MOTOR
28 KR-2044 AC
UNIT
29
KR-2050
ASSY BANK
VR
UNIT
30 RH-3018 RUBBER SHEET
31 KR-2010
FLOOR MAT B
32 KR—
2066
FAN
MOTOR
BRACKET
33
KR—
2069 PROTECTOR BRKT K
34 KR-2070 PROTECTOR
BRKT L
35
KR-2071X PROTECTOR BRKT M
36 KR- 2073X PROTECTOR
H
37
KR-2074
PROTECTOR I
46 SGB-3740-22
WIRE HARN
DC FAN
211-0095
CONN PLUG AMP 2P
ORANGE
48
SGB-3760-6
WIRE HARN LAMP EXT B
211-0085
CONN PLUG AMP
2P
BROWN
211-0080
CONN
CAP AMP
2P
BROWN
49 SGB—
3760-7
WIRE HARN AC
IN
211-0103
CONN PLUG AMP 6P
RED
211-0124
CONN CAP AMP 6P RED
50 SGB—
3760-8
WIRE
HARN SW
REGU
211-0094
CONN PLUG
AMP
2P RED
211-0115
CONN CAP
AMP
2P RED
51
SGB-3760-9 WIRE HARN DRIVE MOTOR EXT
211-0085
CONN PLUG AMP 2P
BROWN
211-0080
CONN CAP AMP 2P BROWN
211-0060
CONN
CAP AMP 3P
WHITE
54 SGB-3760-12
WIRE
HARN DC FAN
EXT
211-0095
CONN PLUG AMP 2P ORANGE
211-0116
CONN CAP AMP
2P
ORANGE
-
53
-
