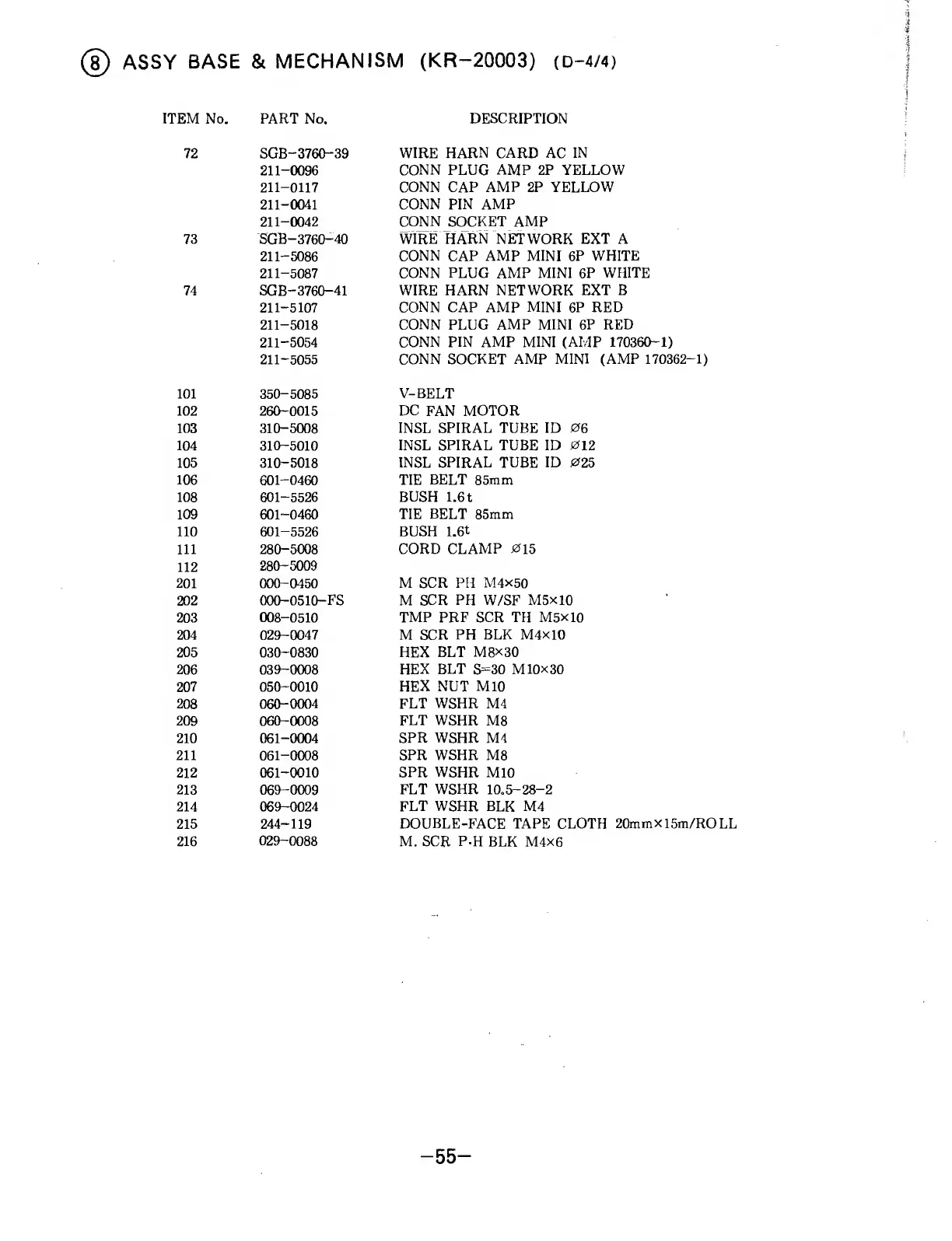

Sega OutRun User Manual

(
5
)
ASSY
BASE &
MECHANISM
(KR-20003)
(D-4/4)
ITEM No. PART No.
DESCRIPTION
72
SGB-3760--39
WIRE HARN CARD
AC
IN
211-0096
CONN PLUG AMP 2P YELLOW
211-0117
CONN CAP
AMP
2P
YELLOW
211-0041
CONN PIN AMP
211-0042
CONN SOCKET AMP
73 SGB—
3760-40
WIRE
HARN NETWORK
EXT A
211-5086
CONN CAP AMP MINI 6P
WHITE
211-5087
CONN
PLUG
AMP MINI 6P
WHITE
74 SGB-3760-41 WIRE HARN
NETWORK EXT B
211-5107
CONN CAP AMP MINI 6P RED
211-5018
CONN PLUG
AMP
MINI
6P RED
211-5054
CONN
PIN AMP MINI (AMP
170360-1)
211-5055
CONN
SOCKET AMP MINI (AMP
170362-1)
101
350-5085 V-BELT
102
260-0015 DC
FAN MOTOR
103
310-5008
1NSL
SPIRAL TUBE ID 06
104
310-5010
INSL SPIRAL TUBE ID
012
105
310-5018
INSL SPIRAL
TUBE
ID 025
106 601-0460
TIE
BELT 85mm
108
601-5526
BUSH 1.6
1
109
601-0460
TIE
BELT
85mm
110
601-5526
BUSH
1.6t
111
280-5008
CORD
CLAMP
015
112
280-5009
201
000-0450
M SCR PH
M4X50
202
000-0510-FS
M SCR
PH
W/SF
M5xl0
203
008-0510
TMP PRF SCR TH
M5xl0
204
029-0047
M
SCR
PH BLK
M4X10
205
030-0830
HEX
BLT
M8X30
206
039-0008
HEX
BLT
S=30
M10X30
207
050-0010
HEX NUT M10
208
060-0004
FLT WSHR M4
209
060-0008 FLT WSHR M8
210
061-0004
SPR WSHR M4
211
061-0008
SPR WSHR M8
212
061-0010
SPR WSHR
M10
213
069-0009
FLT WSHR
10.5-28-2
214
069-0024 FLT WSHR
BLK M4
215
244-119
DOUBLE-FACE TAPE CLOTH
20mmxl5m/ROLL
216
029-0088
M.
SCR
P-H
BLK
M4X6
-
55
-
