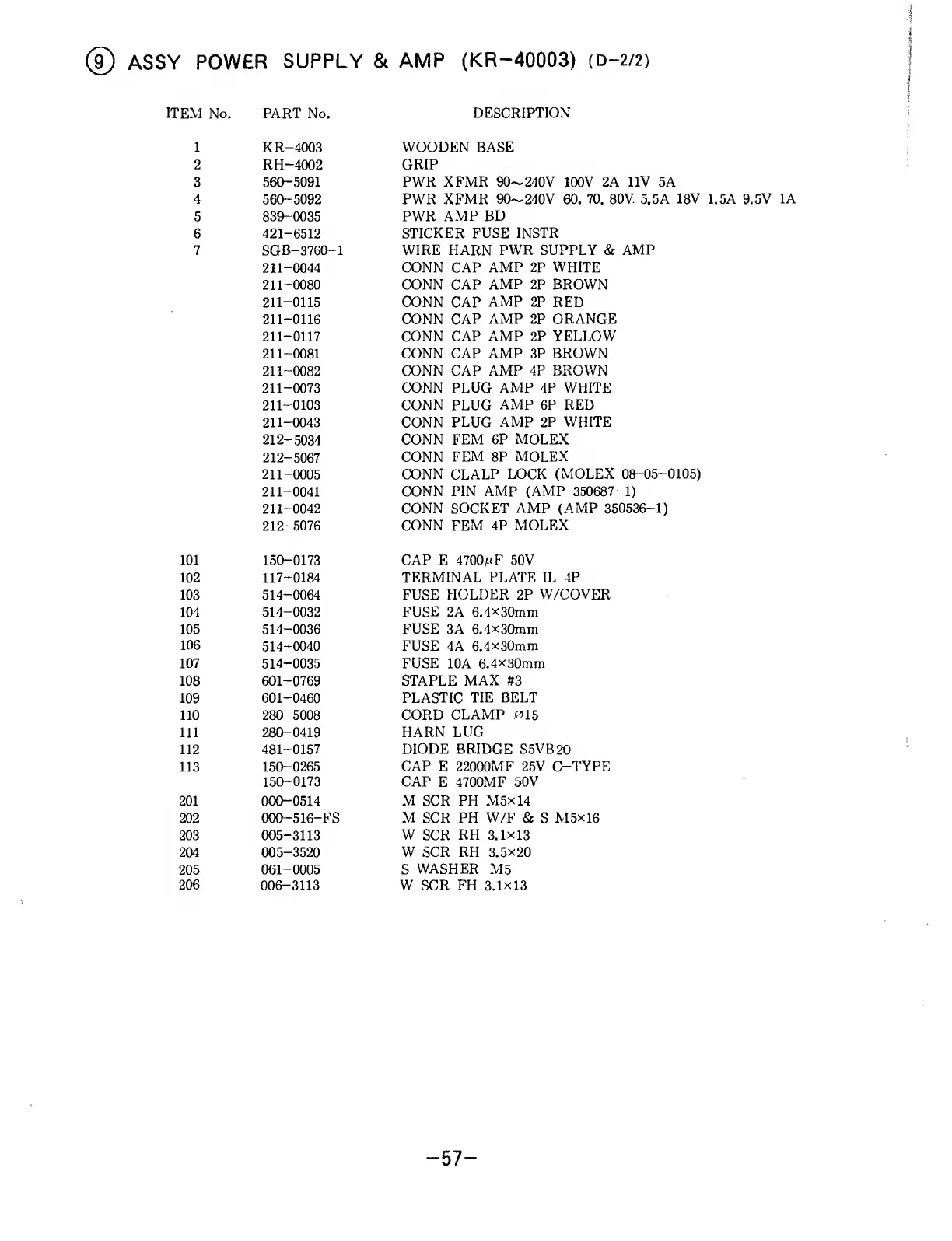

Sega OutRun - Page 59

©
ASSY POWER
SUPPLY &
AMP
(KR-40003)
(D-2/2)
’EM No. PART No.
DESCRIPTION
1
KR—4003
WOODEN
BASE
2
RH—
4002 GRIP
3
560-5091
PWR XFMR
90-
240V
100V 2A
11V
5A
4 560-5092
PWR XFMR
90-
240V
60. 70.
80V 5.5A 18V 1.5A 9.5V
1A
5
839-0035
PWR
AMP BD
6
421-6512
STICKER FUSE INSTR
7
SGB-3760-1
WIRE HARN PWR SUPPLY &
AMP
211-0044
CONN CAP
AMP
2P
WHITE
211-0080
CONN CAP
AMP
2P
BROWN
211-0115
CONN CAP
AMP
2P RED
211-0116
CONN CAP
AMP
2P
ORANGE
211-0117
CONN
CAP AMP
2P
YELLOW
211-0081
CONN
CAP AMP
3P
BROWN
211-0082
CONN CAP AMP 4P BROWN
211-0073
CONN
PLUG
AMP
4P WHITE
211-0103
CONN
PLUG
AMP
6P RED
211-0043
CONN PLUG
AMP
2P
WHITE
212-5034 CONN FEM 6P MOLEX
212-5067 CONN
FEM
8P MOLEX
211-0005
CONN
CLALP
LOCK (MOLEX
08-05-0105)
211-0041
CONN PIN AMP
(AMP 350687-1)
211-0042
CONN SOCKET
AMP
(AMP
350536-1)
212-5076
CONN FEM 4P
MOLEX
101
150-0173
CAP E 4
700a*
F
50V
102
117-0184
TERMINAL PLATE IL 4P
103
514-0064
FUSE
HOLDER
2P
W/COVER
104
514-0032
FUSE 2A
6.4x30mm
105
514-0036
FUSE 3A 6.
4
x
30mm
106
514-0040
FUSE 4A
6.4x30mm
107
514-0035
FUSE 10A
6.4x30mm
108
601-0769
STAPLE MAX
#3
109
601-0460
PLASTIC
TIE BELT
110
280-5008
CORD
CLAMP 015
111
280-0419
HARN LUG
112
481-0157
DIODE BRIDGE
S5VB20
113
150-0265 CAP
E 22000MF 25V C-TYPE
150-0173
CAP E
4700MF
50V
201
000-0514
M SCR PH
M5X14
202 000-516-FS
M
SCR
PH W/F &
S
M5X16
203
005-3113
W
SCR
RH
3.1x13
204
005-3520
W SCR RH
3.5x20
205
061-0005
S
WASHER
M5
206 006-3113
W SCR FH
3.1x13
