CHAPTER 3

TERMINAL ASSIGNMENT

3.1 B HEAD-MOUNTED PRINTER

3.1.1 Thermal Head Control Terminal

Recommended connector: 0022023083 (MOLEX)

Solder-plated surface

Terminal

Number

Signal Name Function

1 Dot 1 Thermal head 1st dot

2 Dot 2 Thermal head 2nd dot

3 Dot 3 Thermal head 3rd dot

4 Dot 4 Thermal head 4th dot

5 Dot 5 Thermal head 5th dot

6 Dot 6 Thermal head 6th dot

7 Dot 7 Thermal head 7th dot

8 H-COM Thermal head common ( + 5V)

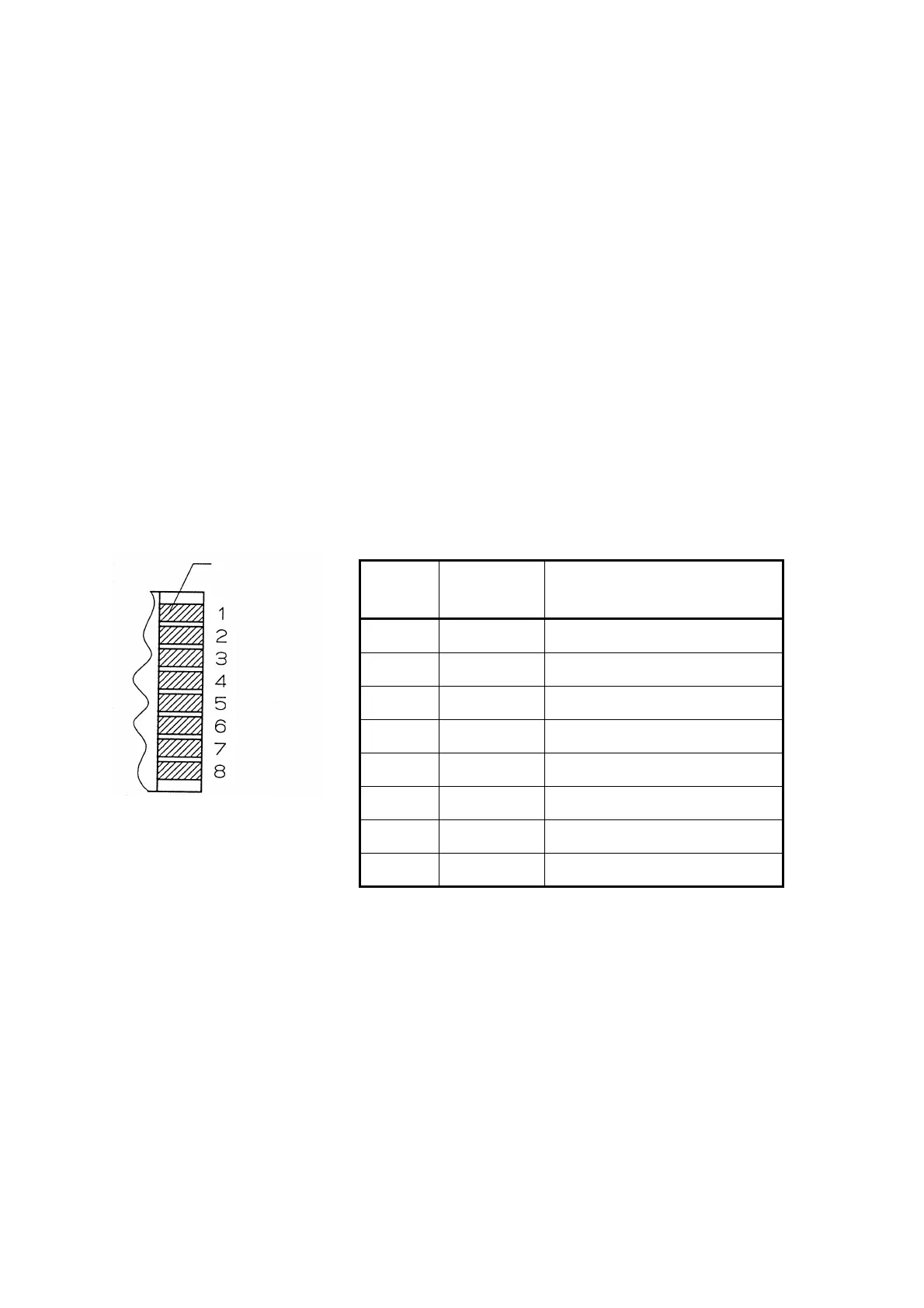

Figure 3-1 Thermal Head Control Terminal Assignment (B Head-mounted Printer)

3-1
