3.2 G HEAD-MOUNTED PRINTER
3.2.1 Thermal Head Control Terminal
Recommended connector: 0022023093 (MOLEX)
Terminal
Number
Signal Name Function
1 Dot 1 Thermal head 1st dot
2 Dot 2 Thermal head 2nd dot
3 Dot 3 Thermal head 3rd dot
4 Dot 4 Thermal head 4th dot
5 Dot 5 Thermal head 5th dot
6 Dot 6 Thermal head 6th dot
7 Dot 7 Thermal head 7th dot
8 Dot 8 Thermal head 8th dot
9 H-COM Thermal head common ( + 5V)
Solder-plated surface

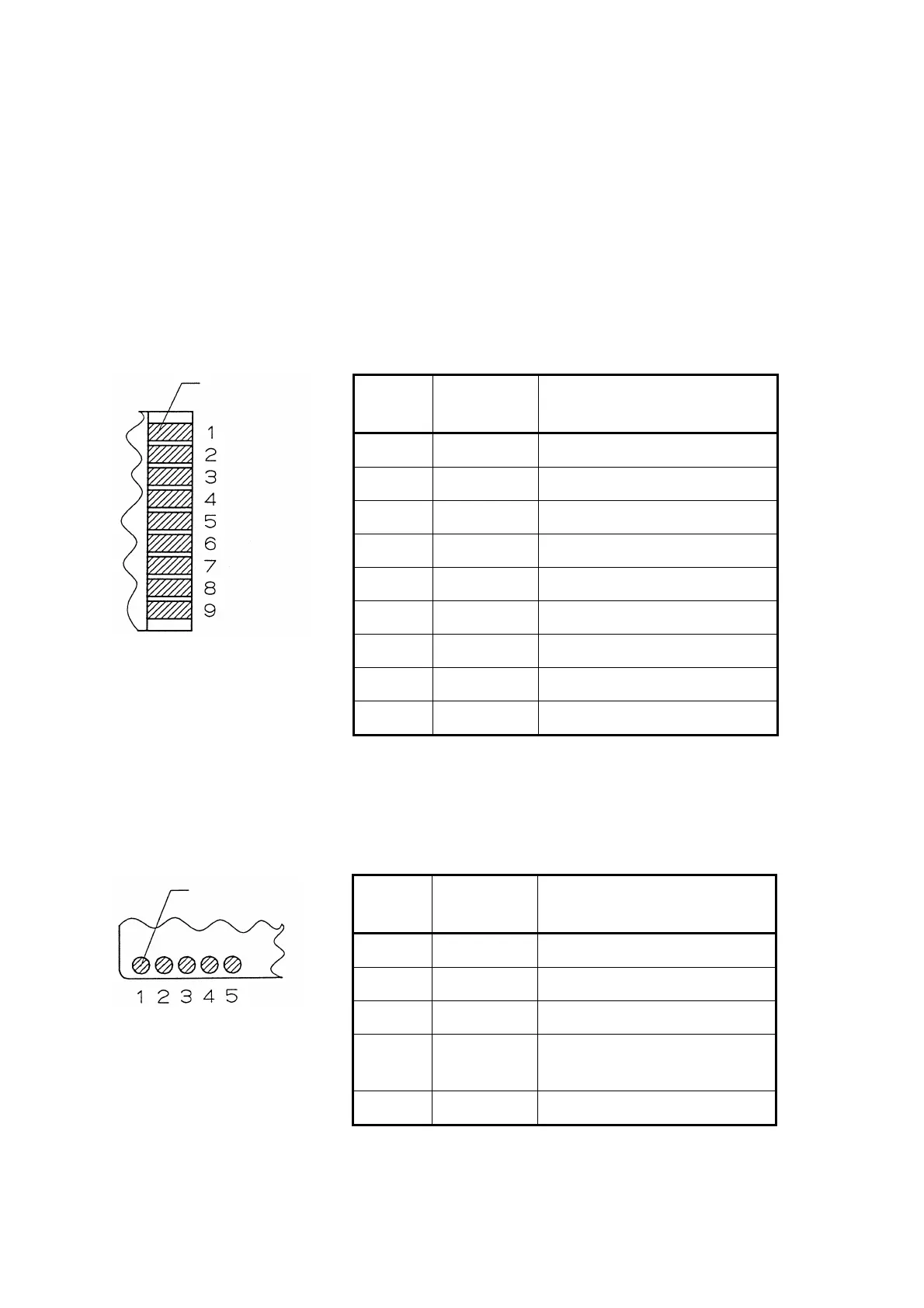

Figure 3-4 Thermal Head Control Terminal Assignment (G Head-mounted Printer)
3.2.2 Motor and Switch Control Terminal
Terminal
Number
Signal Name Function
1 M + Motor plus ( + 5V)
2 M − Motor minus
3 TG Tachogenerator
4 HS⋅TG-COM
Home switch⋅Tachogenerator
common (GND)
5 HS Home switch
Solder-plated surface
Figure 3-5 Motor and Switch Control Terminal Assignment (G Head-mounted Printer)
3-3
