3.1.2 Motor and Switch Control Terminal
(1) MTP102
Recommended connector: 0022023063 (MOLEX)
Solder-plated surface

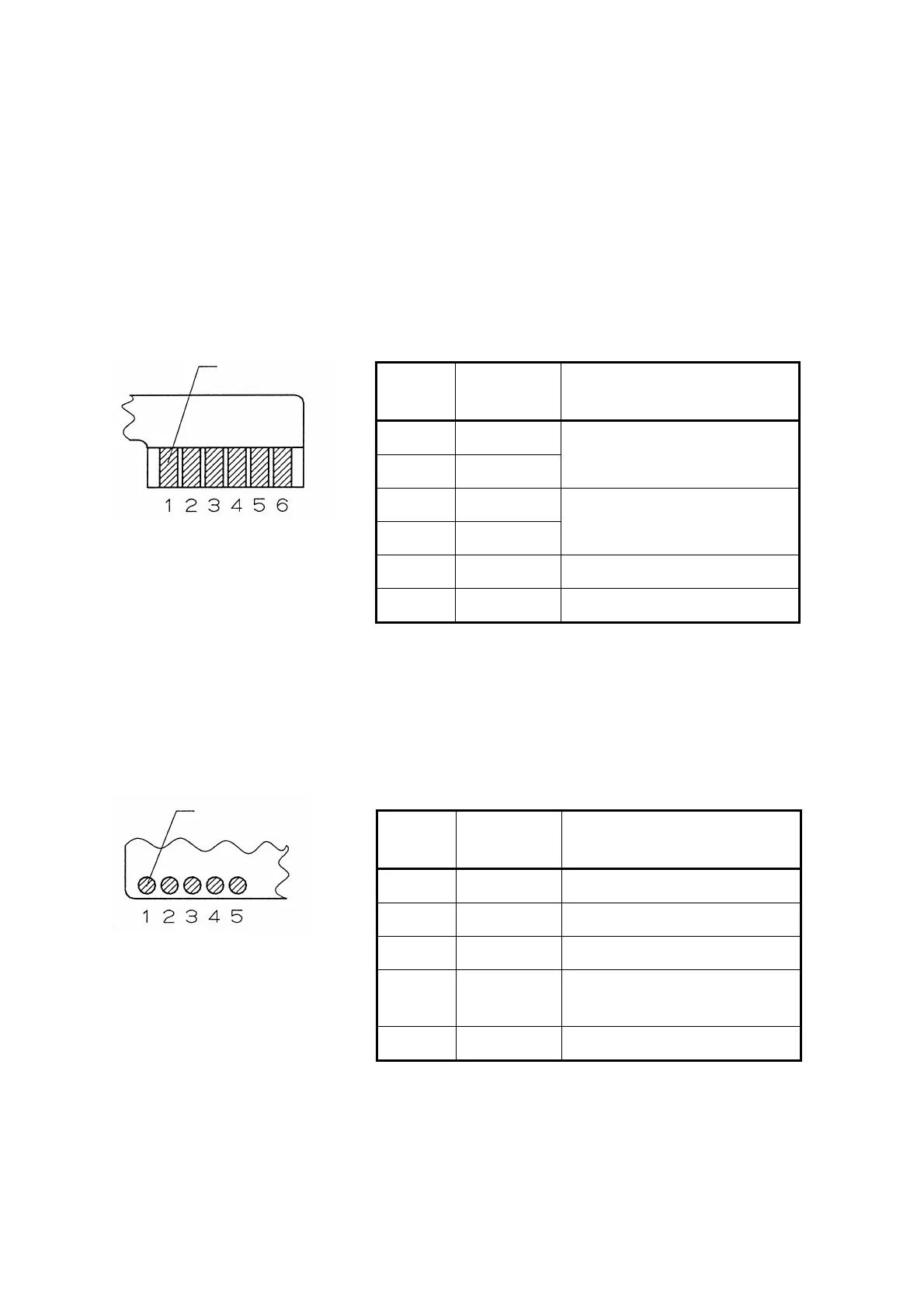

Figure 3-2 Motor and Switch Control Terminal Assignment (B Head-mounted Printer, MTP102)
Terminal
Number
Signal Name Function
1 HS
2 HS
Home switch, GND for V
CC
3 TG
4 TG
Tachogenerator, GND for V
CC
5 M − Motor minus
6 M + Motor plus ( + 5V)
(2) MTP201 and MTP401
Solder-plated surface
Terminal
Number
Signal Name Function
1 M + Motor plus ( + 5V)
2 M − Motor minus
3 TG Tachogenerator
4 HS⋅TG-COM
Home switch⋅Tachogenerator
common (GND)
5 HS Home switch
Figure 3-3 Motor and Switch Control Terminal Assignment (B Head-mounted Printer, MTP201 and MTP401)
