Seiko MTP Series User Manual

8.5 FLEXIBLE CABLE
8.5.1 Connecting and Fixing the Flexible Cable Terminal
Use and FPC (Flexible Printed Circuit) connector to connect and fix the flexible cable terminal.
Refer to the external view of each printer for the mounting position of the FPC connector.
8.5.2 Bend Radius of Flexible Cable
Design the case of peripheral device to provide for a minimum radius of at least 5R (mm) at the point
where the flexible cable bends.
Flexible cable
5R min.
a
Printer
Connector
Base Model a (mm)
MTP 102
MTP 201
MTP 401
5.3
5.3
8.0

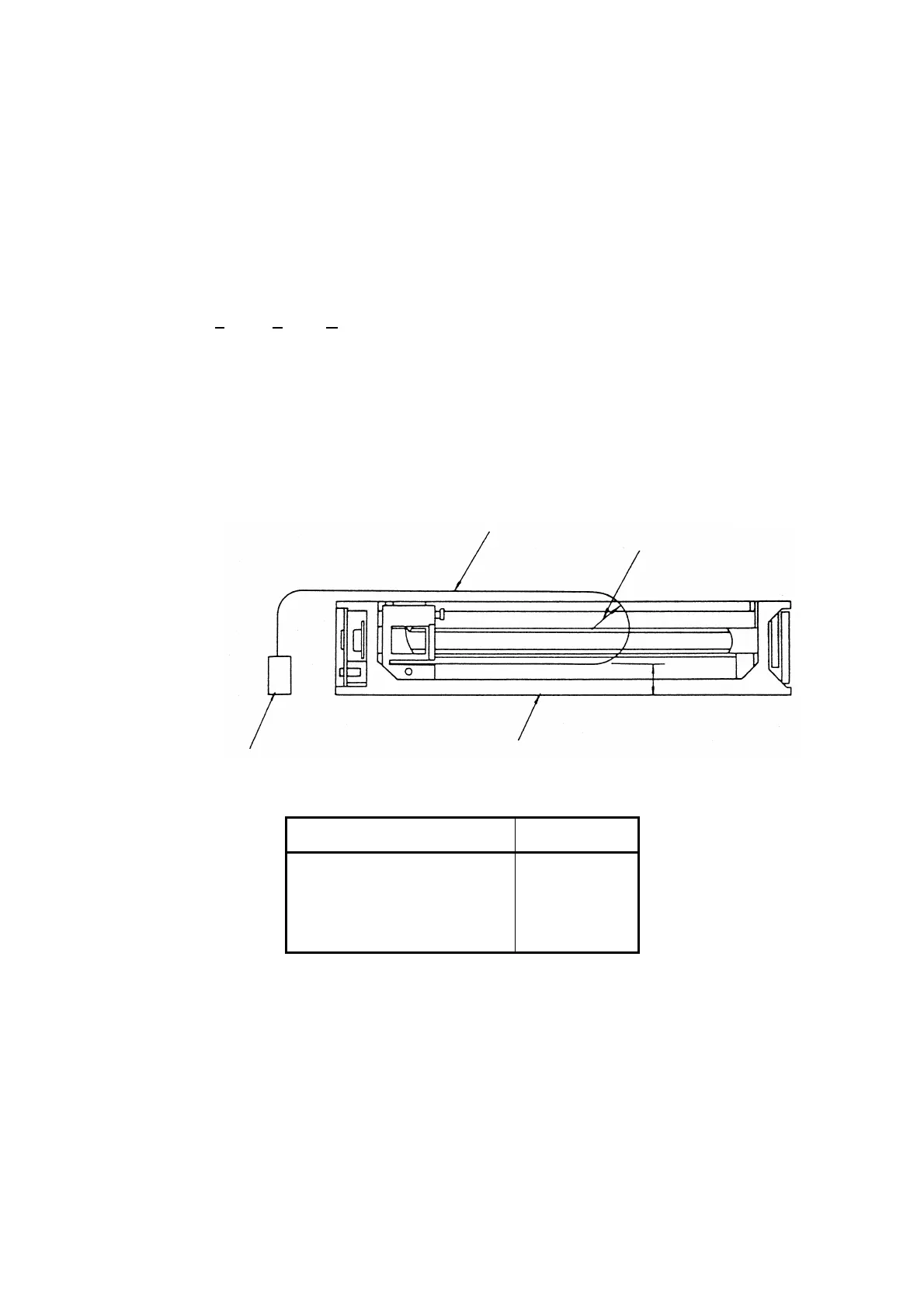

Figure 8-10 Bend Radius of Flexible Cable
8-7
