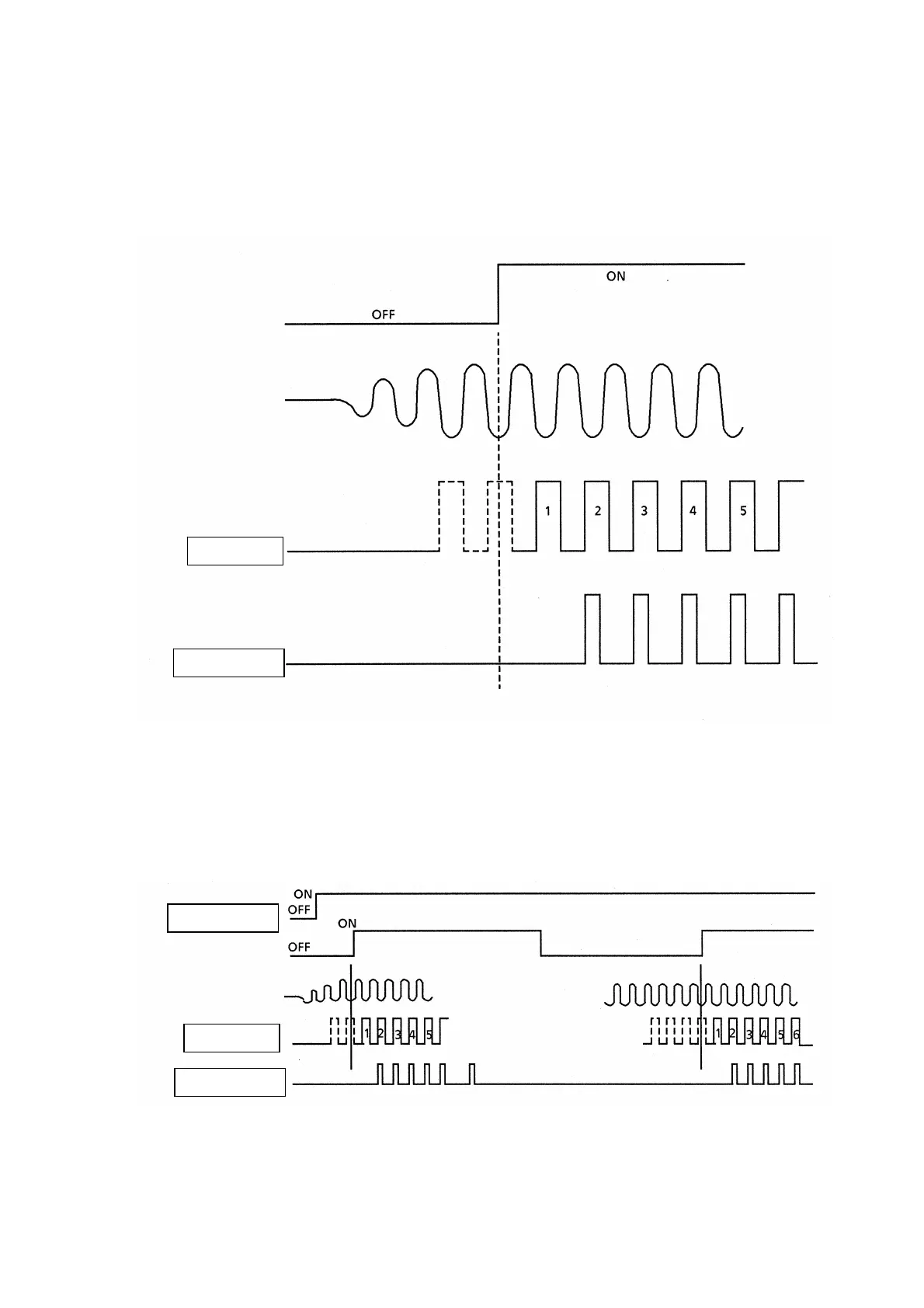

4.2 DETAILED CHART OF PRINTING START TIMING
Home switch signal
TG signal
Timing signal
Head drive signal
* Start printing from the second pulse of timing signals.
Figure 4-2 Printing Start Timing Chart
4.3 CONTINUOUS PRINTING OPERATION
4.3.1 Home Switch Signal Method
The print start position is determined for each line on the basis of the ON-rise of the home switch signal.
Motor drive signal
Home switch signal
TG signal
Timing signal
Head drive signal
Figure 4-3 Continuous Printing Timing Chart (Home Switch Detection Method)
• Due to a detection error of the home switch signal, the print start position may deviate by a
maximum of 1 dot.
4-3
