(1) When mounting with screws
Tapping
screw
With the φ2.2 mm holes at the corners of
the printer as a reference for positioning,
fix the printer on the printer base by
tightening the tapping screws from the
top of the printer (see Figure 8-5).
φ2 mm
Printer mounting base
(2) When mounting without screws
With the φ2.2 mm holes as a reference
for positioning, fix the printer by
pressing the eaves on both sides of the
upper portion of the printer.

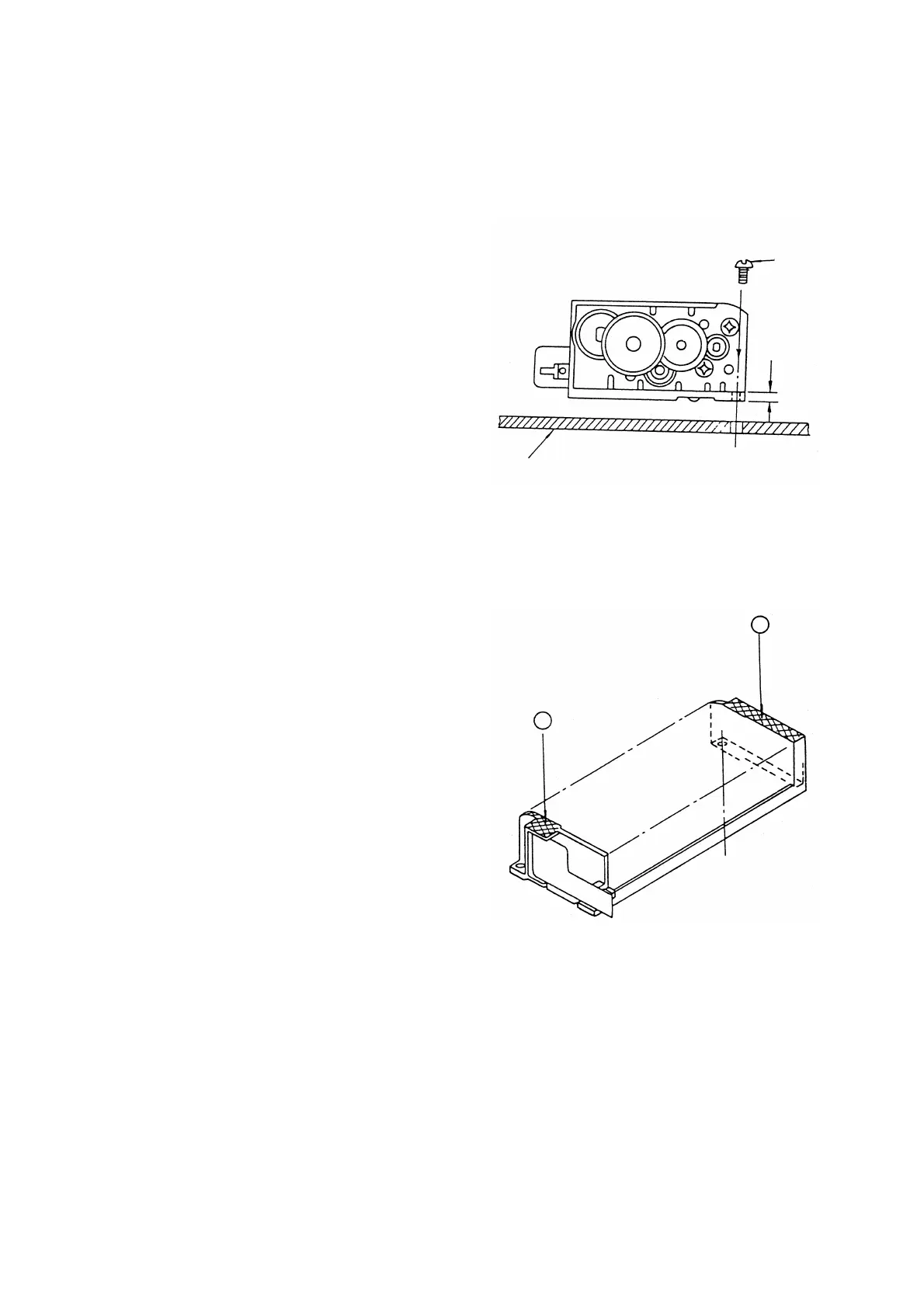

Figure 8-5 Mounting with Screws
(MTP201 and 401 Printer)
Figure 8-6 Mounting without Screws
(MTP201 and 401 Printer)
