(3) Pull out the flexible cable plate in the
direction shown by arrow A holding the
edge of the plate with a finger, then
disengage the plate from the dowel of the
head carrier (see figure 8-13).
Flexible lead
wire support
p
late
Dowel
A
Head carrier frame
(4) Holding both sides of the head unit with
your fingers, pull out the head unit in the
direction shown by arrow B (see Figure
8-14).

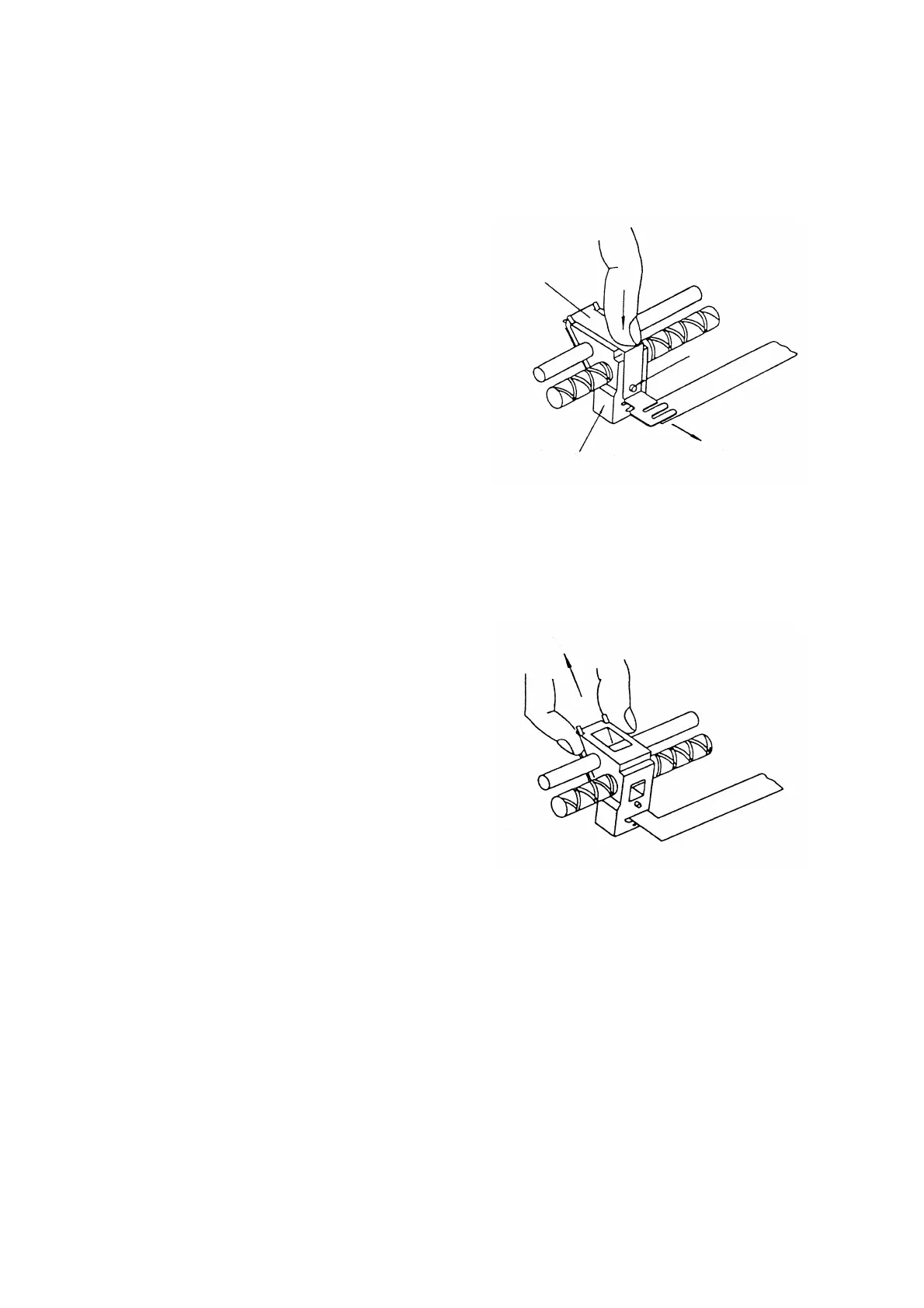

Figure 8-13 Pulling out the Flexible Cable
Plate
B
Figure 8-14 Pulling out the Head Unit
8-9
