36

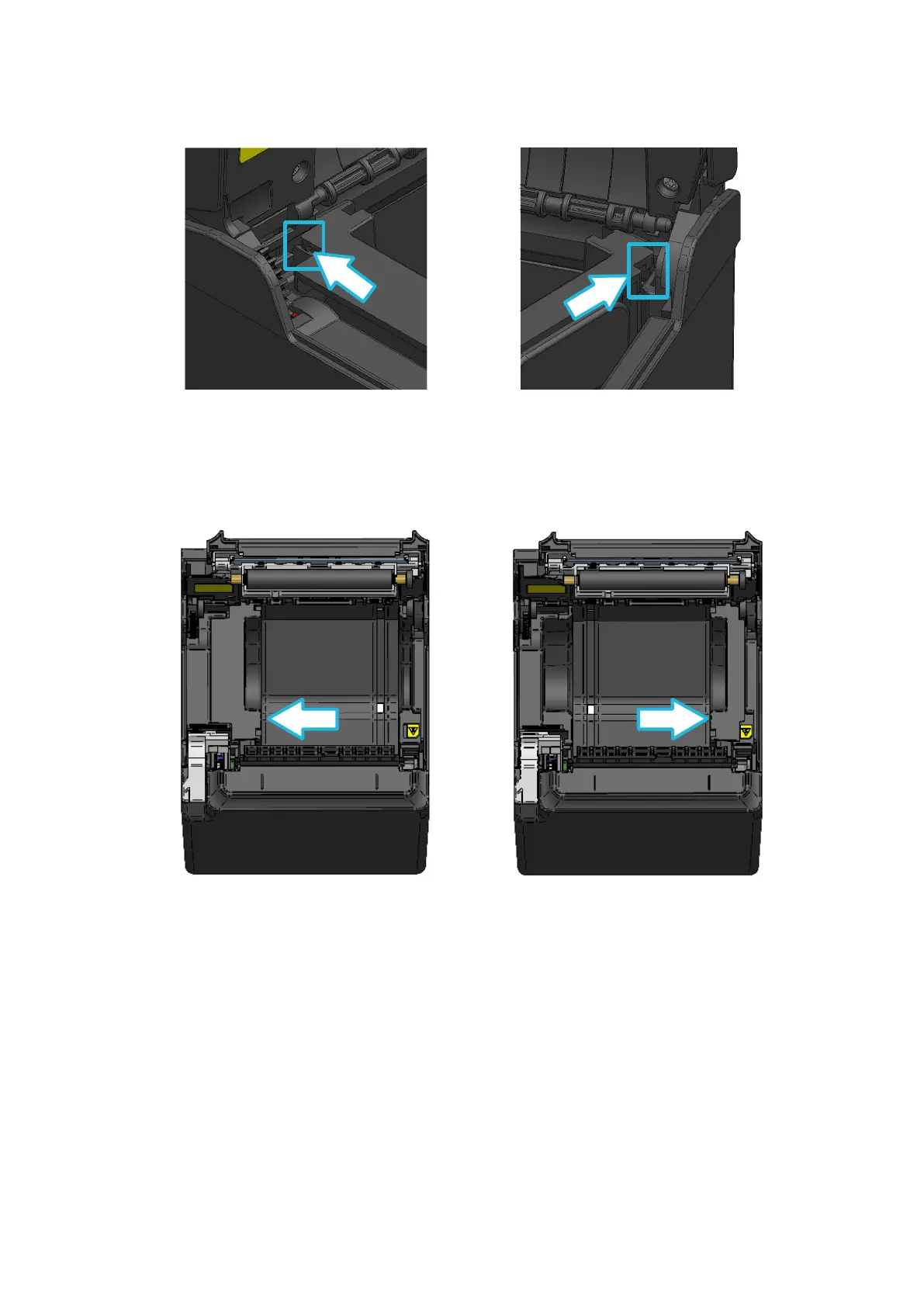

Put the hook which is located on the upper side of the partition plate L and partition plate R on the (5)
hole of paper holder as shown in Figure 14-3.
Figure 14-3 Partition Plate Installation (3)
Push the partition plate L and partition plate R to the direction of the arrow shown in Figure 14-4 (6)
with placing them along the side surface of the paper holder, and then put the projection which is
located at the bottom of the partition plate in the hole of the paper holder.
Figure 14-4 Partition Plate Installation (4)
To Next Page
