GENESIS 282-352

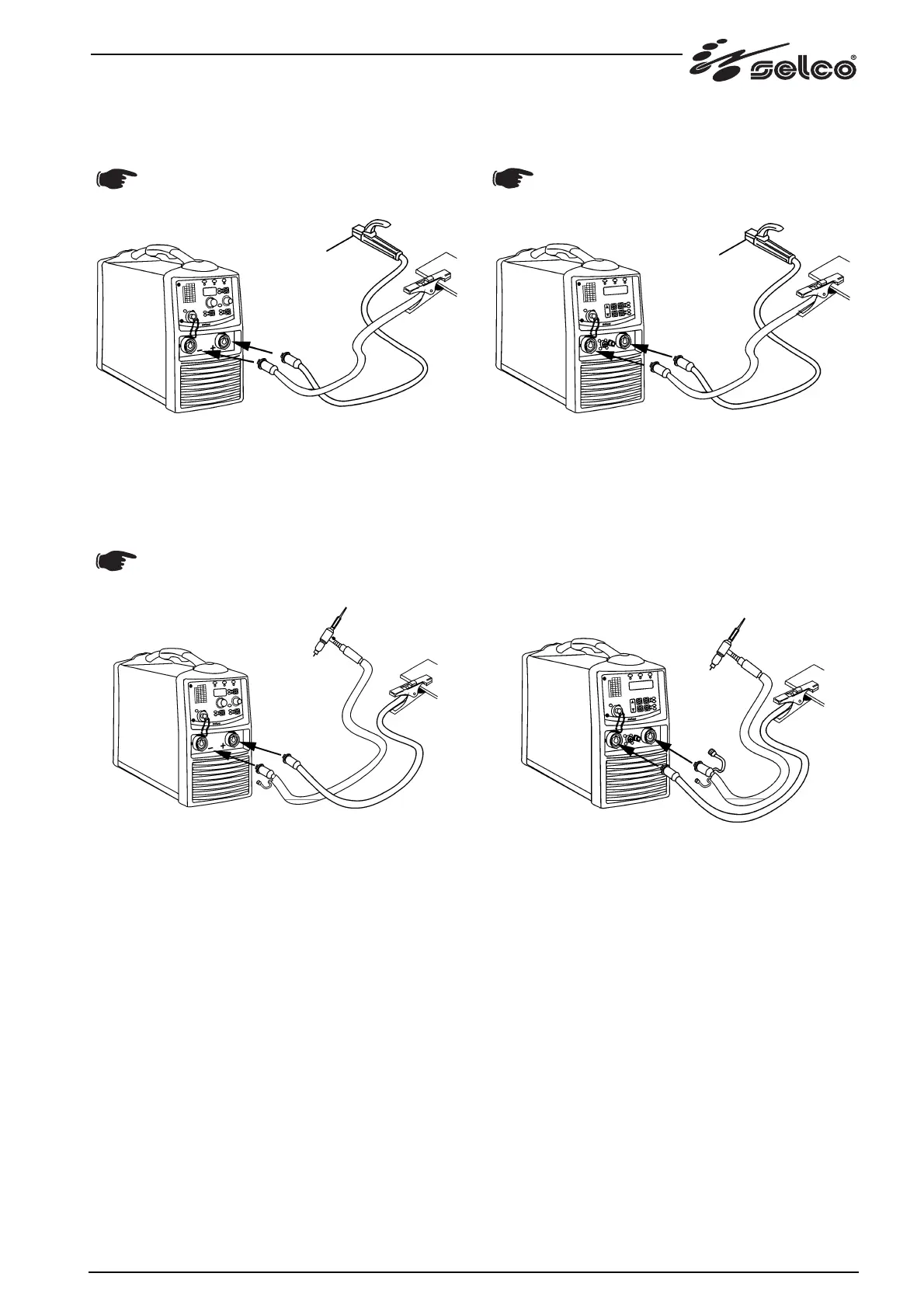

Connection for MMA welding (Fig. 4)
The connection shown in the figure produces rever-
se polarity welding. To obtain straight polarity wel-
ding, invert the connection.
Fig.4
Connection for TIG welding (Fig. 5)
- Separately connect the torch gas pipe connector to the gas
distribution.
The protection gas flow is adjusted using the tap
normally located on the torch.
Fig.5
GENESIS 282-352 TLE
Connection for MMA welding (Fig. 6)
The connection shown in the figure produces
reverse polarity welding. To obtain straight polarity
welding, invert the connection.
Fig.6
Connection for TIG welding (Fig. 7)
- Connect the torch gas pipe connector to the gas fitting on the
power source.
- Connect the torch button connector to the corresponding 4-
pole connector.
- Connect the connector of the gas pipe coming from the gas
distribution to gas fitting 3 on the welder rear panel.
Fig.7
19
