SELPRO ESY 1 - ESY-1 Control & Power Card: ALL-in-ONE; Jumper and LED Functions (ALL-in-ONE); ESY-1 Control & Power Card: SLAVE-ONE; Jumper and LED Functions (SLAVE-ONE)

User Manual ESY-1 / rev. 9 15.01.2008 www.selproweb.com
12
Led
DL1
MAX OUT
CUT-OFF
(MIN OUT)
SP
-
+
J1
J2
J3
Power supply
terminal block
J4
P1 P2
P3
P4
Control signals
terminal block
SPadj
Led
Led
Double Set-Point
optional card
SP1
SP1adj
SP2adj
SP2
1
2
Led
Led
P4P3
P6
P5
1
2
-
+
Led
Led
J1
Power supply
terminal block
Control signals
terminal block
DL1
Power supply
terminal block
Control signals
terminal block
SLAVE-SV (0-10V)
SLAVE-SP (PWM)

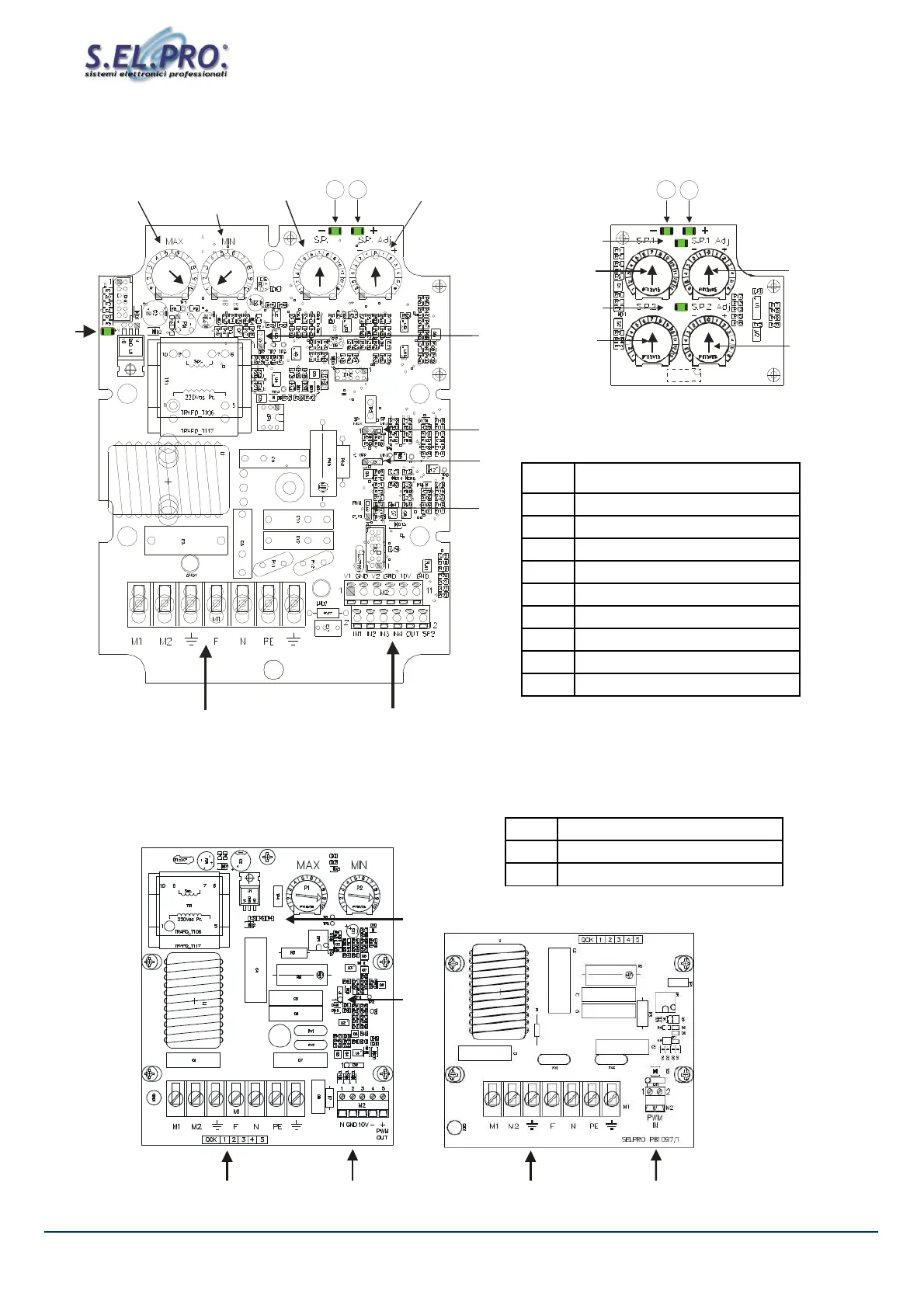

8. ESY-1: CONTROL & POWER CARD IN DETAIL, ALL-in-ONE version
8.1. ESY-1: CONTROL & POWER CARD IN DETAIL, SLAVE-ONE versions
Jumper
& LED
Description ESY-1 / ALL-in-ONE
J1
DIRECT-REVERSE mode selection
J2
VAC Output at SET-POINT
J3
CUT-OFF / MIN OUT selection
J4
EXTRA-power control Output
DL1
Power supply O.K.
DL -
Set-Point higher than sensor signal
DL +
Set-Point lower than sensor signal
1
Set-Point 1 ON
2
Set-Point 2 ON
Jumper Description ESY-1 / SLAVE-SV
J1
CUT-OFF / MIN OUT selection
DL1
Power supply O.K.
