User Manual ESY-1 / rev. 9 15.01.2008 www.selproweb.com
3
1. EC DIRECTIVES & TECHNICAL STANDARDS
This series has been designed and manufactured for use in industrial environments, and complies therefore with the
following European Directives:
• Machine Directive 98/37 CE and following amendments
• Low Voltage Directive (LVD) 2006/95/EC
• EMC Directive 2004/108/EC
Thanks to its advanced technical solutions, the ESY100 series has obtained the CE mark in compliance with the EMC
(Electromagnetic Compatibility) directive 2004/108/EC also in household environment.
The essential requirements of the directive are satisfied by the conformity to the “generic standards” for industrial environments.
Directive Standard Code Description
98/37/CE EN 60204-1
Safety of machinery. Electrical equipment of machines.
73/23/CE EN60204-1
Safety of machinery. Electrical equipment of machines.
EN 50178
Electronic equipment for use in power installations.
89/336/CE EN 61000-3
Adjustable speed electrical power drive systems. Part 3: EMC
product standard including specific test methods.
All products have been tested in accordance with the procedures and test conditions laid down in the standards specified in the
product technical file.
Since these products are destined to be used not only as “stand alone” systems, but also as components of other machines or plants,
all compatibility tests to the standards have been performed under typical conditions of use.
In particular, the tests have been performed in a system consisting of a voltage controller RGM300, a control cable and relative
commands, a supply cable, a motor cable and a group of fans with an equivalent power to the value of the nominal current of the
controller, set to operate within specific VAC values for the single-phase regulation according to EMC requirements.
! WARNING !
The final specifications of the system or plant, in compliance with the EMC directive, are in any case
the responsibility of the installer, who must put the system into operation carefully, according to the
rules in force and following the information provided by the present manual.

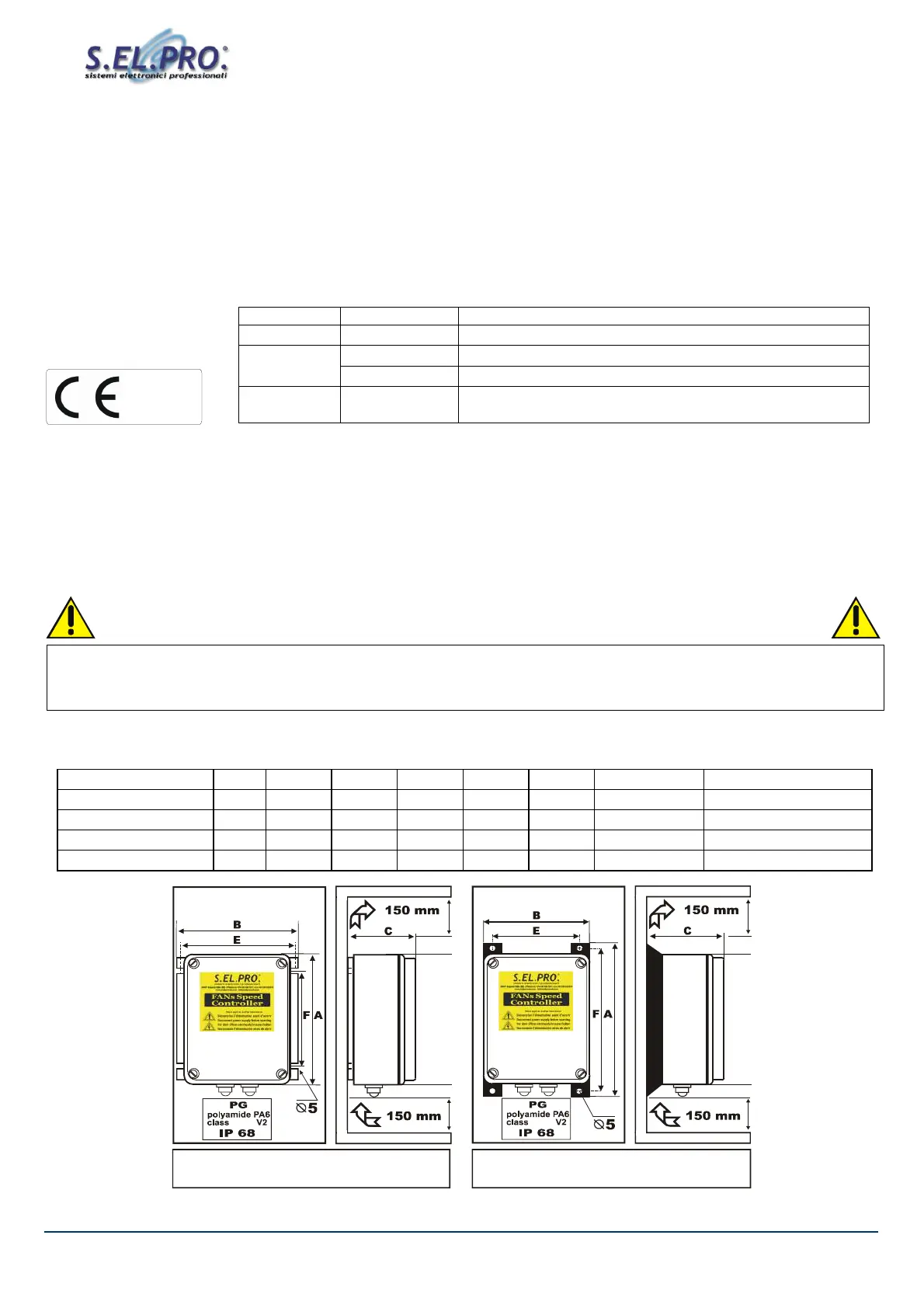

2. Mechanical Dimensions ESY-1
Model A B C D E F Kg.
∅
∅∅
∅ fastening holes
ESY 08 195 162 97 195 145 162 1.4 Kg
∅
∅∅
∅ 5
ESY 12 195 162 97 195 145 162 1.5 Kg
∅
∅∅
∅ 5
ESY 16 240 152 115 195 93 210 1.7 Kg
∅
∅∅
∅ 5
ESY 20 240 152 115 195 93 210 1.8 Kg
∅
∅∅
∅ 5
