11. ACCESSORIES
11.1. Manual Remote Control Units
♦

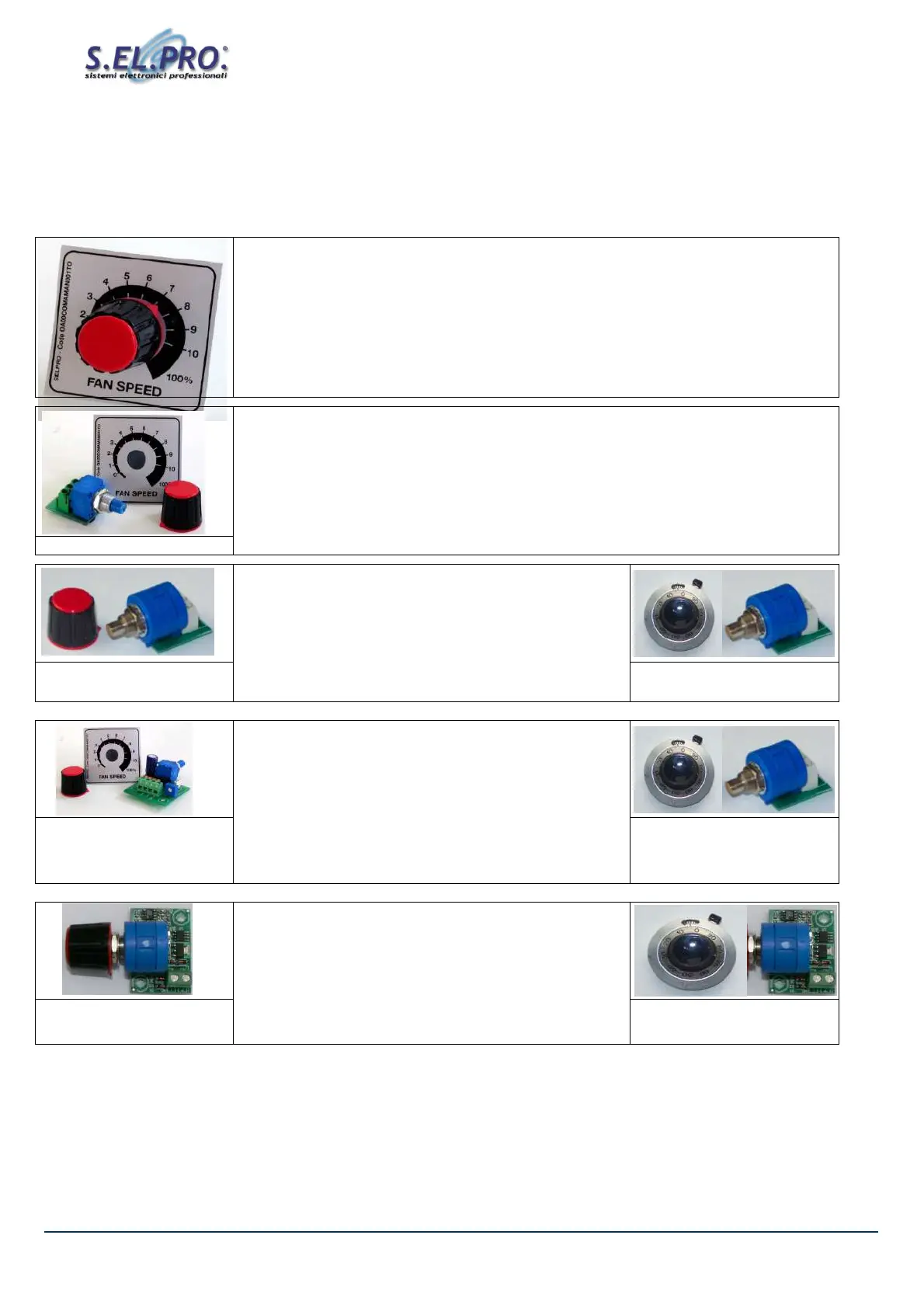

Series of potentiometers for manual remote control
- Potentiometer for external remote control
- Manual speed setting with 0-10 Vdc
- Available 1 & 10 turn versions, with standard knob ∅
∅∅
∅ 22 and silk screen label
- Available 10 turn version, with knob ∅
∅∅
∅ 30 with 100 Set-points
- Mounting in switch cabinet doors, shaft length 15 mm, ∅
∅∅
∅ 6.3 mm
- Complete with front plate 50 x 50 mm
Linear potentiometer for 0-10 Vdc remote manual control
1 turn – 10kohm – 1 W – in Cermet
Front plate with silk screen label 50 x 50 mm and knob diameter ∅
∅∅
∅ 22
ZC RGF PB1034 00000
Linear potentiometer for 0-10 Vdc remote manual
control
10 turns – 10kohm – 3 W – wire
Front plate with silk screen label 50 x 50 mm
ZC RGF PB1050 10000
with ∅
∅∅
∅ 22 knob
ZC RGF PB1050 20000
with 100-points, ∅
∅∅
∅ 30 knob
AC voltage converter for manual control:
Input 24Vdc >>> Output 0-10Vdc
with adjustable MAX Vdc-Out LIMIT, for the
regulation of:
- Fan motors
- Geared motors for shutters
- Geared motors for motorized valves
Front plate with silk screen label 50 x 50 mm
ZC RGF PB1035 10000
with ∅
∅∅
∅ 22 knob
ZC RGF PB1035 20000
with 100-points, ∅
∅∅
∅ 30 knob
AC voltage converter for manual control:
Input 24Vdc >>> Output 4-20mA
for the regulation of:
- Fan motors
- Geared motors for shutters
- Geared motors for motorized valves
Front plate with silk screen label 50 x 50 mm
ZC RGF PB1040 10000
with ∅
∅∅
∅ 22 knob
ZC RGF PB1040 20000
with 100-points, ∅
∅∅
∅ 30 knob
