1.5. Anchor Plate Installation
Follow the same procedure for both Single and dual pedestal mount installation.

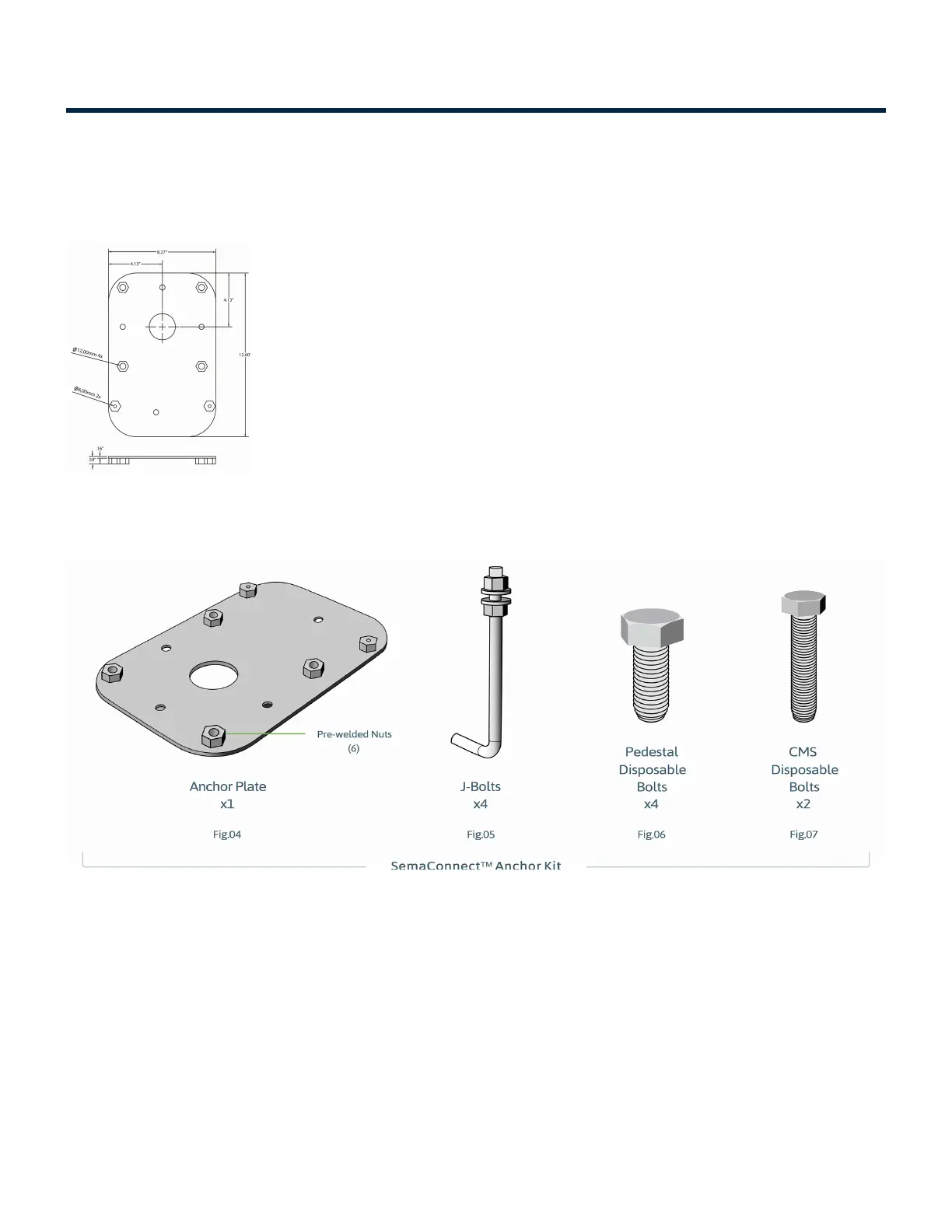

• Anchor Plate Key Dimensions
When pouring new concrete, request a SemaConnect Anchor Kit which contains:
Fit all J-Bolts (4), Pedestal (4) and CMS (2) Disposable Bolts to the anchor plate.
• The flat side on which 6 nuts are welded on the Anchor Plate face downwards.
• Do not remove Disposable Bolts (6) from the anchor plate until the pedestal is ready to be installed.
• Make sure that only one thread of the top nut is visible after the J-Bolts are fitted to the anchor plate.
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 14 of 25
