1.6. Pedestal Mount

Preparing the SemaConnect Series 6 Head Unit

• Loosen the Set screws (4 nos) in the head unit(s) and attach Cable rack to charging Station.

• Remove the access panel from the head unit.

• Place the J1172 in the holder and hang the cable in the cable rack.

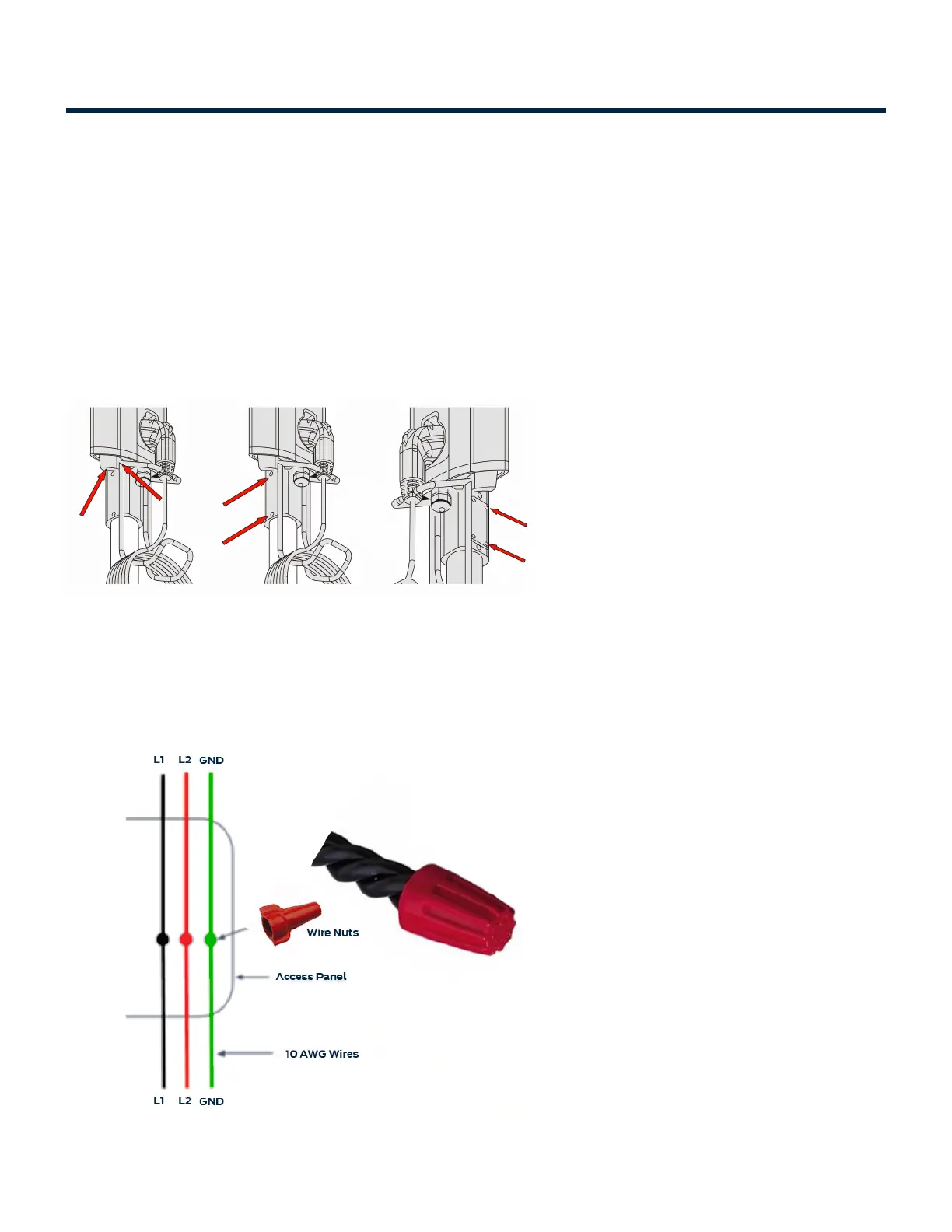

Assembly of SemaConnect Series 6 onto Pedestal

• Now Slide the head unit onto pedestal and attach it with four mounting screw.

• Make sure that the wires are not pinched between pedestal and charging station

• Connect three electrical supply wires.

• Strictly adhere to the wire color codes to ensure proper installation (Green-Green). And use wire nut and

Insulation tape for safety.

• Carefully push the wire in and attach the access plate.
