Straight Tool
1
2
3
4
5
6
7
8
➊

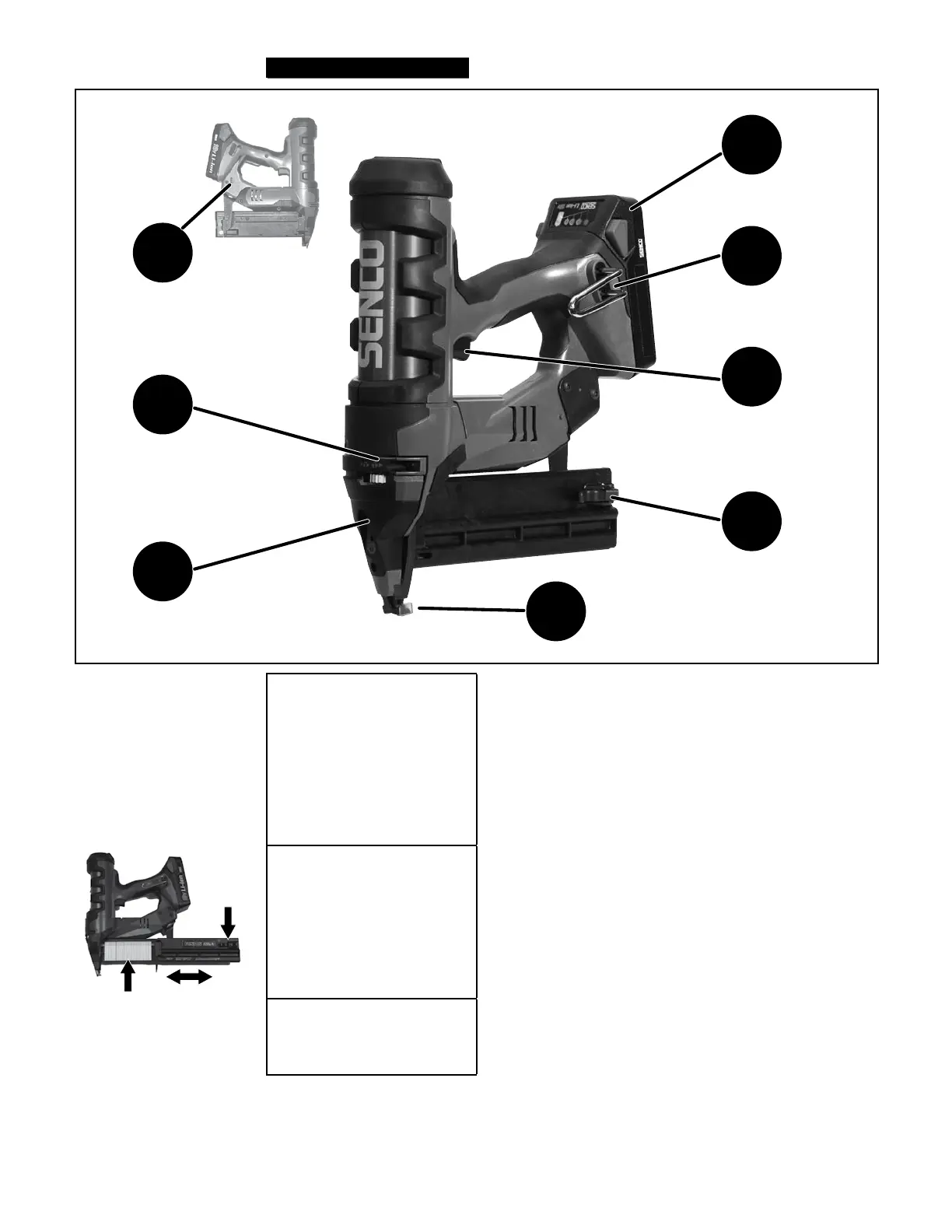

On/Off and Selective Actuation
Button
➋
Depth of drive control
➌
Workpiece Illumination/
Status Indicator
➍
Workpiece contact (safety)
element
➎
Magazine Latch
➏
Trigger/On Switch
➐
Belt Hook
➑
Battery Pack
Pull magazine latch back to open
access door. Load strip of fasten-
ers with points resting on fastener
guide and then push the door back
toward the front of the tool. An
audible click will indicate that the
strip is properly loaded.
`
Pull magazine latch back to open
access door. Grasp fastener strip
and remove.
