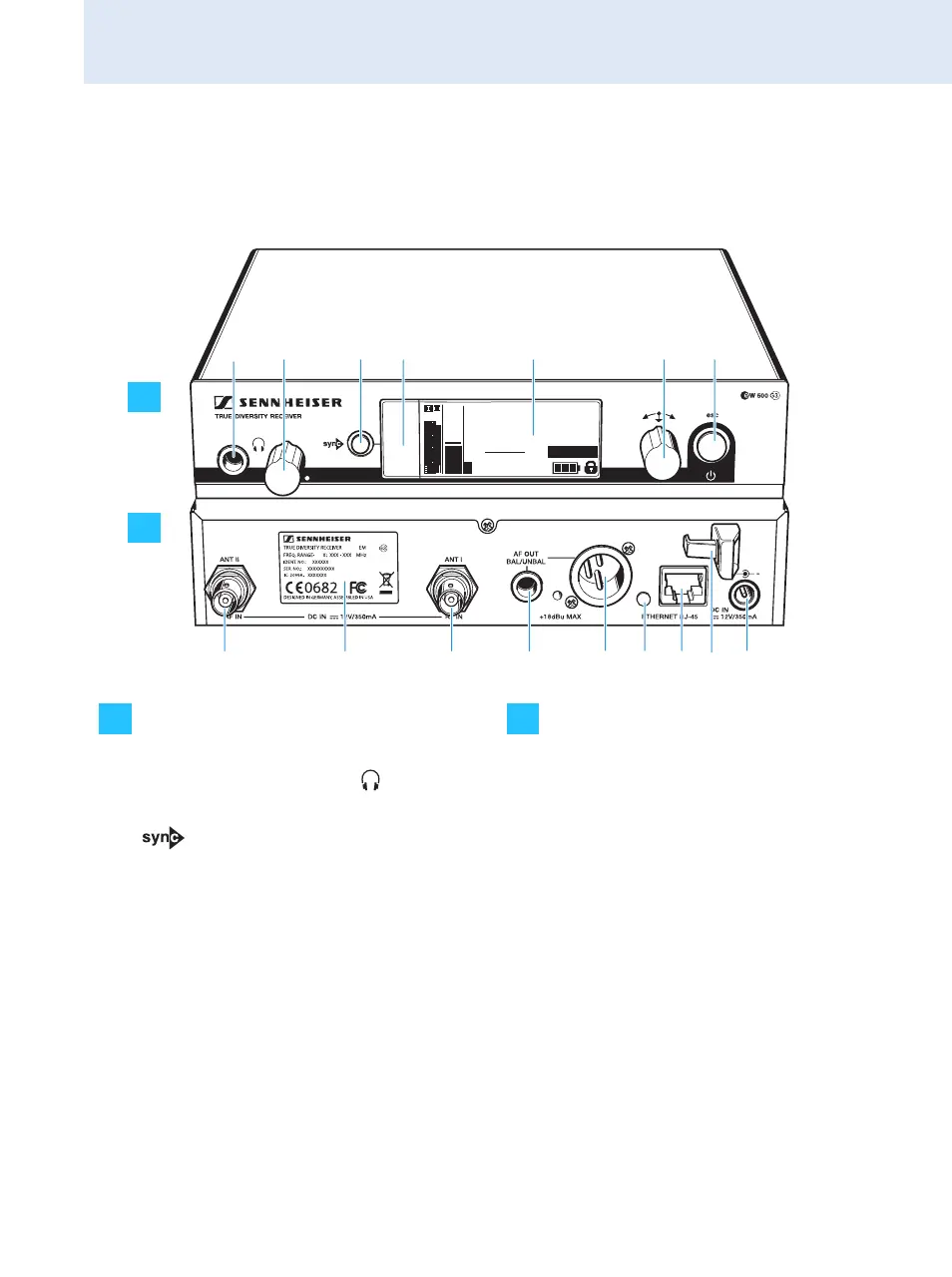

Overview of the EM 500 G3 receiver
Operating elements – front panel Operating elements – rear panel
 Headphone output,
¼” (6.3 mm) jack socket ( )
 Headphone volume control
 button, backlit
 Infra-red interface
 Display panel, backlit in orange
 Jog dial
 STANDBY button
with operation indication (red back-
lighting); ESC function (cancel)
 Antenna input II (ANT II) with
remote power supply input,
BNC socket
 Type plate
 Antenna input I (ANT I) with
remote power supply input,
BNC socket
 Audio output (AF OUT UNBAL),
¼” (6.3 mm) jack socket, unbalanced
 Audio output (AF OUT BAL),
XLR-3M socket, balanced
 LED (yellow) for network activity
indication
 LAN socket (ETHERNET RJ 45)
 Cable grip for power supply DC cable
 DC socket (DC IN) for connection of
NT 2-3 mains unit
542.625
