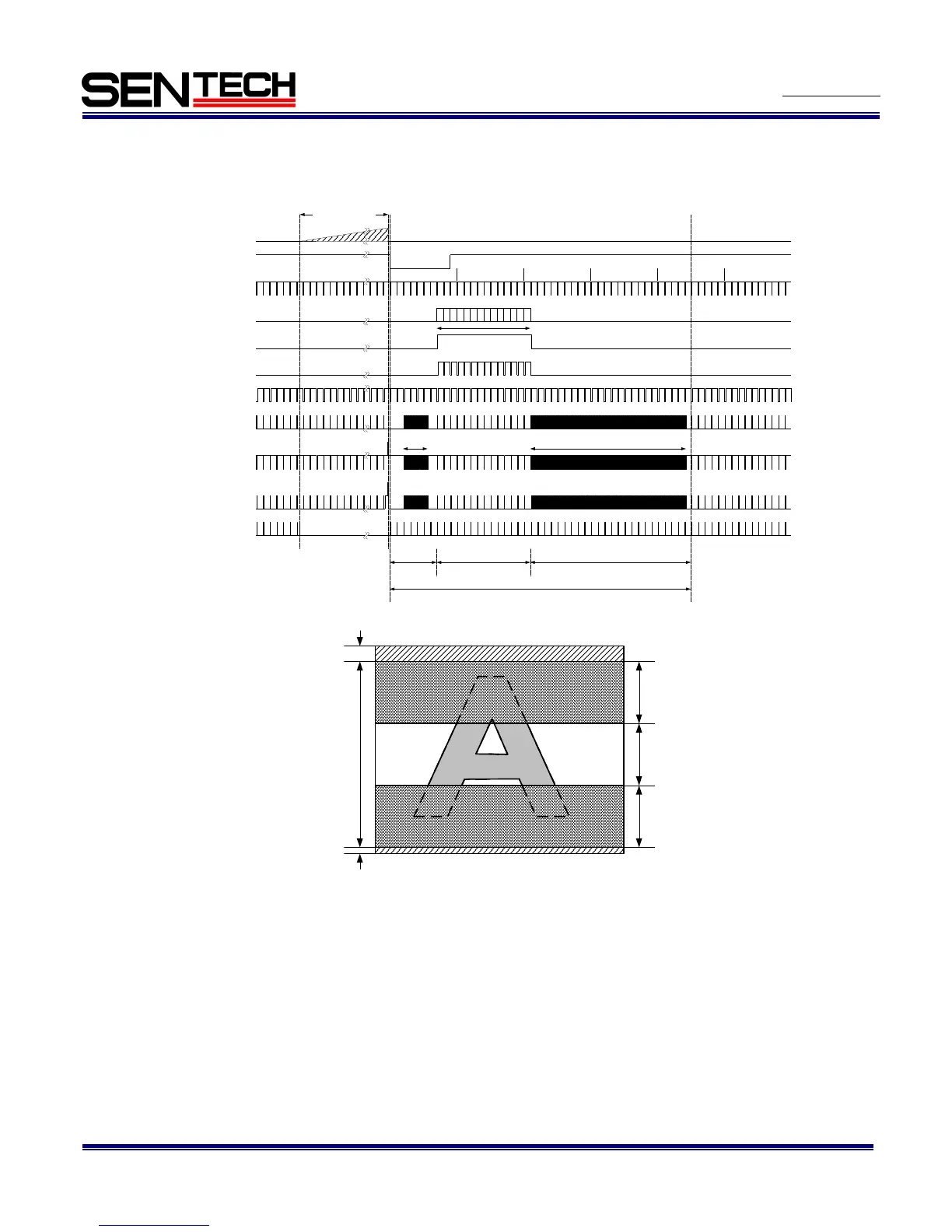

2.1.2.5 Variable partial scanning
(Settings: address: 10H, value: 1XX01XXX; address: 11H, value: XXX0X111)
Internal HD
Internal VD
Video out
EXT_TRIG
FIX_TRIG
(Common)
10 20 30 40 50
Exposure time
V1
V2
V3
SUB
FVAL
DVAL
LVAL
Number of the
effective lines [Y]
High speed
transfer ［X+a］
High speed transfer ［f+g-X-Y］
Blanking (Front)
[BLK_F]
Number of the effective lines [Y]
Total number of the line at 1 frame [TOTAL_LINE]
Blanking (Back)
[BLK_B)
CCD effective
lines
Blanking
(Front)
Effective
lines
Optical black
+
Dummy bit
Blanking
(Back)
Optical black
