SenTech STC-CL500E - 2 Camera Output Timing Charts; 2.1 Normal Mode Timing

No.11S031-03
7
STC-CL500E/CLC500E
Users guide Rev. 1.3
2 The camera output timing charts
2.1 Normal mode (Setting: address: 10H, value: 1XX0XXXX)

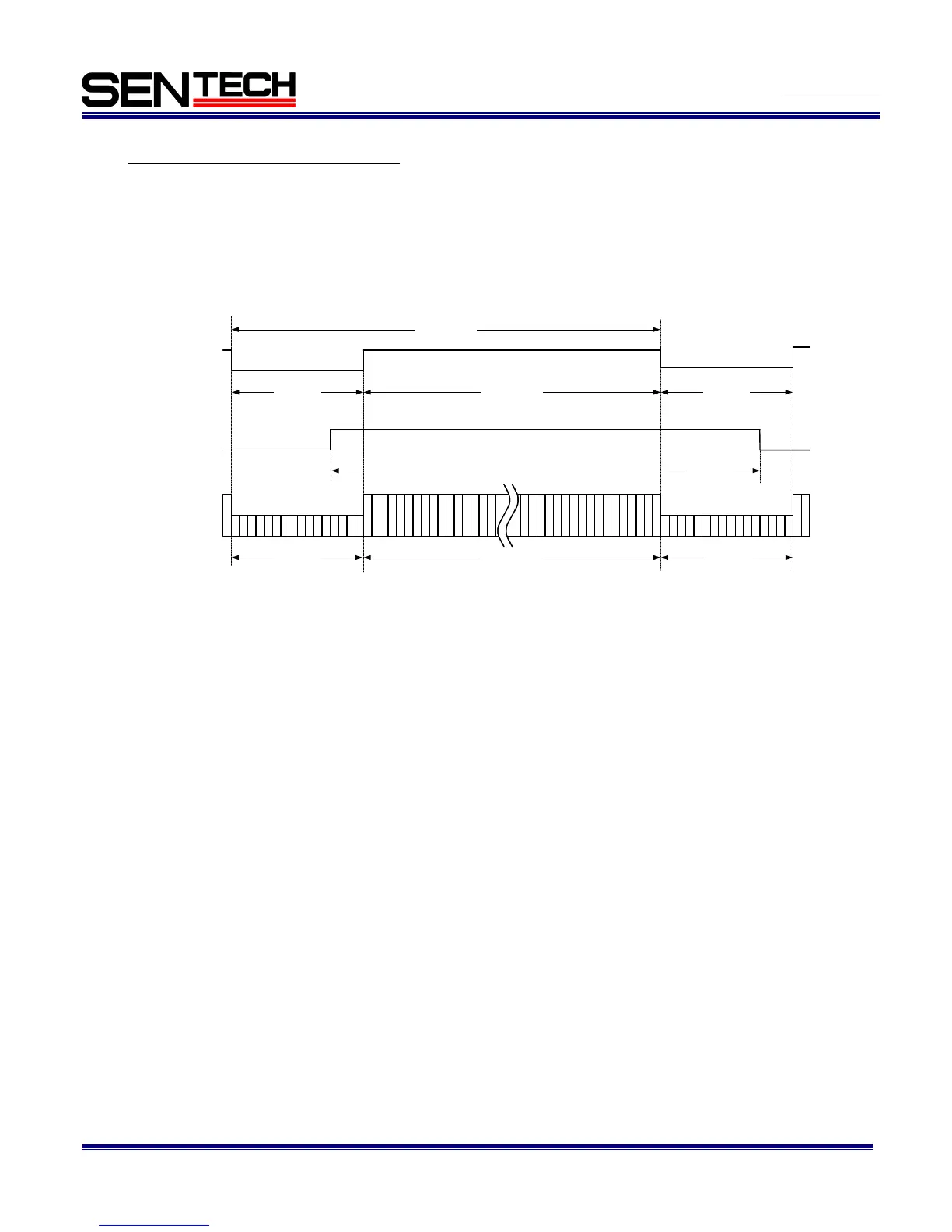

2.1.1 The horizontal timing
1 CLK = 23.4378 nseconds (42.666 MHz)
72 CLK1224 CLK
Video out
LVAL
DVAL
Horizontal blanking
1296 CLK
One horizontal (1H)
1224 CLK72 CLK
72 CLK
Video output active term
Horizontal blanking
72 CLK
52 CLK
FVAL
20 CLK
