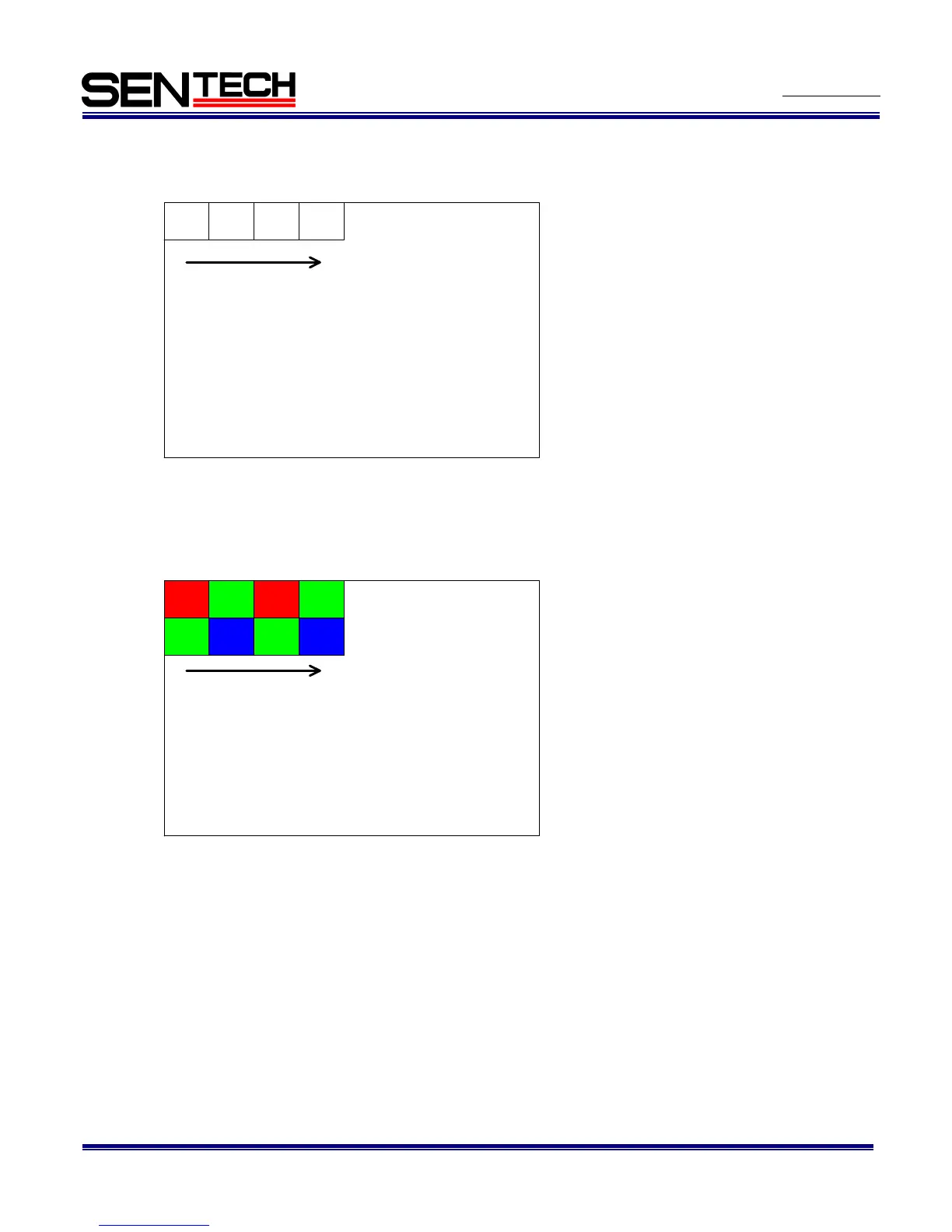

2.4 The 2 taps transferring image
STC-CL500E (Monochrome type)
Pixeln of DataA: The transferring pixel from the first tap
Pixeln of DataB: The transferring pixel from the second tap
n: The order number
STC-CLC500E (Color type)
Pixelmn of DataA: The transferring pixel from the first tap
Pixelmn of DataB: The transferring pixel from the second tap
m: The line number
n: The order number
Pixel1 of
DataA
Pixel2 of
DataB
Pixel1 of
DataB
Pixel2 of
DataA
Pixel11 of
DataA
Pixel12 of
DataB
Pixe11 of
DataB
Pixel12 of
DataA
Pixel21 of
DataA
Pixel21 of
DataB
Pixel22 of
DataB
Pixel22 of
DataA
