Installation Instructions
11. Connecting the overflow line: The brine overflow fitting is located on the
outside of the salt container approximately 12” down from the top. Connect 1/2” drain
tubing to the overflow fitting and run it to the nearest floor drain. This line is a gravity
flow line and cannot be run overhead or cannot connect to a drain that is higher than
the overflow fitting.

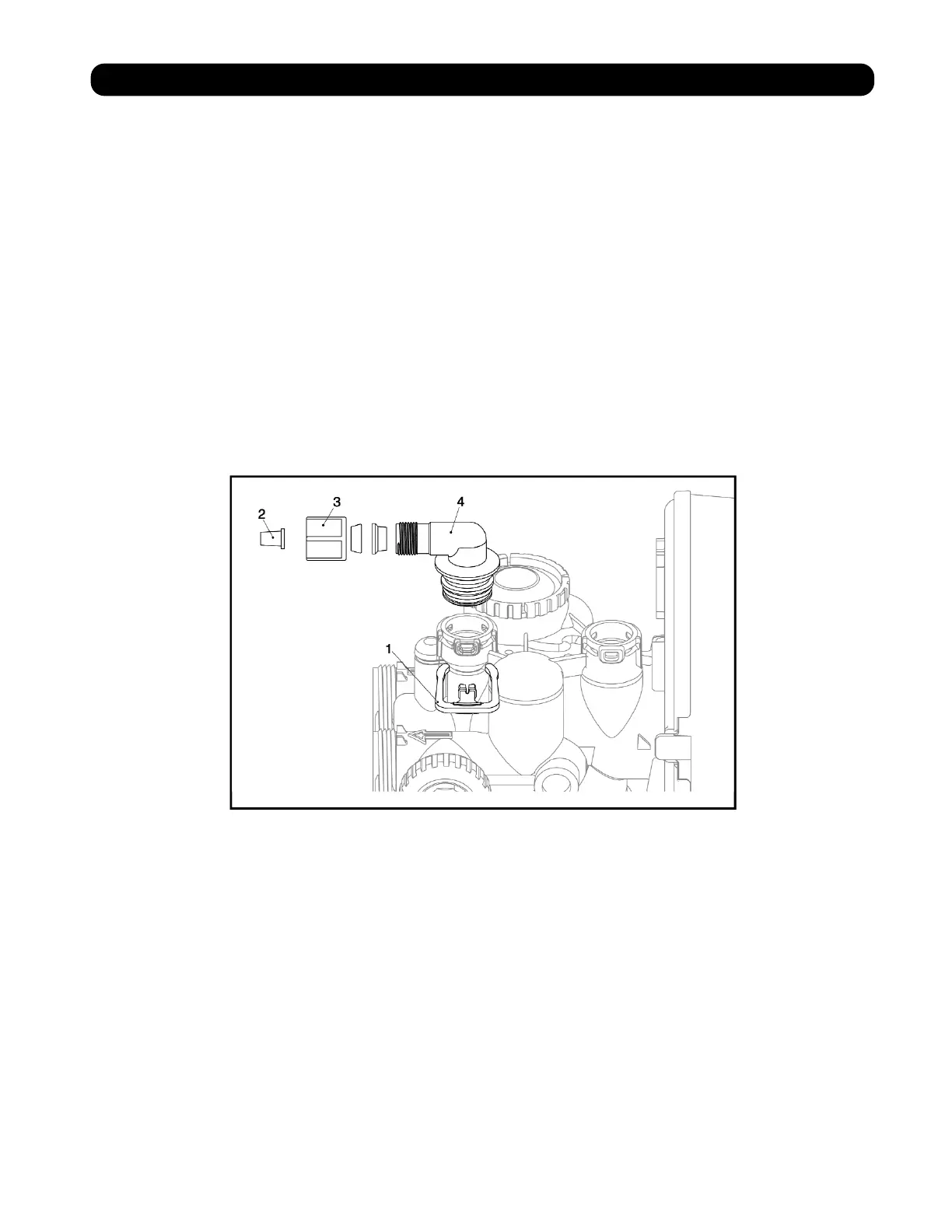

12. Connecting the brine line: A 3/8” brine line approximately 4’ long is attached to
the salt container and is supplied with the tube insert (#2) in the end of the brine line.
(See Figure 6) Unscrew the brine nut (#3) and slide it over the end of the brine line.
Insert the brine line into the brine fitting. (#4) and tighten the brine nut (#3) hand tight
plus 1/2 turn with pliers. Caution: Do Not Over-tighten.
The water softener is equipped with a 15-foot power cord with built-in transformer. Plug the
power cord into a standard (120V 60Hz) electrical outlet. It will take approximately 10
seconds before you will see the display (this is normal). The water softener is now ready to
be programmed.
