 Activation / Events / MARK END OF MEASURE
b. Setup Relay A:
 Source = Analyzer
 Function = Warning
 Failsafe = Yes
 Warning Levels = determined by specic needs
3. The wiring is dierent for the model 5500X-XX than shown in Figure B-2. The changes are:
a. Connect the Sample Sequencer 6 End-of-Batch terminals to the Hach terminals labeled NO and COM on
OUTPUT 2.
b. Connect the Sample Sequencer 6 Analyzer Alarm terminals to the Hach terminals labeled NO and COM on
OUTPUT1.
Recommended Sequencer Timer Settings
It is recommended the following times be programmed into the Sample Sequencer 6 when using the Hach Series 5500
analyzers:
Sample Time.......... 20:00 minutes
Reference the “Operation” section beginning on page 20 for instructions on programming the sample timers.

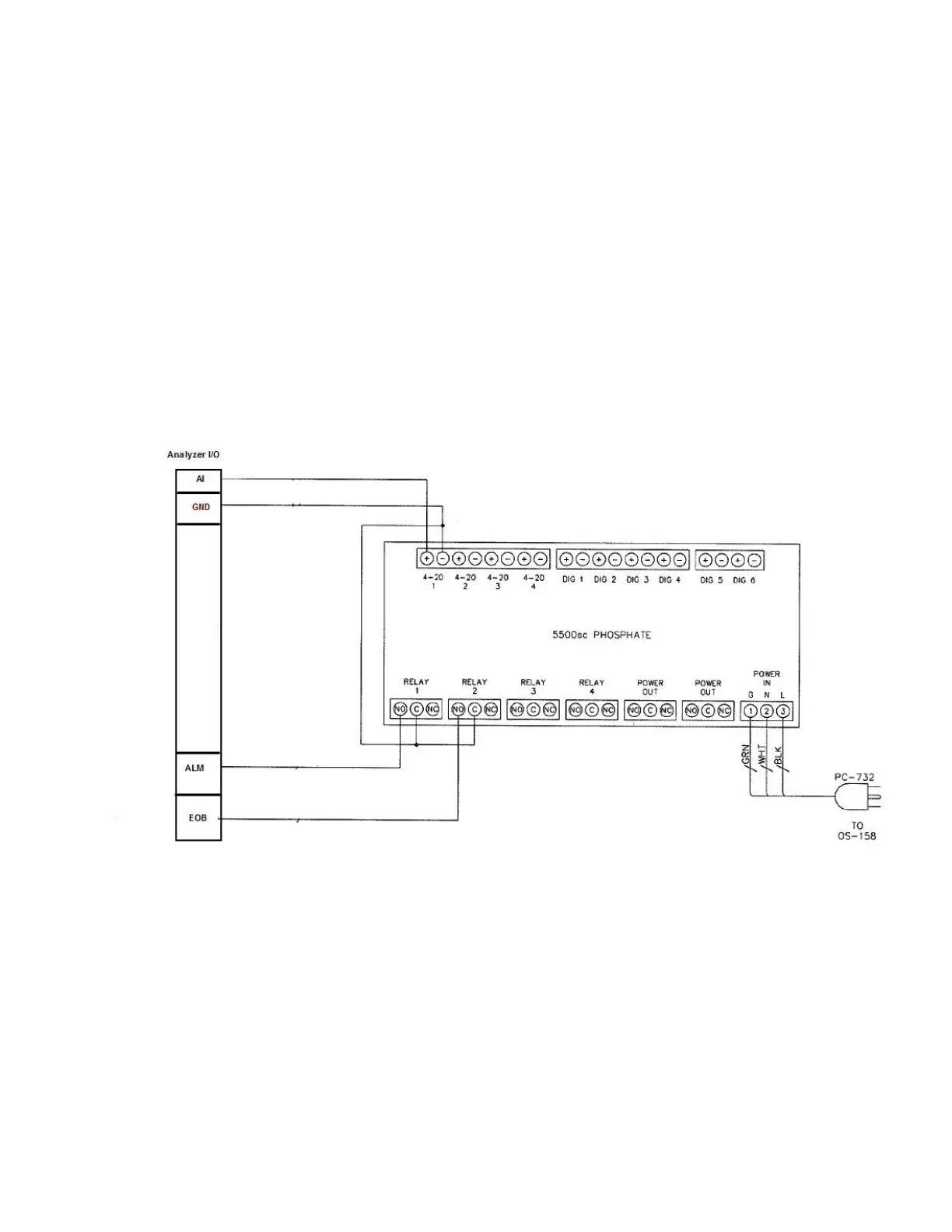

Figure B-2.
