Sentry Sample Sequencer 6 - Installation; Unpacking; Mounting

Sentry Sample Sequencer 6 Controller 11
 For more information on these features, refer to Appendix D on page 39.
Optional Manifold Switching Valve
The Sample Sequencer 6 may be used to control most manifold valve arrangements; however, the Sentry Manifold
Switching Valve is a convenient optional accessory for obtaining representative samples.
The patented Sentry Manifold Switching Valve
 incorporates block and bleed design
 provides continuously owing samples
 eliminates areas where cross contamination can occur
 available in either four or eight sample line models
Contact Sentry Equipment for more information about this optional sampling valve.
Installation
This instrument should be installed by qualied technical personnel to ensure adherence to all applicable electrical codes.
To ensure the protection provided by this equipment is not impaired, this equipment must not be installed or used in any
manner other than that which is specied in this manual.
Unpacking
1. Carefully remove the Sample Sequencer 6 from its shipping carton.
2. Inspect it for any damage.
3. Report any damages to the shipper at once.
Mounting
Mount the Sample Sequencer 6 close to the analyzer to permit viewing of both devices at the same time.
 The sample sequencer mounts to a at surface.
 Mounting method must be capable of supporting at least 5lbs (2.27kg).

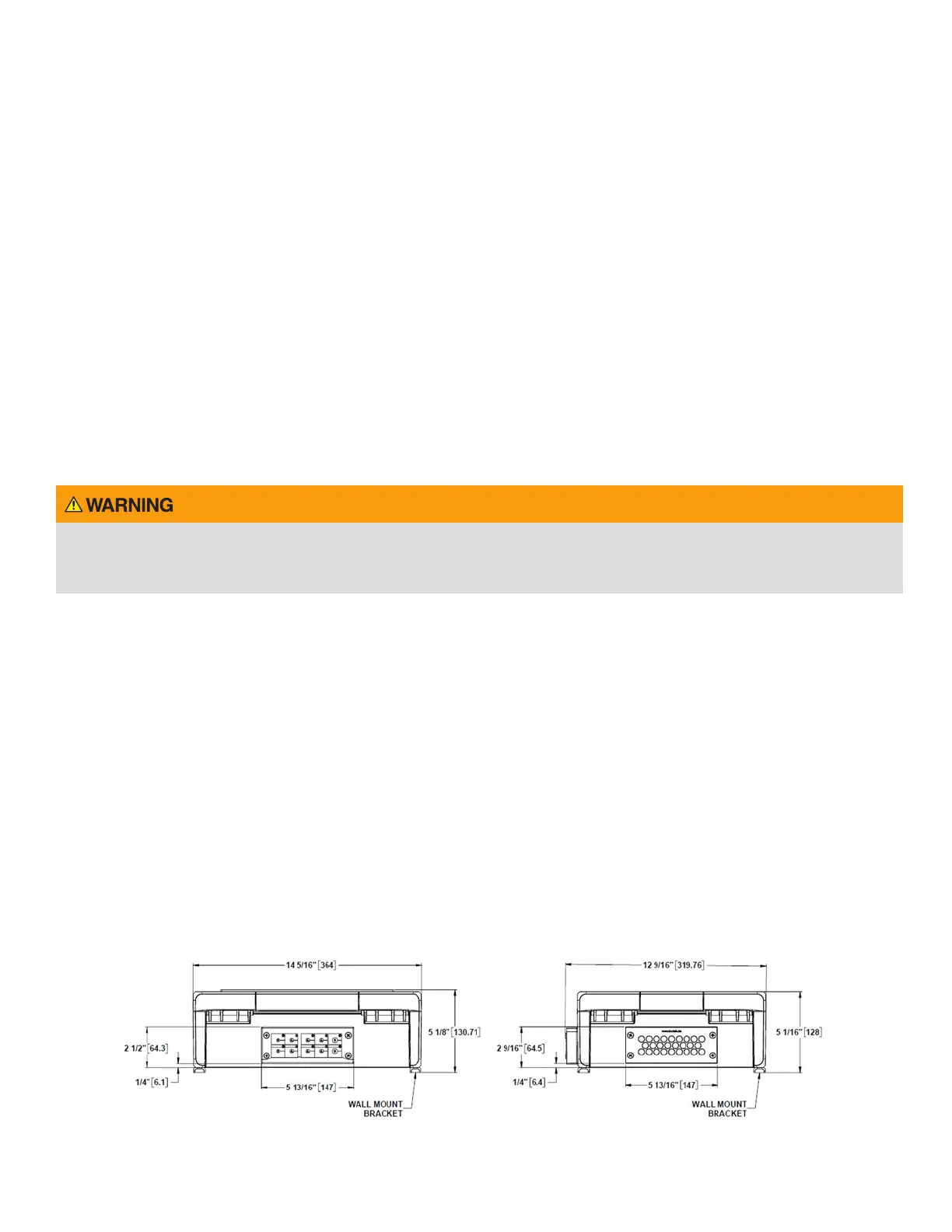

Figure 2. Enclosure Dimensions: Bottom View
