Sentry Sample Sequencer 6 Controller 37

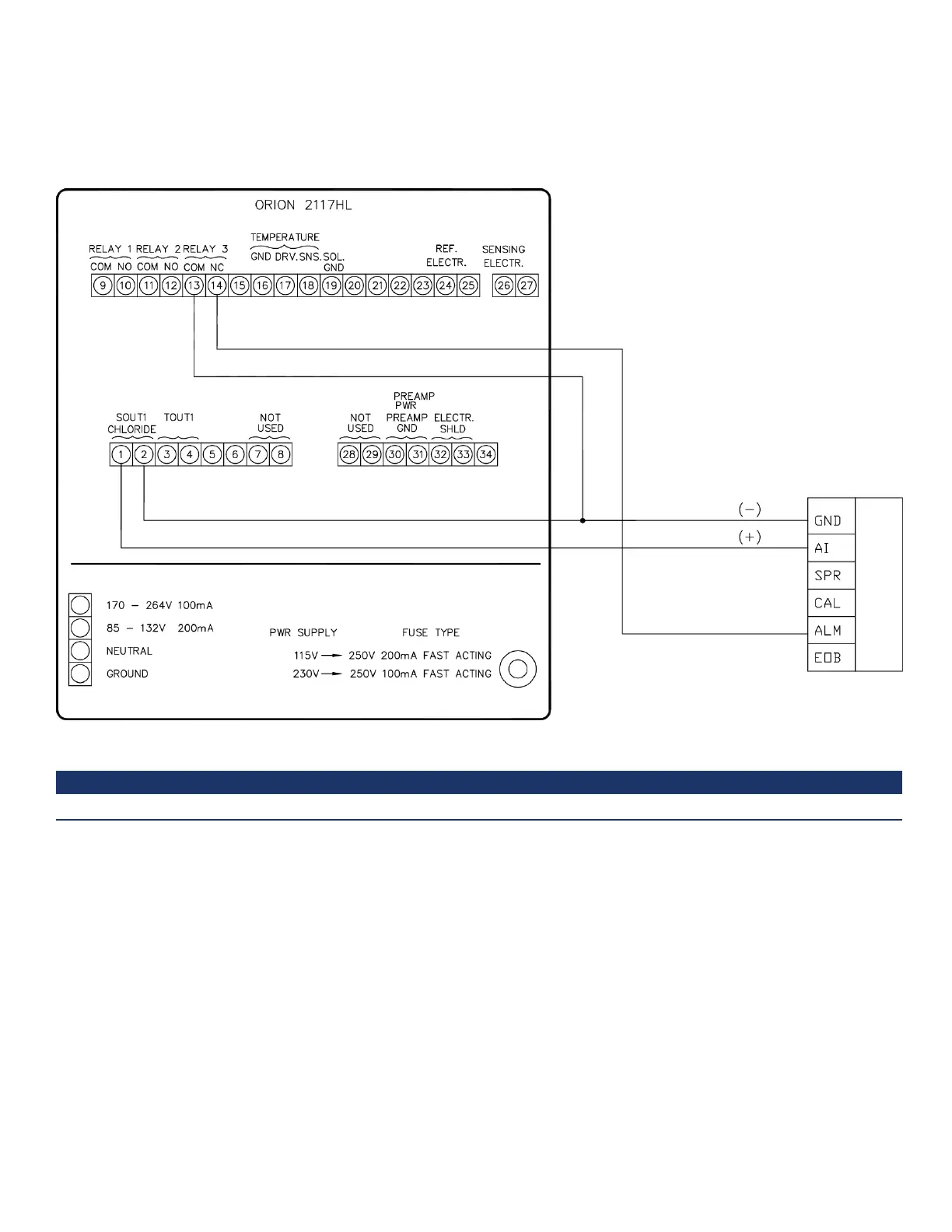

Appendix C: Typical Continuous Analyzer Wiring,
Reference Orion 2117LL, 2117HL, 2118XP, 2111LL, and
2111XP
 NOTE
Linear output function must be enabled. The factory default is Logrithmic.
2117HL shown in above example.
