3.5 Pneumatic or hydraulic free-spooling control
installation

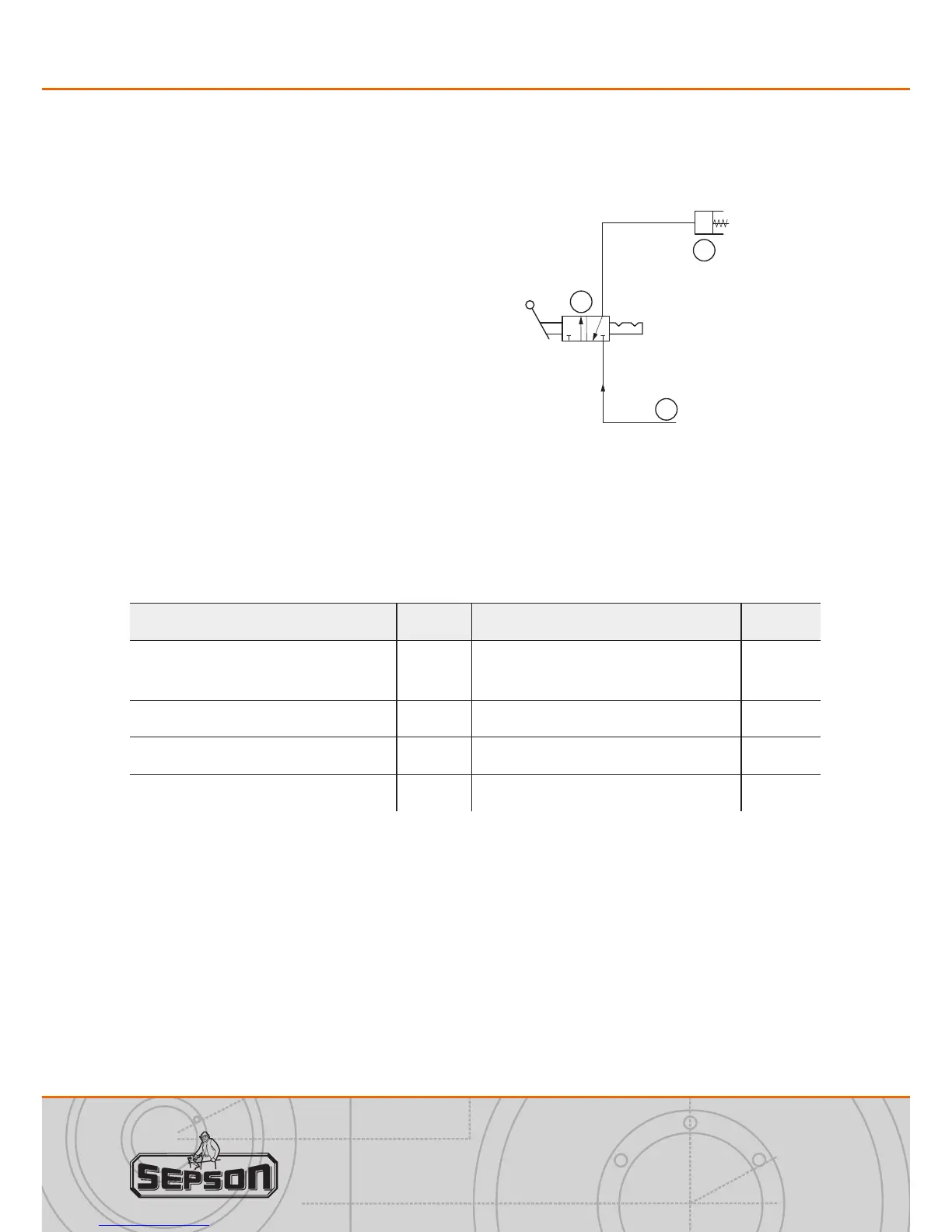

Connect the free-spooling control to
the winch according to the circuit. It is a
threaded connection on the winch’s free-
spooling cylinder. See table on page 21.
- If the winch has a pneumatic free-
spooling control, the air pressure shall
be 6-10 bar.
- If the winch has a hydraulic free-
spooling control the oil pressure
must not exceed 40 bar.
Check free-spool clutch.
0018-01
1
2
3
1. Air/oil supply
2. Control valve
3. Free-spooling valve
Art. No. mm Art. No. mm
73.06- 73.07- 73.08-
60.08- 60.15- 60.16-
16 73.09- 9
63.01- 63.02- 21 63.53- 10
63.35- 11 62.56- 12
63.31- 9 63.34- 13
Minimum allowed movement of the free-spool clutch
