Sepura SC20 series Service Guide

4. Inspect the keypad, paying particular attention to the keypad bezel lugs, after removal. If the
lugs are damaged, the keypad bezel must be replaced.
Fit the keypad and keypad bezel
1. Place the keypad onto the radio in the correct orientation. Lay the keypad bezel over the
keypad.

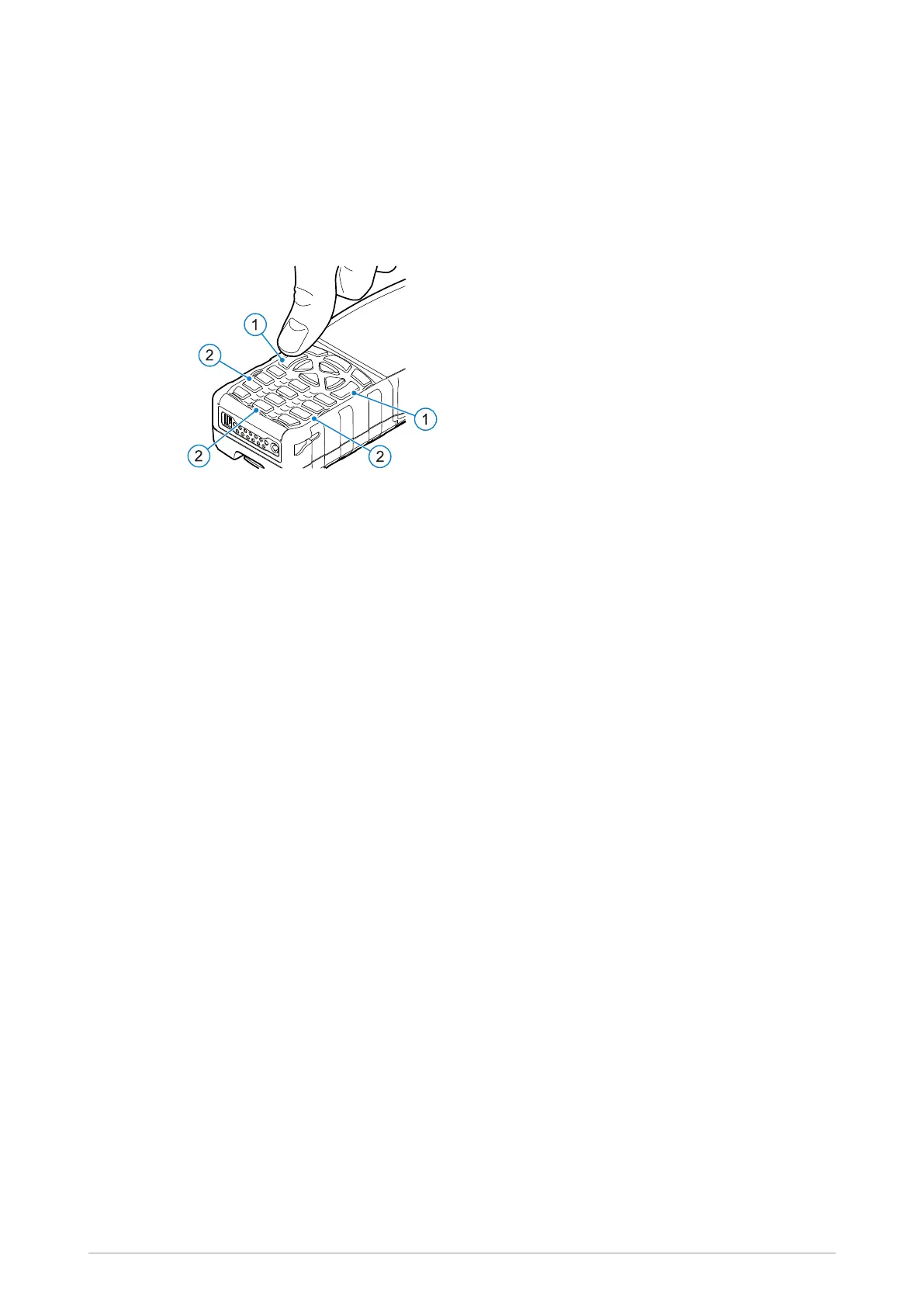

2. Carefully push down on the keypad bezel lugs in the order shown. An audible click is heard
when the snap hooks latch (securing the keypad into position). Ensure the keypad is secure.
3. After fitting the new keypad and bezel, all keys should be pressed to check they operate
correctly.
To fit the colour bar, see the secion Colour Bar on page28 for details.
Level 1 Service Guide 31

Sepura SC20 series Specifications

General

Operating Temperature	-30°C to +60°C
Frequency Bands	380-430 MHz
GPS	Integrated GPS, GLONASS
Bluetooth	Bluetooth 4.0
Security	TEA1, TEA2, TEA3
Transmit Power	1W, 3W, 10W
Battery Life	Up to 14 hours (standard battery)
