Sepura SC20 series Service Guide

Keypad and Keypad Bezel
It is recommended to replace the keypad if the keys are malfunctioning or if there are deep scratches
on the keypad. The keypad domes must also be checked for damage, dust or contamination before
changing the keypad.
Sometimes the keypad bezel is changed to another colour, for example for the purpose of identifying
the radio as belonging to a certain group of operators. Note that this procedure is also used when
changing the coloured keypad bezel (see Spare parts list on page1).
Caution! Fragile item. Handle the keypad and keypad bezel with care. Do
not use force to remove or refit the keypad - the snap hooks on the keypad
bezel can be easily broken under force.
Tools required
SC20 / SC21 Keypad Bezel/Colour Bar Removal Tool (700-00835)
Remove the keypad and keypad bezel
Warning! Protect your eyes. Wear PPE to protect your eyes from loose
debris that may be behind the keypad.

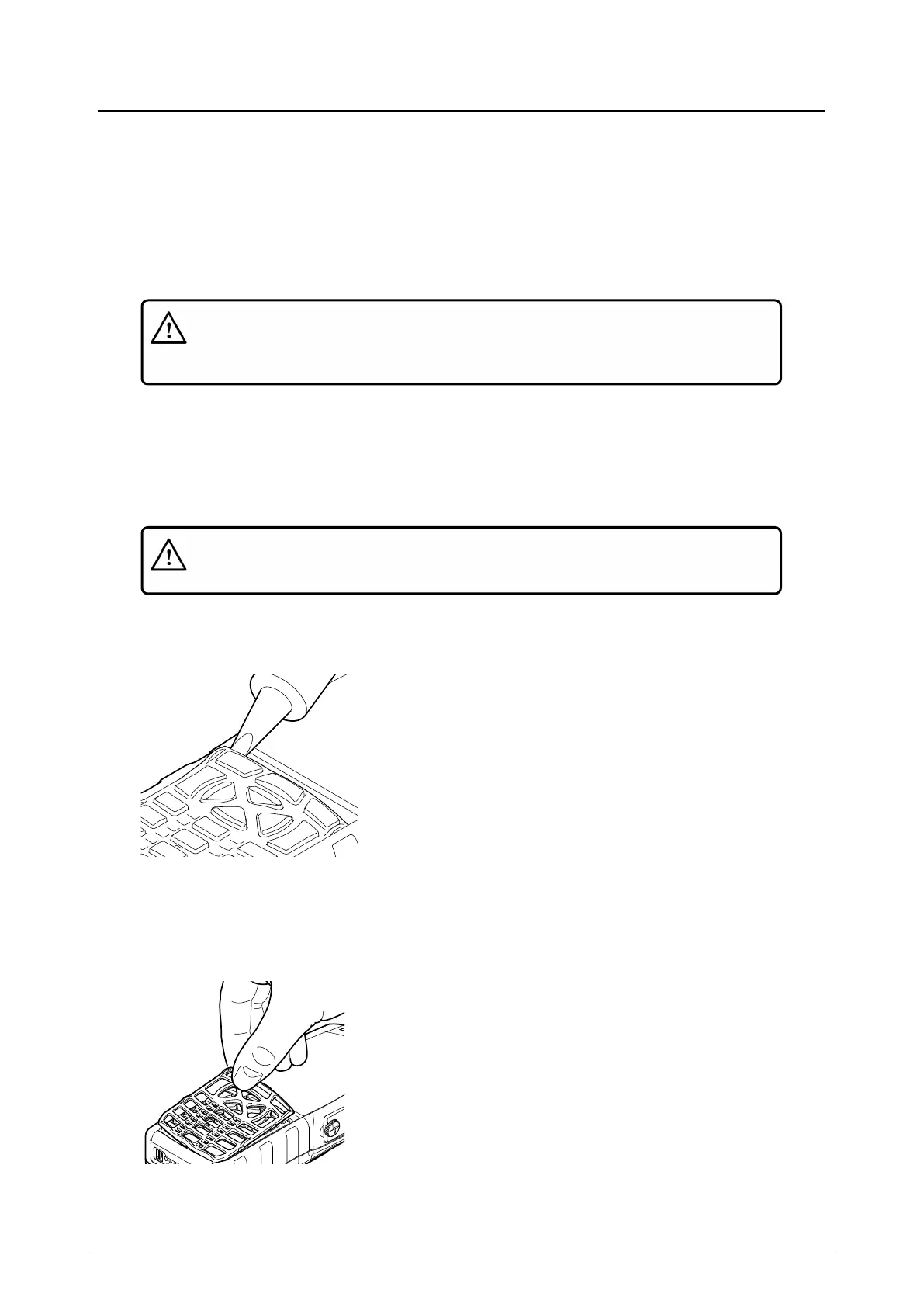

1. Hold the radio firmly. Insert the tool between the casing and the keypad on the right-hand side
of the keypad bezel at the snap hook. Carefully ease the keypad bezel unlatched.
2. Repeat at the snap hook on the left-hand side of the keypad bezel, and then at the bottom of
the Keypad.
3. Carefully peel the keypad bezel away from the radio front cover assembly starting at the top
right-hand corner. Carefully lift the keypad) and remove.
30 SC20 Series hand-portable radio
