Sercel VE432 DPG - Analog Pilot Cable

52 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

CONNECTING A DPG

ANALOG PILOT cable

0311385 Issue : April 1999

2-16

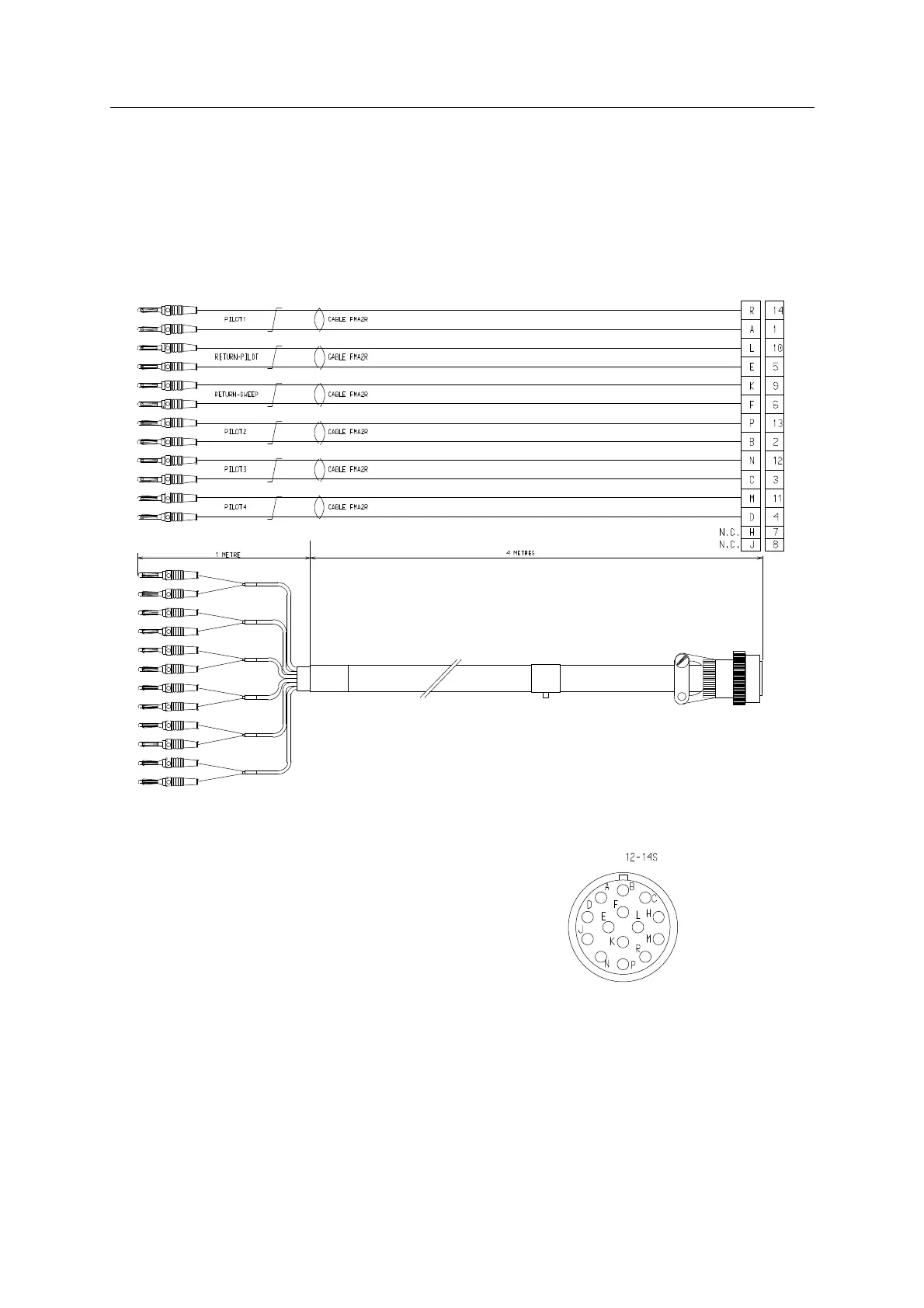

ANALOG PILOT cable

(Cable part No. 1717075950)

Banana plug

Part No. 5110003 (red)

5110053 (black)

12-14S plug solder side

12-14S plug

Part No. 5011210
