Sercel VE432 DPG - Recorder Cable

CONNECTING A DPG
RECORDER cable
0311385 Issue : April 1999
2-15

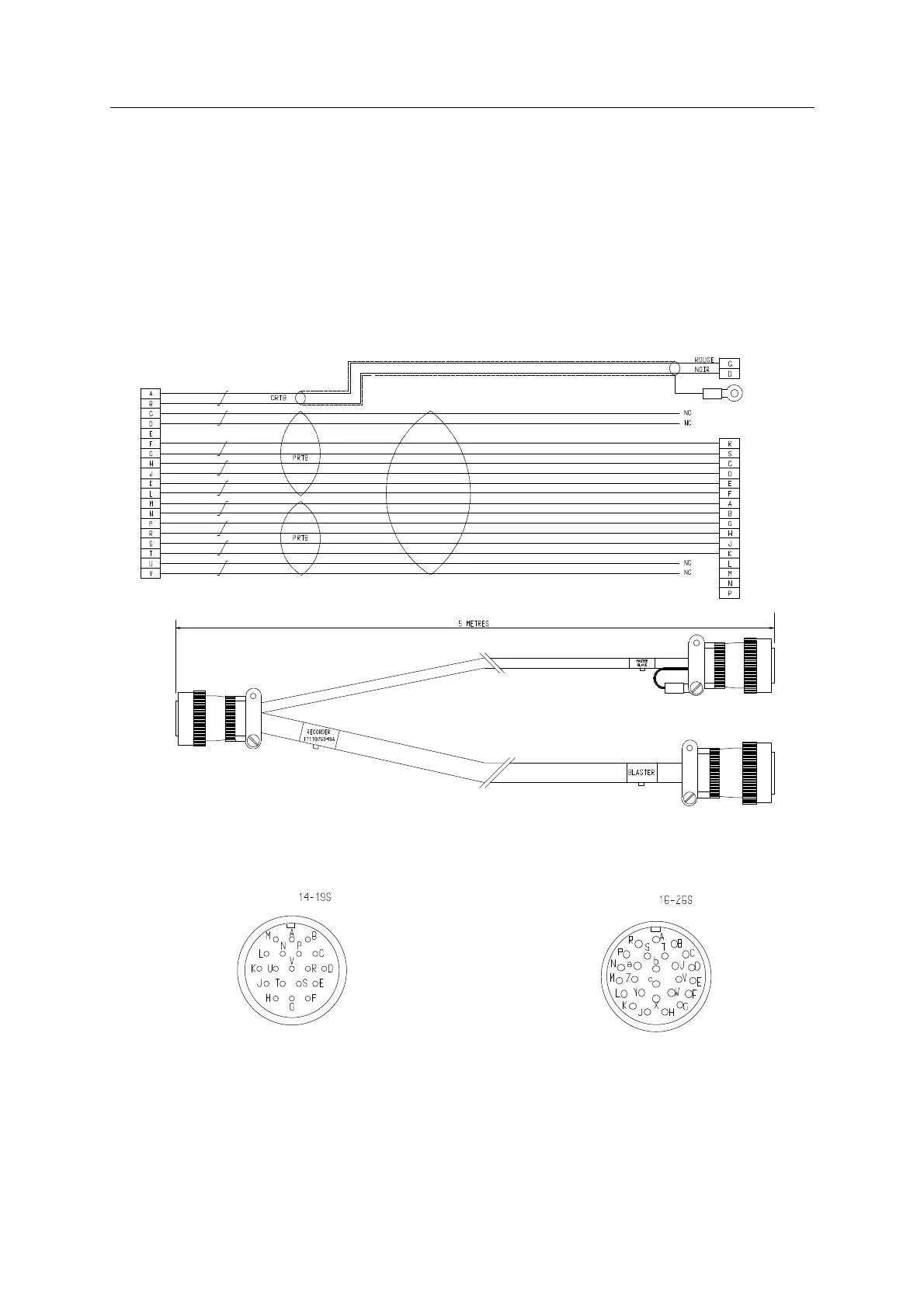

RECORDER cable
(Cable part No. 1717075949)
14-19s plug solder side 16-26S plug solder side
14-19S
plug
SN388VE432 DPG
14-19S plug
Part No. 5010952
14-19S plug
Part No. 5010952
16-26S plug
Part No. 5011161
14-19S plug
16-26S plug
EGOIN
EBLAST
FO
TBIN
RDYOUT
RDYIN
Not used
Not used
RDYIN
FO
TB
EXT_GO
RDYOUT
CLK IN
FO PULSE
