PROFINET diagnostics alarms
PROFINET IO Configuration
10.4 PROFINET diagnostics alarms
10.4.1 Switching on the diagnostic alarms
The PROFINET interface supports diagnostic alarms in the event of a unit fault. These
diagnostic alarms are deactivated by default. Proceed as follows to activate the diagnos-
tics alarms in STEP 7 HW Config:
1. Highlight slot 0.
2. Right-click on it and select 'Object properties ...' from the context menu.
A window is displayed.

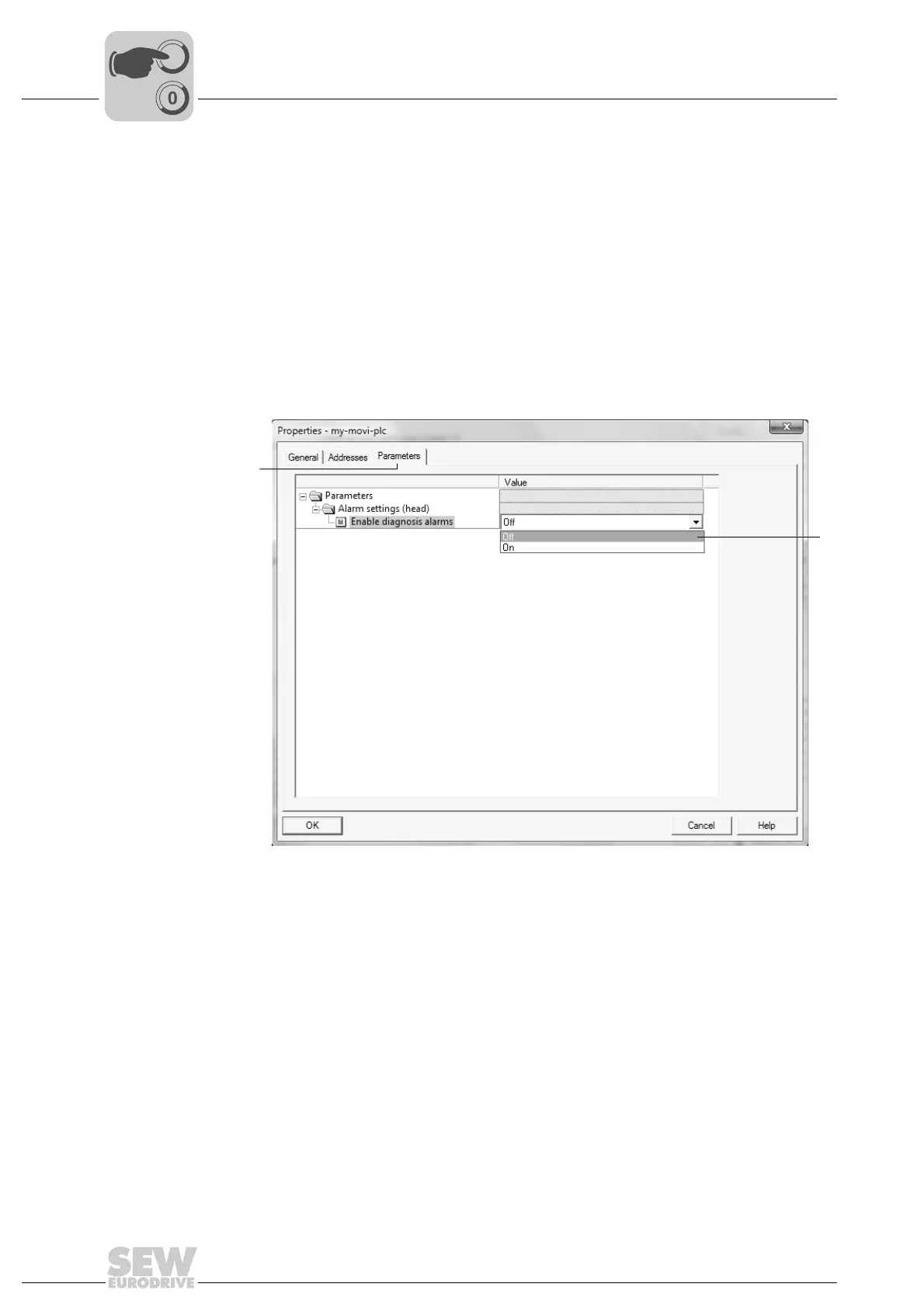

3. Select the "Parameters" tab [1].
4. In 'Activate diagnostics alarms' [2], set the alarms to 'ON'
64646AXX
[1] "Parameters" tab
[2] 'Activate diagnostics alarms' node
[1]
[2]
