11
Service
Error diagnostics
Manual – MOVISAFE
®
CSB51A Safety Option
42

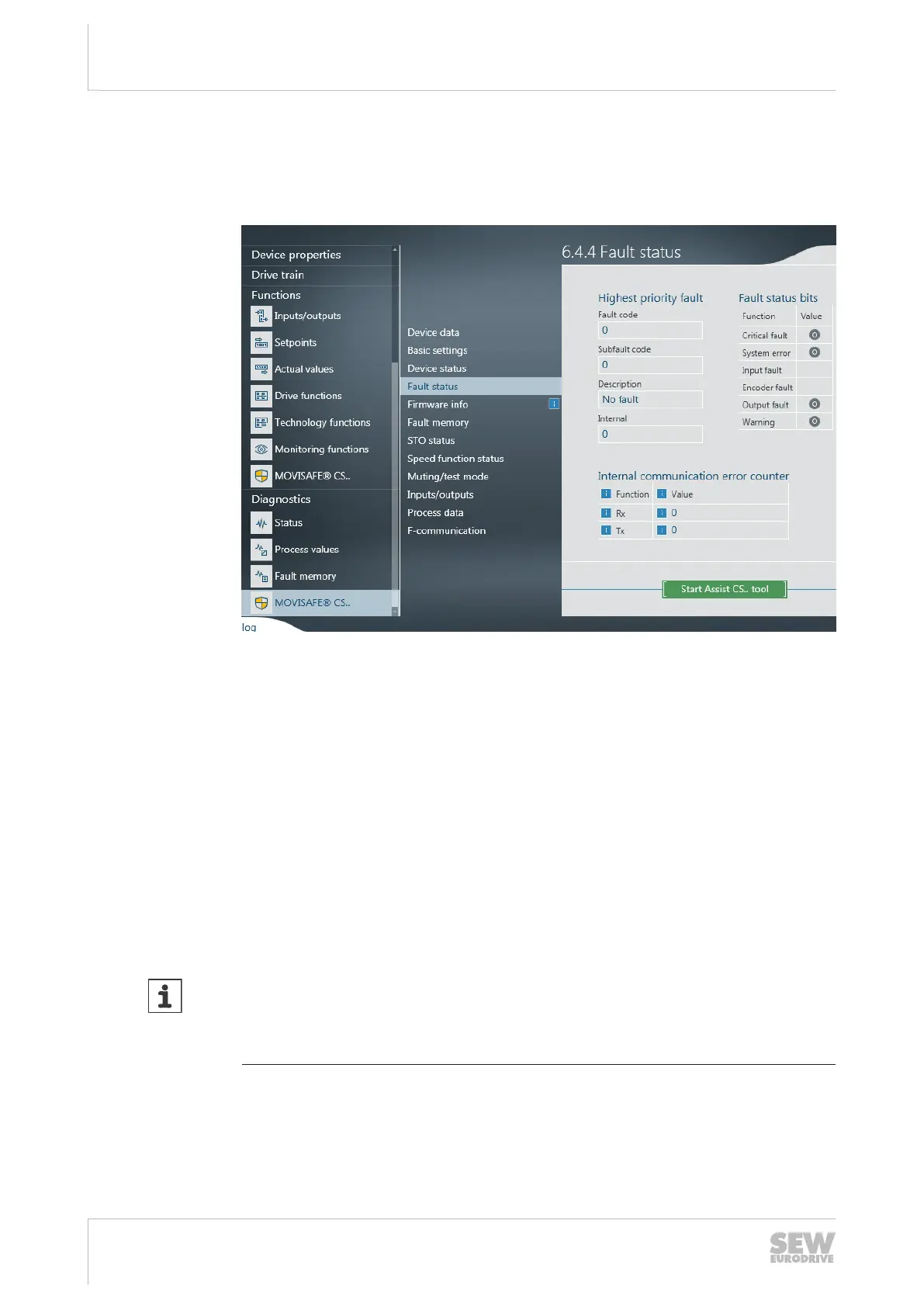

11.4.2 Diagnostics with MOVISUITE
®
Assist CS..
The current fault of the safety option is displayed with the corresponding fault descrip-
tion in the "Diagnostics" segment in the menu command [MOVISAFE
®
CS..]>[Fault
status].
9007221132519563
11.4.3 Diagnostics with PROFIsafe connection
The CSB51A safety option with PROFIsafe connection triggers a diagnostic alarm on
the F-PLC in the data exchange between the F-PLC (fieldbus master) and the safety
option (fieldbus slave) in case of a fault. Simultaneously, the associated error code is
transferred via the communication connection.
The F-PLC responds to the dispatched diagnostic alarm if the Diagnostic alarm as-
sembly parameter is enabled for the safety option in the F-PLC per configuration. De-
pending on the fieldbus used, the fault code of the safety option can be evaluated in
the F- PLC. A diagnostic alarm does not trigger a fault response in the F-PLC (default
setting of the safety option in the F-PLC).
The safety option has PROFIsafe and assembly-specific fault codes. All fault codes of
the CSB51A safety option are listed in a fault table.
INFORMATION
You can find the structure and the evaluation of a diagnostic data set in the F-PLC in
the respective manual of the fieldbus master. In addition, ensure that the current
device description file of the SEW‑EURODRIVE drive system is always installed in
the engineering tool of the F-PLC during configuration.
25931075/EN – 04/2019
