214
System Manual – MOVITRAC® B
8
Installing optional power components
Installation
8.2.17 PE line connection according to EN 61800-5-1
Earth-leakage currents ≥ 3.5 mA can occur during normal operation. Observe the follow-
ing for reliable PE connection:
• Supply system lead < 10 mm
2
:
– Route a second PE conductor with the same cross section as the supply system
lead in parallel to the protective earth via separate terminals, or
– use a copper protective earth conductor with a cross section of 10 mm
2
• Supply system cable 10 – 16 mm
2
:
– Copper protective earth conductor with the cross section of the supply system
lead.
• Supply system cable 16 – 35 mm
2
:
– use a copper protective earth conductor with a cross section of 16 mm
2
• Supply system lead > 35 mm
2
:
– Copper protective earth conductor with half the cross section of the supply system
lead.
8.3 Installing optional power components
Input contactor for several units
Connect a line choke for limiting the inrush current:
• For 5 or more 3-phase units
• For 2 or more 1-phase units

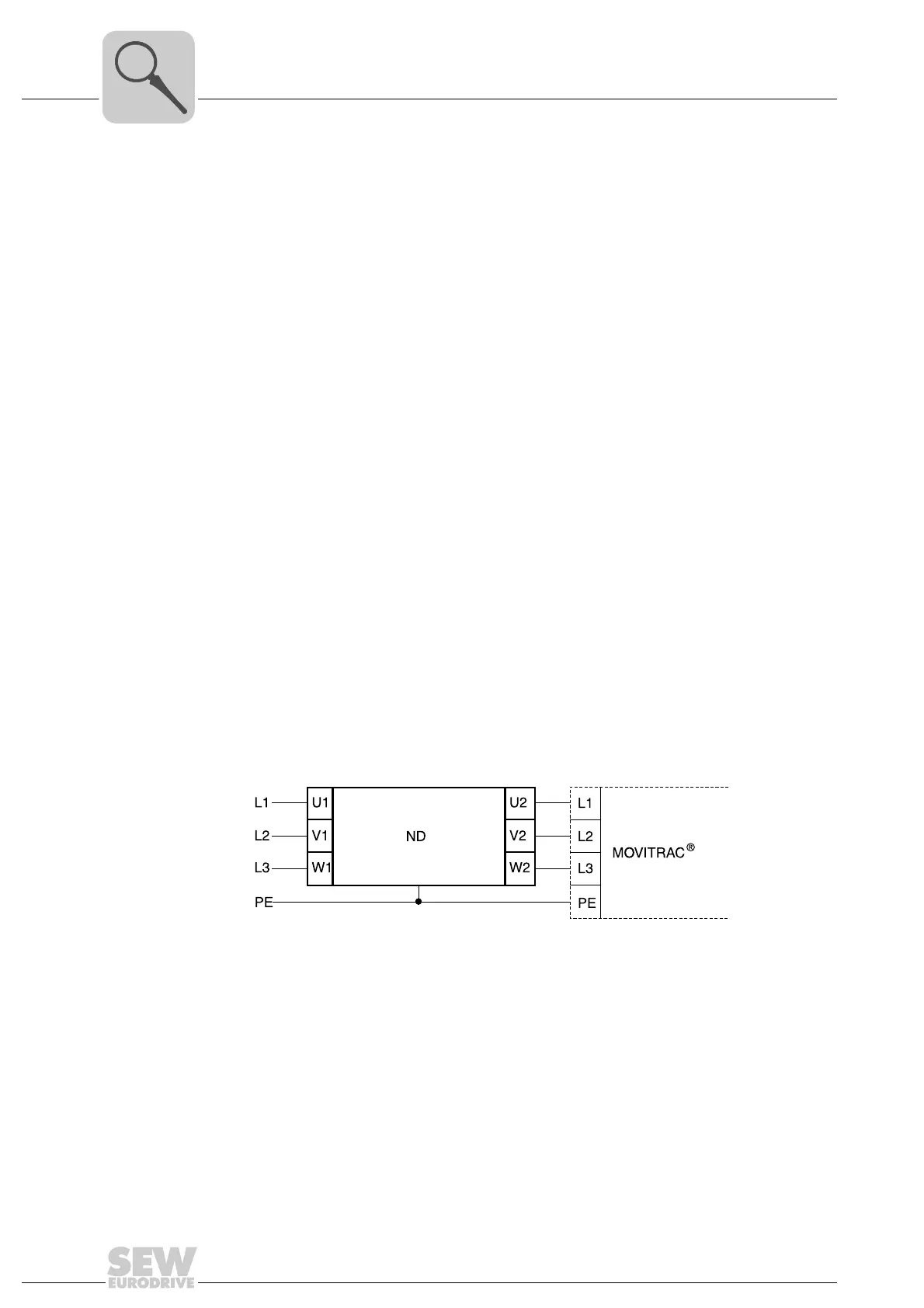

8.3.1 ND line choke
Connecting ND series line choke
9007199272823563
B
