Sewha SI 410 - Weighing mode 1. - Limit mode (A Dry contact)

- 32 -

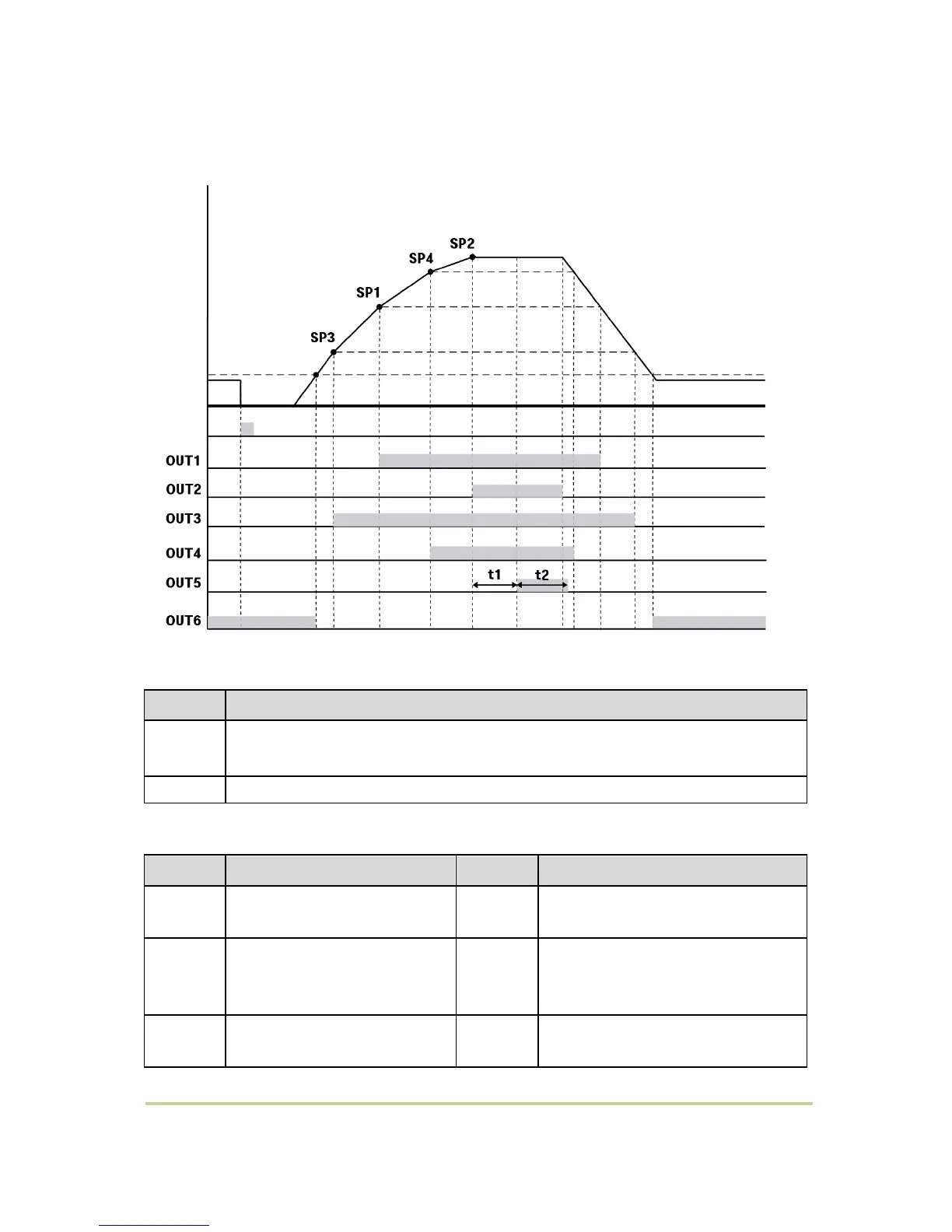

◆ Weighing mode 1. – Limit mode (A Dry contact) -User’s choice relay output 2
(Function 500-01)- relay output order is selectable by user
Time
Time
Contents
t1
Finish Relay Output Delay Time (Function 510)
When Function 102-3 or 102-6, save the date after t1 time.
t2
Finish Relay Output Time (Function 520)
Relay output
Relay
Condition
Relay
Condition
OUT 1
Current weight ≥ SP1 (ON)
Current weight < SP1 (OFF)
OUT 4
Current weight ≥ SP4 (ON)
Current weight < SP4 (OFF)
OUT 2
Current weight ≥ SP2 (ON)
Current weight < SP2 (OFF)
OUT 5
After SP2
After t1 set time
During t2 set time (ON)
OUT 3
Current weight ≥ SP3 (ON)
Current weight < SP3 (OFF)
OUT 6
Within near zero range (Function
HF29) (ON)
