Shark BR Series User Manual

Shark BR 97-723 • REV. 11/06
23
PRESSURE WASHER
OPERATOR’S MANUAL

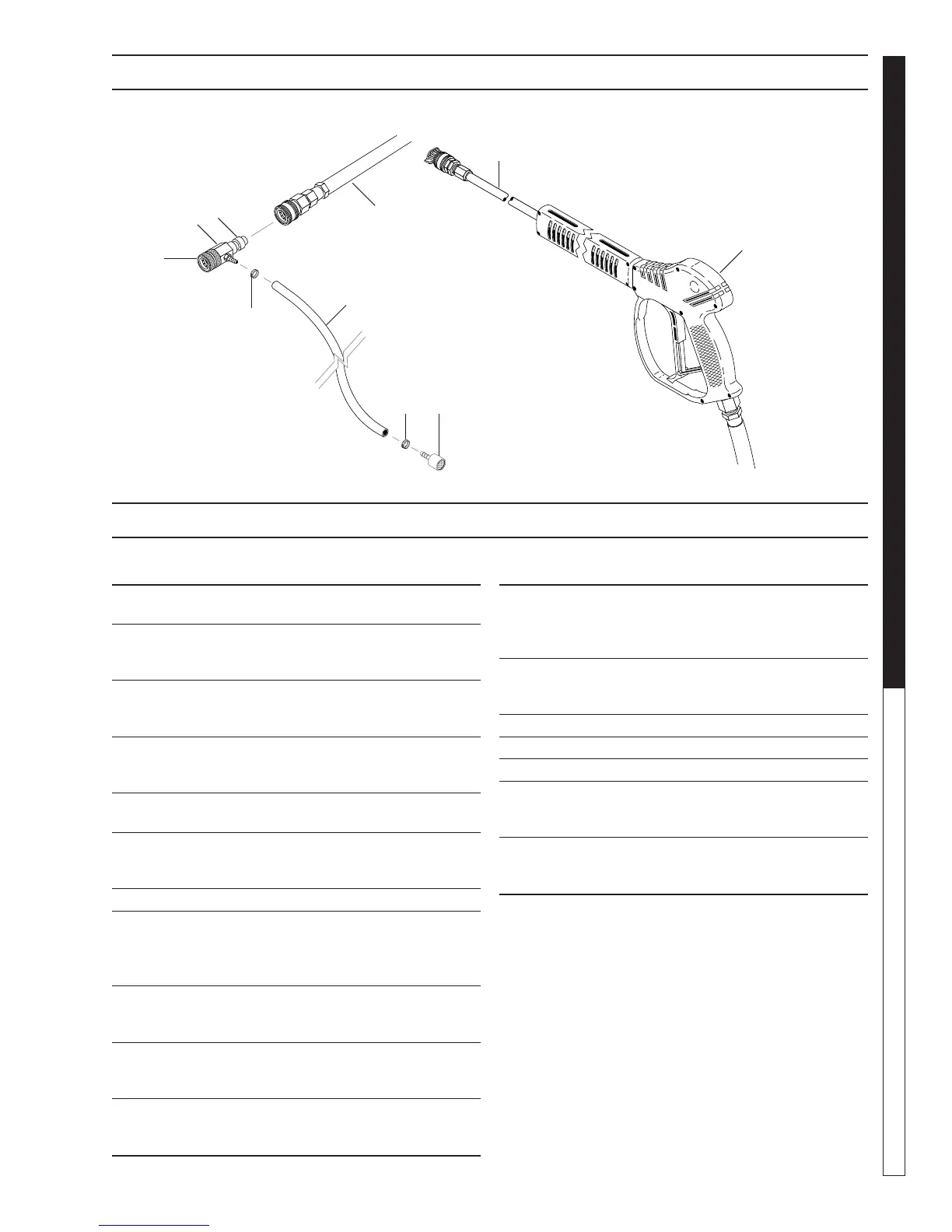

HOSE & SPRAY GUN ASSEMBLY
HOSE & SPRAY GUN ASSEMBLY PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 4-0110331 Wand, Side Grip w/Couplers 47.5"
(373539, 404029) 1
4-012192 Spray Gun w/Wand (5000 PSI),
w/Coupler (405039E, 455039E,
455034E, 455037E) 1
4-011143A Wand, SS V.P. Wand, (AL 344)
w/Coupler, w/Soap Nozzle
(373534) 1
4-0111341A Wand, V.P. w/Coupler & Nozzle,
X-Series (353237, 373537, 404027,
442537) 1
2 4-012402 Spray Gun Assy, w/Nipple (373539,
404029) 1
4-01246 Spray Gun, Shut-Off, AP 1000
(442537, 353237, 373537, 404027,
304037) 1
4-01212 Gun, Shut-Off (373534) 1
3 4-02043450F Hose, 3/8" x 50 ft., 2 Wire, TUFF-
Skin, w/5800 PSI Coupler
(405039E, 455039E, 455034E,
455037E) 1
4-020750C Hose, 3/8" x 50 ft., 2 Wire, Pressure
Flex, w/Coupler (373539, 404029,
373534) 1
4-02093450BC Hose, 3/8" x 50 ft., 1 Wire
Blue, w/Coupler (442537,
353237) 1
4-02073450RC Hose, 3/8" x 50 ft., 2 Wire Blue,
w/Coupler (304037,373537,
404027) 1
ITEM PART NO. DESCRIPTION QTY
4 3-12021 Injector, Detergent, Non-Adj, 3-5
GPM, 0.083 (304037,353237,
373534,373537,373539,442537,
404027,404029) 1
3-1208 Injector, SS, Non-Adj, 2.0-4.0GPM,
5500PSI (405039E,455034E,
455037E,455039E) 1
5 2-1904 Strainer, Plastic, 1/4" Hose Barb 1
6 4-02080000 Tube, 1/4" x 1/2", Clear Vinyl 6 ft.
7 2-9040 Clamp, Hose, .46-.54 ST 2
8 2-20021 Coupler, 3/8" Female, 11,000 PSI,
Snap-Tite (405039E, 455034E,
455037E, 455039E) 1
9 2-20022 Nipple, 3/8" Fem, 11,000 PSI
(405039E, 455034E, 455037E,
455039E) 1
8
6
1, 2
3
9
4
57
7
1, 2
