Shark BR 97-723 • REV. 11/06
31
PRESSURE WASHER
OPERATOR’S MANUAL
AR - AL 607 #5-3208
7-8 Gpm, 4200 Psi
ITEM PART NO. DESCRIPTION QTY
1 83-005150010 Check Connector 1
2 83-005060108 ‡ O-Ring 2068 3
3 83-005100002 Shutter Spring 1
4 83-004120000 Shutter 1
5 83-004060109 ‡ O-Ring 631290 SH 1
6 83-005170102 1/4 G Plug 1
7 83-005030101 M8 Lock Nut 1
8 83-005100100 Knob 1
9 83-005150101 Washer 1
10 83-005400403 4000 PSI Spring (Black) 1
11 83-005150011 Stem Guide Union 1
12 83-005000102 ‡ Back Ring 2
13 83-005060106 ‡ O-Ring 2031 1
14 83-005160502 Stem AL606 1
14 83-005160514 Stem AL607 1
15 83-005106301 Spring Pin 1
16 83-005000101 Back Ring 2
17 83-005060101 ‡ O-Ring 2050 1
18 83-005020003 Body By Pass 1/4 G-F 1
18 83-005020026 Body By Pass 3/8 G-F 1
19 83-005060200 3/8 Gasket 1
20 83-001060129 ‡ O-Ring 2043 1
21 83-001060200 ‡ Seat 1
22 83-001160000 ‡ Ball 1
23 83-005100003 Ball Spring 1
24 83-005150009 Seat Union 1
25 83-005030200 M8 Nut 2
26 83-005170101 3/8G Plug 2
27 83-005060201 Gasket 1
83-005650200 ‡ Repair Kit
ADJUSTING
Start with the valve set at its lowest spring tension.
Raise pressure by turning adjusting knob clockwise until
pressure is at the desired position. Do not overtighten.
Open and close spray gun to be sure pressure is correct.
Raise or lower pressure by adjusting the knob.
Do not by-pass more than 5 minutes when by-passing to
the suction side of the pump.
24
2
23
22
21
20
1
2
3
4
5
27
6
26
19
6
14
16
17
16
18
13
12
2
15
25
7
9
10
11
8
26

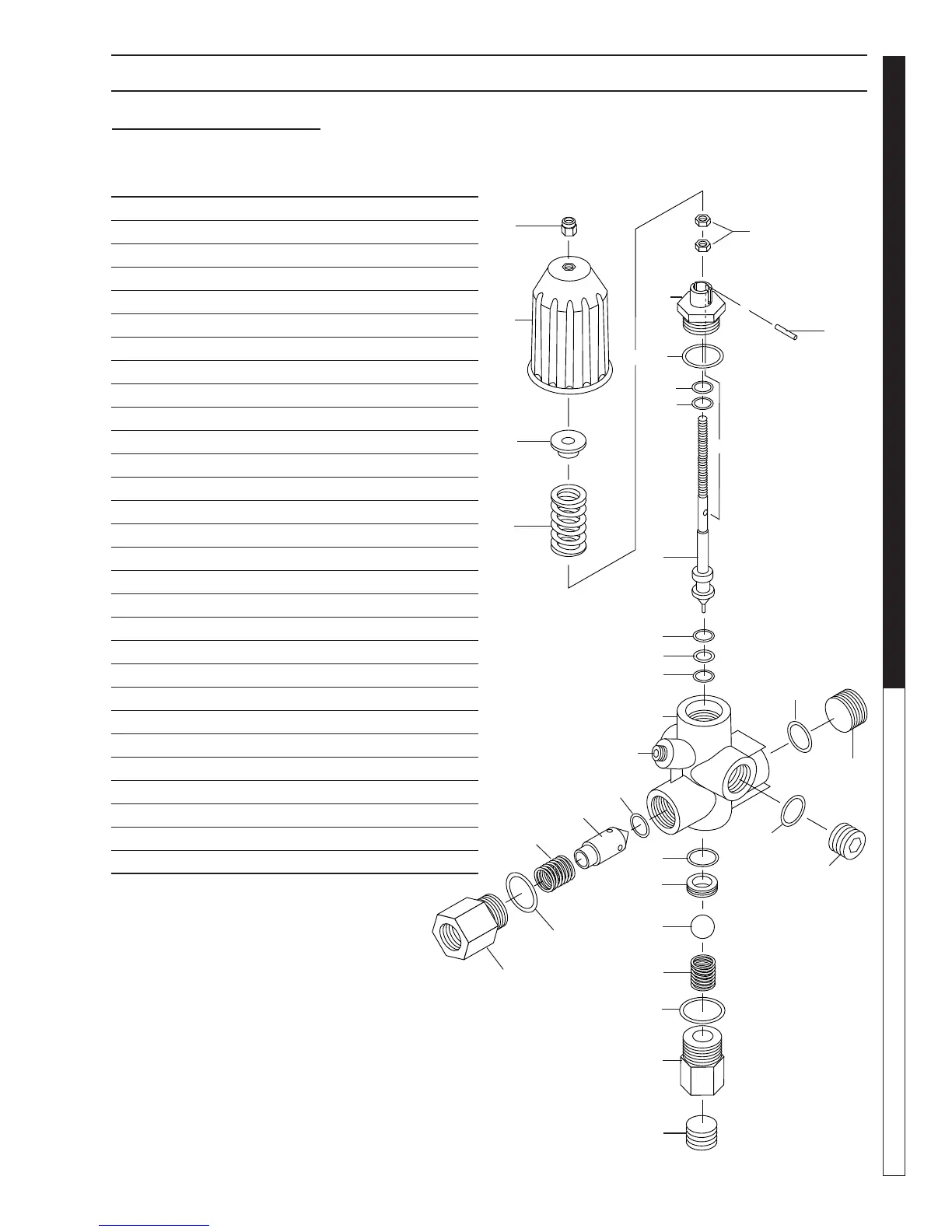

AR-AL UNLOADER EXPLODED VIEW AND PARTS LIST
