Shark BR Series User Manual

Shark BR 97-723 • REV. 11/06
OPERATOR’S MANUAL
PRESSURE WASHER
28
ITEM PART NO. DESCRIPTION QTY
1 70-020210 Crankcase 1
2 70-060200 Plunger Guide 3
3* See Kit Below Plunger Oil Seal 3
4* See Kits Below O-Ring Ø1.78 x 37.82 3
5* See Kits Below V Seal, Dia. 18mm 6
6* See Kit Below V Seal, Dia. 18mm H.P. 3
7* 70-120106 Pressure Ring 18mm 3
8* 70-030007 Support Ring 18mm 6
9* 70-030011 Intermediate Ring, 18mm 3
10 70-160120 Brass Plug, 3/4 1
11 70-060307 Copper Washer 3/4 1
12 70-160210 Manifold Housing 1
13* 70-060105 O-Ring Ø2.62 x 23.47 6
14* See Kit Below Valve Assembly 6
15* 70-000910 Teflon Ring 6
16 70-160110 Valve Plug 6
17 70-180133 Manifold Stud Bolt 8

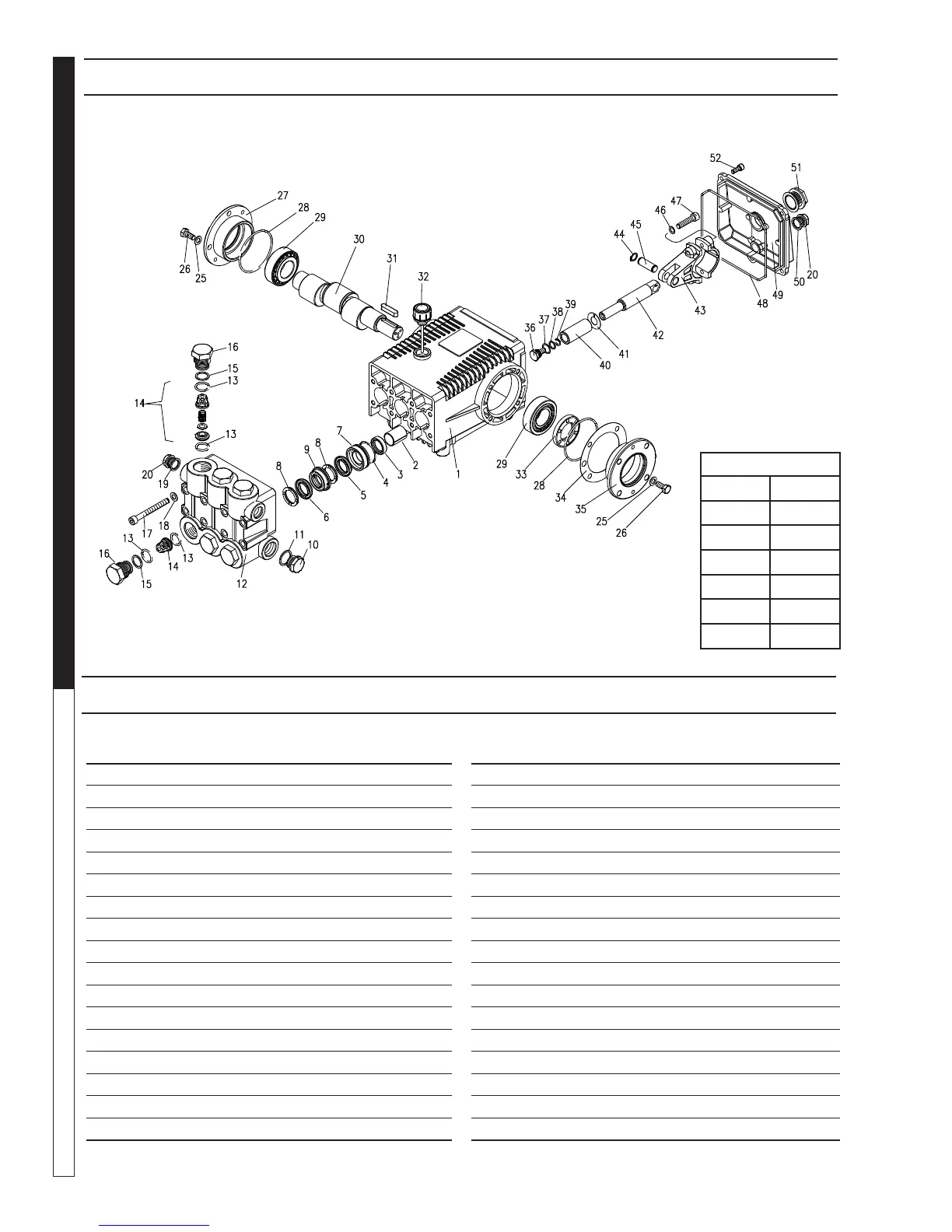

SX 5050 PUMP EXPLODED VIEW
TORQUE SPECS
ITEM # FT. LBS.
16 95
17 32
26 8
36 15
47 30
52 8
5-1438 SX5050-Right
SX 5050 PUMP PARTS LIST
ITEM PART NO. DESCRIPTION QTY
18 70-140301 Lock Washer 8
19 70-060306 Copper Washer 3/8 1
20 70-160117 Brass Plug 3/8 1
25 70-140001 Washer 8
26 70-180203 Hex Screw 8
27 70-050054 Closed Bearing Housing 1
28 70-060100 O-Ring Ø2.62 x 71.12 2
29 70-020004 Roller Bearing 2
30 70-000474 Crankshaft (5050) 1
31 70-020605 Crankshaft Key 1
32 70-160007 Oil Dip Stick 1
33 70-000100 Crankshaft Seal 1
34 70-030100 Shim 2
35 70-050053 Bearing Housing 1
36* 70-180001 Plunger Bolt 3
37* 70-140012 Copper Spacer 3
38* 70-060103 O-Ring Ø1.78x7.66 3
