Shark BR Series User Manual

Shark BR 97-723 • REV. 11/06
OPERATOR’S MANUAL
PRESSURE WASHER
26
ITEM PART NO. DESCRIPTION QTY
1 70-020210 Crankcase 1
2 70-060200 Plunger Guide 3
3* See Kit Below Plunger Oil Seal 3
4* 70-060108 O-Ring Ø1.78 x 31, 47 3
5* See Kit Below "V" Seal, Plunger 6
See Kit Below "V" Seal Plunger 6
6* 70-120107 Pressure Ring (GT 4035,
4040, 6035) 3
70-120108 Pressure Ring (GT 5030) 3
7* 70-030000 Support Ring (GT 4035,
4040, 6035) 6
70-030001 Support Ring (GT 5030) 6
8* 70-030012 Intermed. Ring (GT 4035,
4040, 6035) 3
70-030013 Intermed. Ring (GT 5030) 3
9 70-160120 Brass Plug, 1/2" 1
10 70-060307 Copper Washer 1/2" 1
11 70-160217 Manifold Head 1
12* 70-060119 O-Ring Ø2.62 x 17.13 6
13* See Kit Below Valve Assembly 6
14* 70-060165 O-Ring Ø2.62 x 20.29 6
ITEM PART NO. DESCRIPTION QTY
15 70-160130 Valve Plug 6
16 70-180136 Manifold Stud Bolt 8
17 70-140301 Washer 8
18 70-060306 Copper Washer 3/8" 1
19 70-160117 Brass Plug 3/8" 1
24 70-140001 Washer 8
25 70-180203 Hexagonal Screw 8
26 70-050054 Closed Bearing Housing 1
27 70-060100 O-Ring Ø2.62 x 71.12 2
28 70-020004 Roller Bearing, Tapered 2
29 70-000487 Crankshaft (GT 4040,
5030, 6035) 1
70-000488 Crankshaft (GT 4035)
30 70-020604 Crankshaft Key 1
31 70-160007 Oil Dip Stick 1
32 70-000100 Crankshaft Seal 1
33 70-030100 Shim 2
34 70-050053 Bearing Housing 1
35* 70-180000 Plunger Bolt 3
36* 70-140013 Copper Spacer 3
37* 70-060102 O-Ring Ø1.78 x10.82 3
5-1424 ST 4035 Right
TORQUE SPECS
Item # Ft.-Lbs.
15 75
16 32
25 8
35 15
46 30
51 8

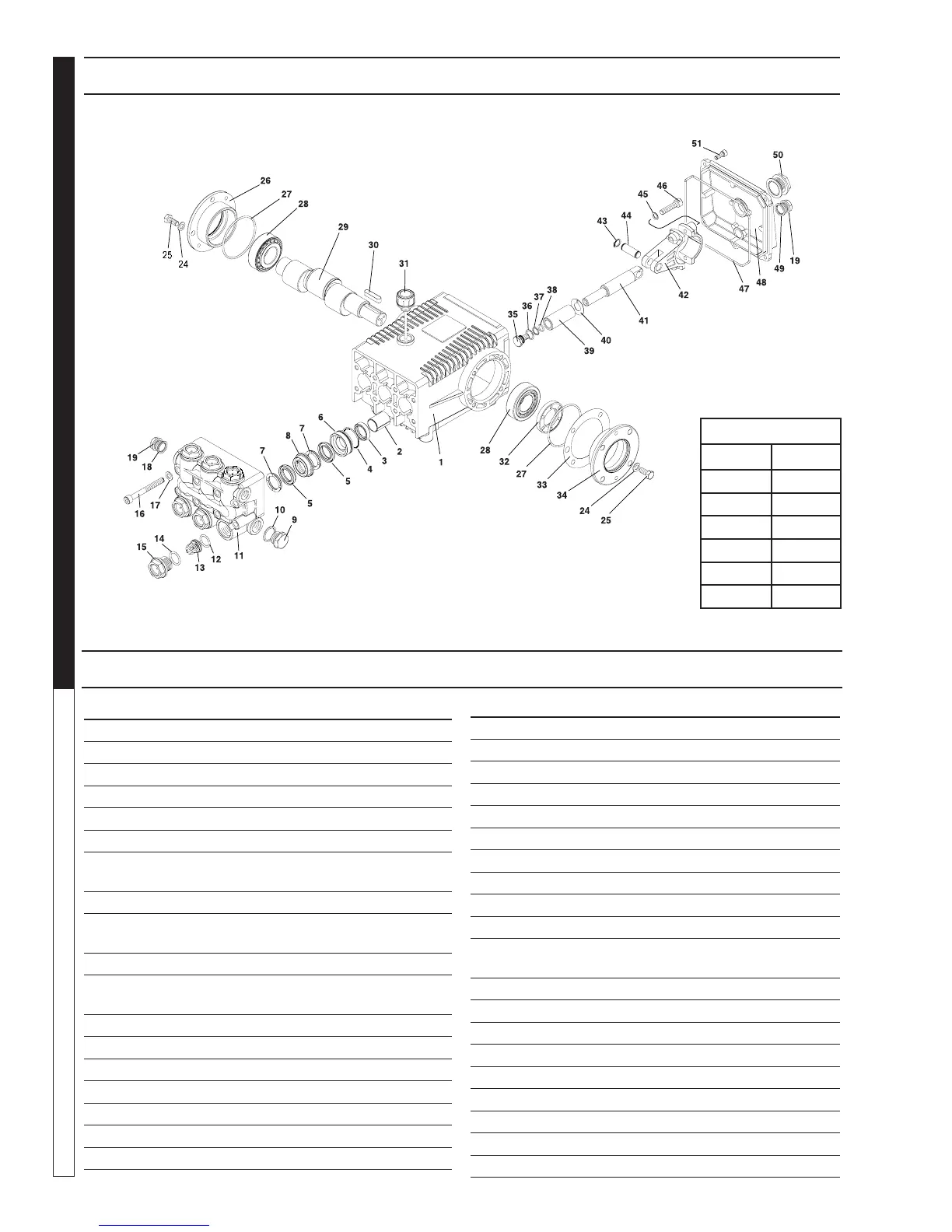

ST 4035 PUMP EXPLODED VIEW
ST 4035 PUMP PARTS LIST
