Shark BR Series User Manual

Shark BR 97-723 • REV. 11/06
OPERATOR’S MANUAL
PRESSURE WASHER
24
ITEM PART NO. DESCRIPTION QTY
1 70-020209 Crankcase 1
2 70-060201 Plunger Guide 3
3* Kit 70-08 Plunger Oil Seal 3
4* 70-060107 O-Ring Ø1.78 x 31,47 3
5* Kits 70-01,03 "V" Seal (4035) 6
Kits 70-02,04 "V" Seal (4030, 5030) 6
6* 70-120106 Pressure Ring 18mm
(4035) 3
70-120105 Pressure Ring 20mm
(4030, 5030) 3
7* 70-030007 Support Ring 18mm
(4035) 6
70-030009 Support Ring 20mm
(4030, 5030) 6
8* 70-030011 Intermed. Ring 18mm
(4035) 3
70-030010 Intermed. Ring 20mm
(4030, 5030) 3
9 70-160120 Brass Plug 1/2" 1
10 70-060307 Copper Washer 1/2" 1
11 70-160216 Manifold Head 1
ITEM PART NO. DESCRIPTION QTY
12* 70-060119 O-Ring Ø2.62 x 17.13 6
13* Kit 70-07 Valve Assembly 6
14* 70-060165 O-Ring Ø2.62 x 20.29 6
15 70-160130 Valve Plug 6
16 70-180103 Manifold Stud Bolt 8
17 70-140001 Washer 16
18 70-060306 Copper Washer 3/8 1
19 70-160117 Brass Plug 3/8 1
24 70-180203 Hexagonal Screw 8
25 70-050051 Closed Bearing Housing 1
26 70-060163 O-Ring Ø1.78 x 60.05 2
27 70-020003 Tapered Roller Bearing 2
28 70-000485 Crankshaft (5030) 1
70-000486 Crankshaft (4030,4035/H) 1
29 70-020604 Crankshaft Key 1
30 70-160006 Oil Dip Stick 1
31 70-000102 Crankshaft Seal 1
32 70-030102 Shim 2
33 70-050050 Bearing Housing 1
34* 70-180001 Plunger Bolt 3
5
4
3
2
1
5
7
8
7
6
12
13
14
15
11
9
10
16
17
18
19
15
14
12
25
26
27
28
29
30
24
17
34
36
37
38
39
40
41
42
43
35
44
45
27
31
26
32
33
17
24
51
50
49
48
47
46
13
TORQUE
SPECS
Item # Ft.-lbs
15 75
16 30
24 8
34 9
45 13
51 11

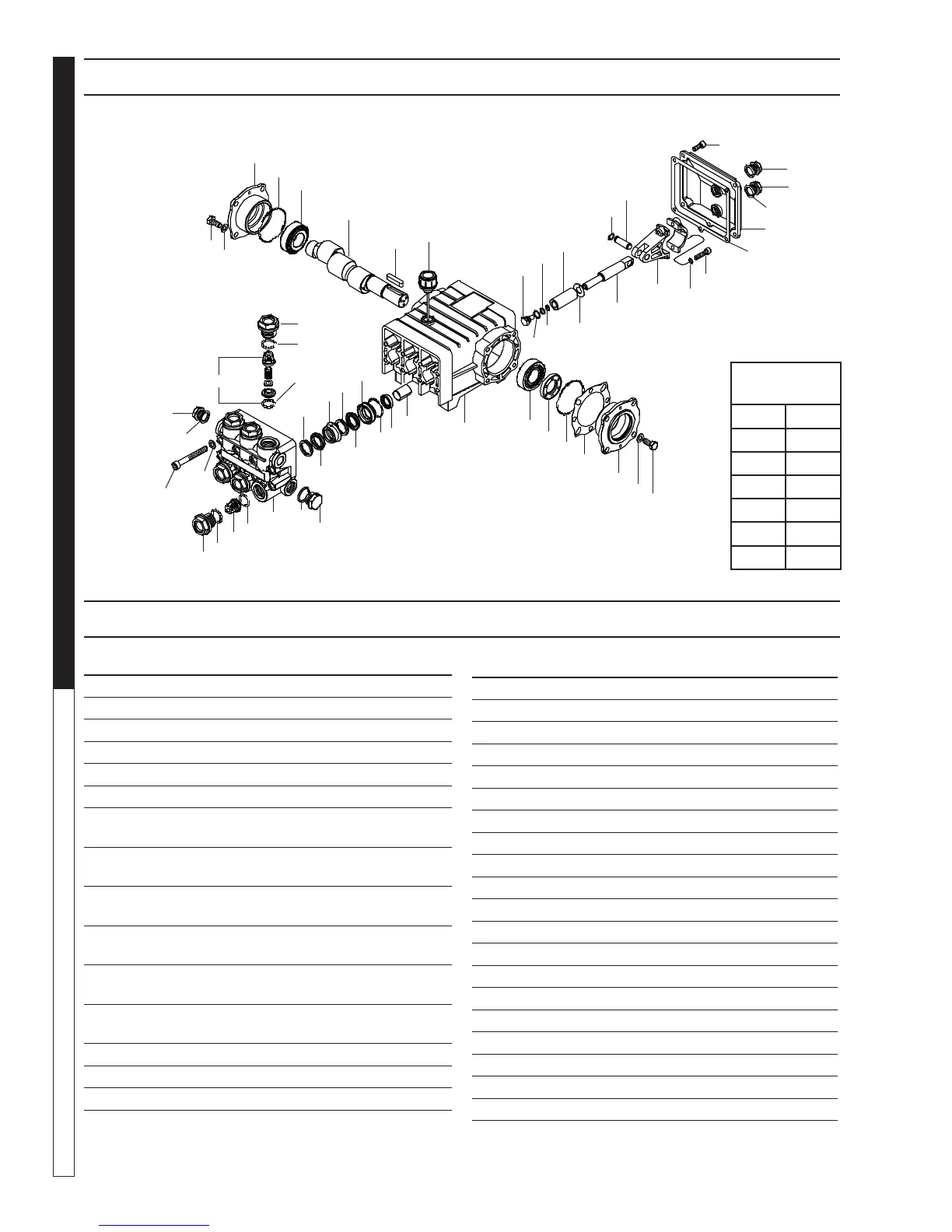

SM SERIES PUMP EXPLODED VIEW
5-1412 SM 3540
5-1420 SM 4035
5-1415 SM 5030
SM SERIES PUMP PARTS LIST
