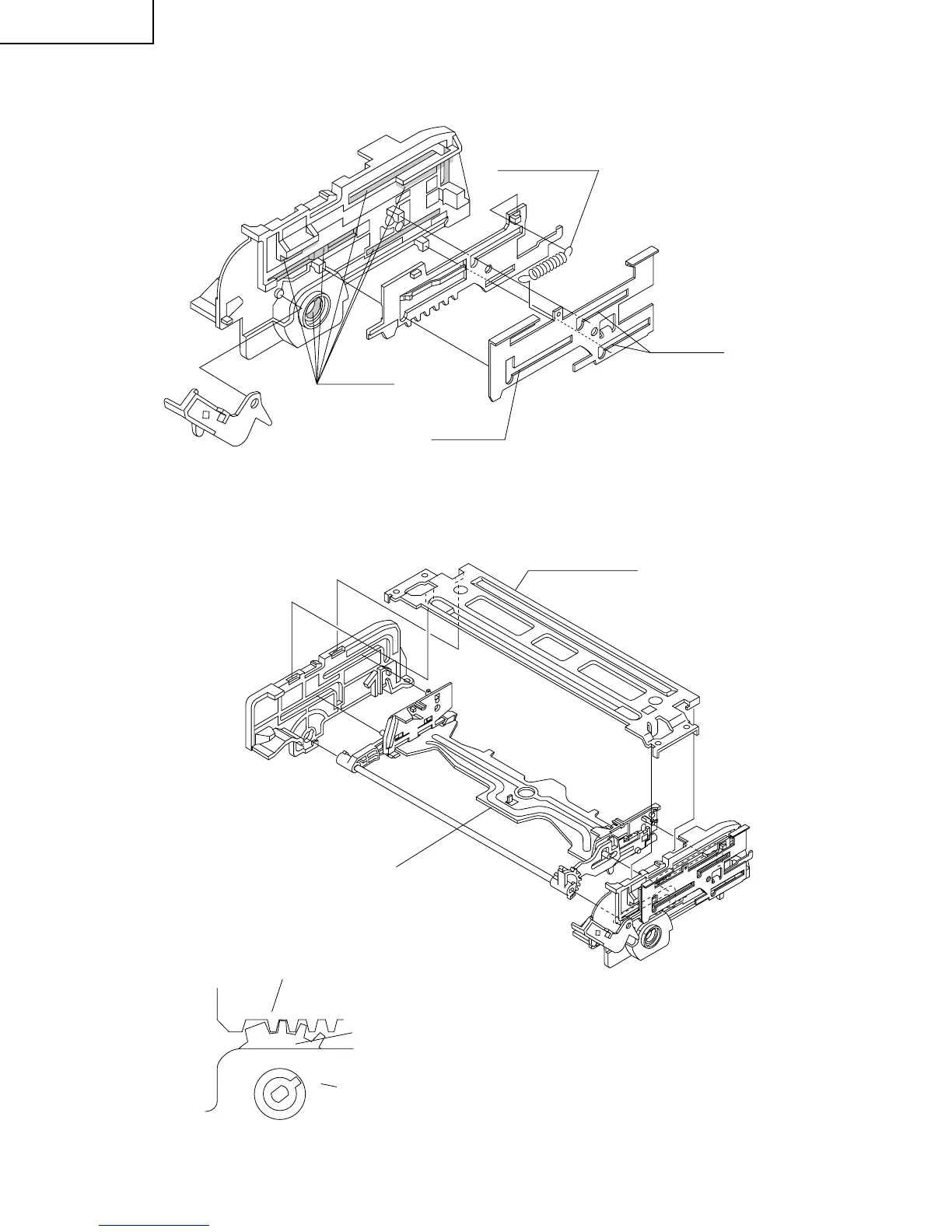

ASSEMBLY OF CASSETTE HOUSING
1. Drive Gear and R Drive angle ass’y
MSPRT0381AJFJ
Apply grease
Apply grease
Apply grease
Figure 1-47.
2. Synchro Gear, Drive Gear L and Drive Gear R
LANGF9592AJFW
Top surface should be free from scratches or soil.
Drive angle
Drive gear R
Frame
Figure 1-48.
